Operation CHARM
: Car repair manuals for everyone.
Home
>>
Acura
>>
2003
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
Seat Temperature Element

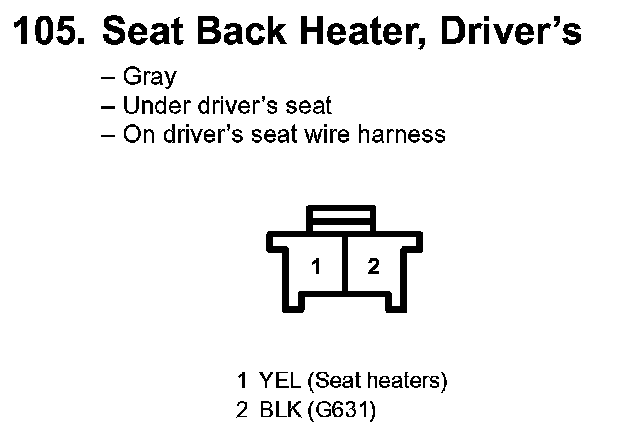

105. Seat Back Heater, Driver's:

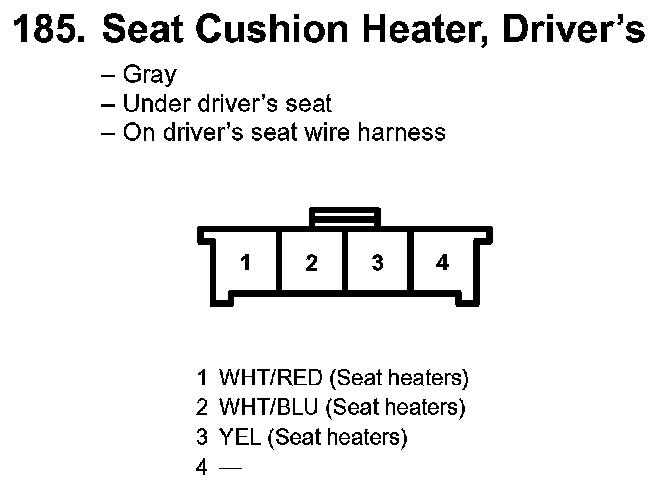

185. Seat Cushion Heater, Driver's:

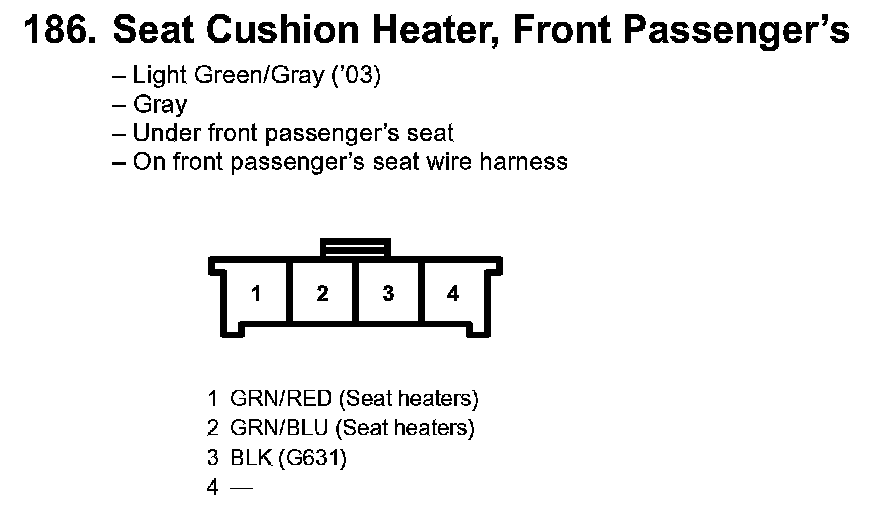

186. Seat Cushion Heater, Front Passenger's:
