Seat Temperature Switch
Seat Temperature Switch

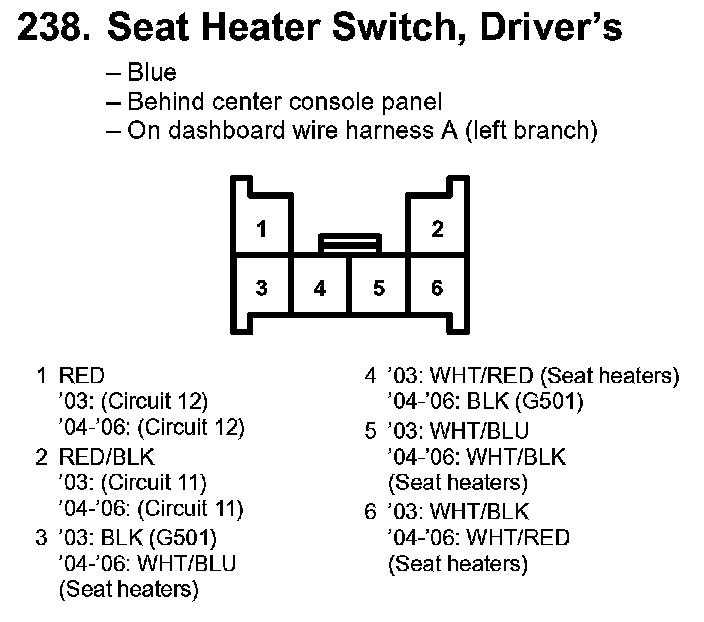

238. Seat Heater Switch, Driver's:

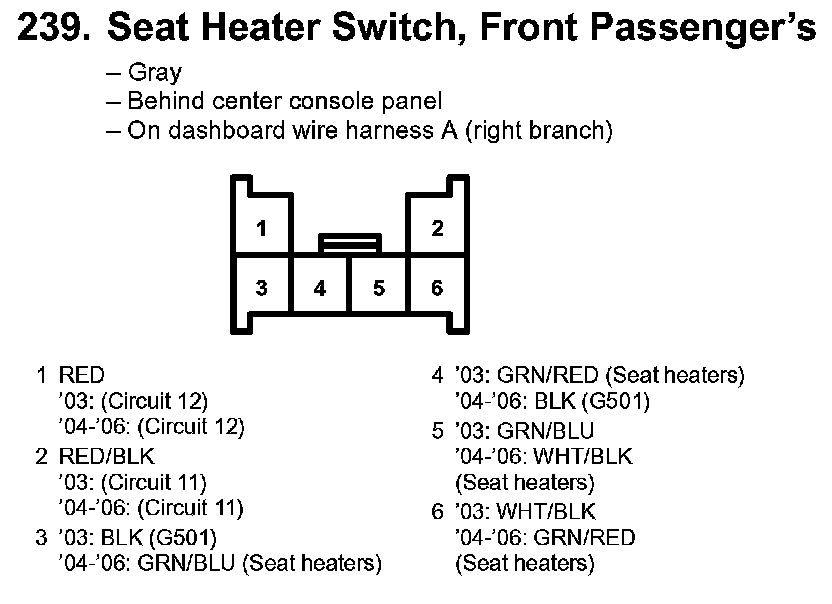

239. Seat Heater Switch, Front Passenger's:
