Console Accessory Power Socket Subharness
Console Accessory Power Socket Subharness

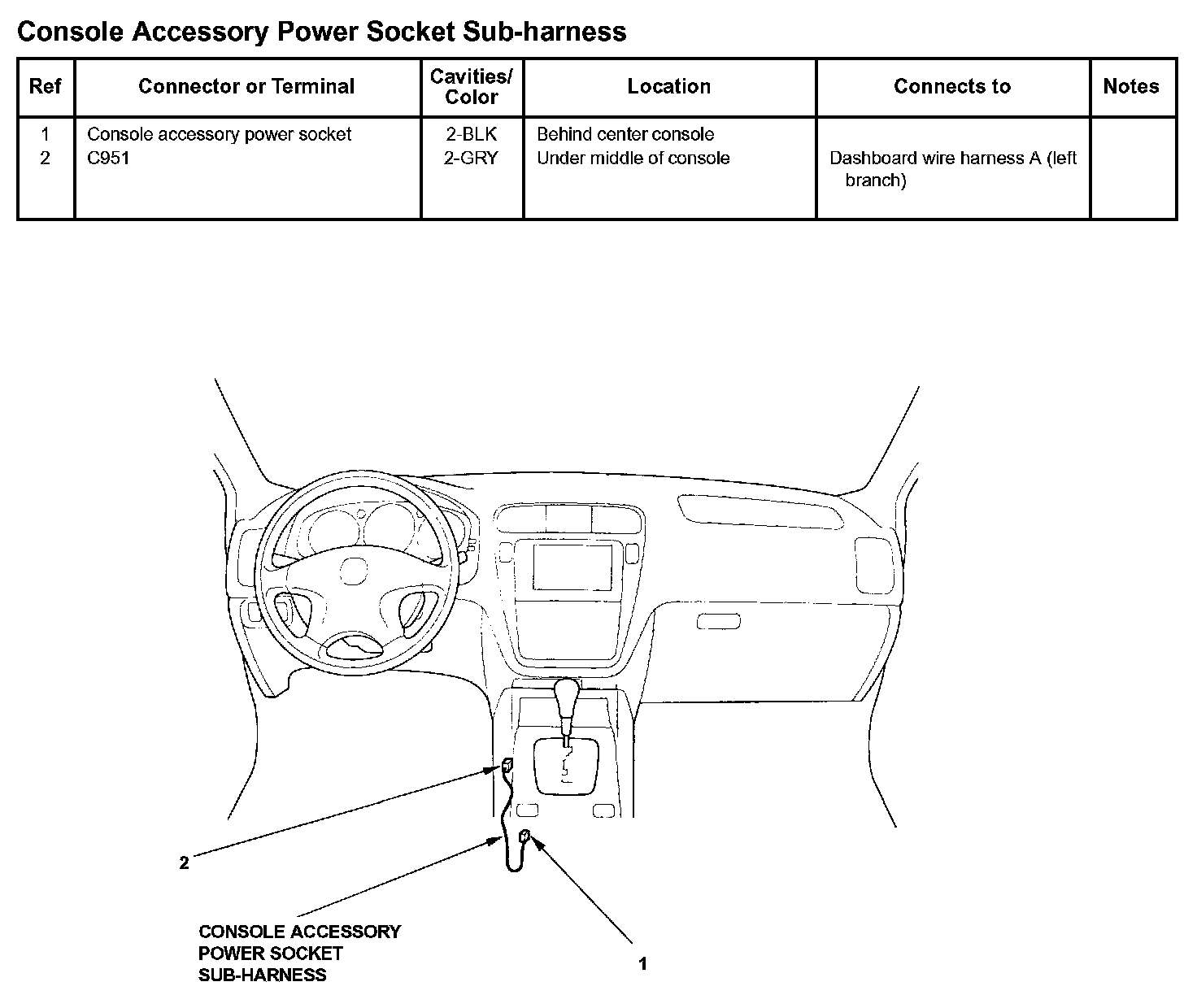

Console Accessory Power Socket Sub-Harness:
