Under-Hood Fuse/Relay Box

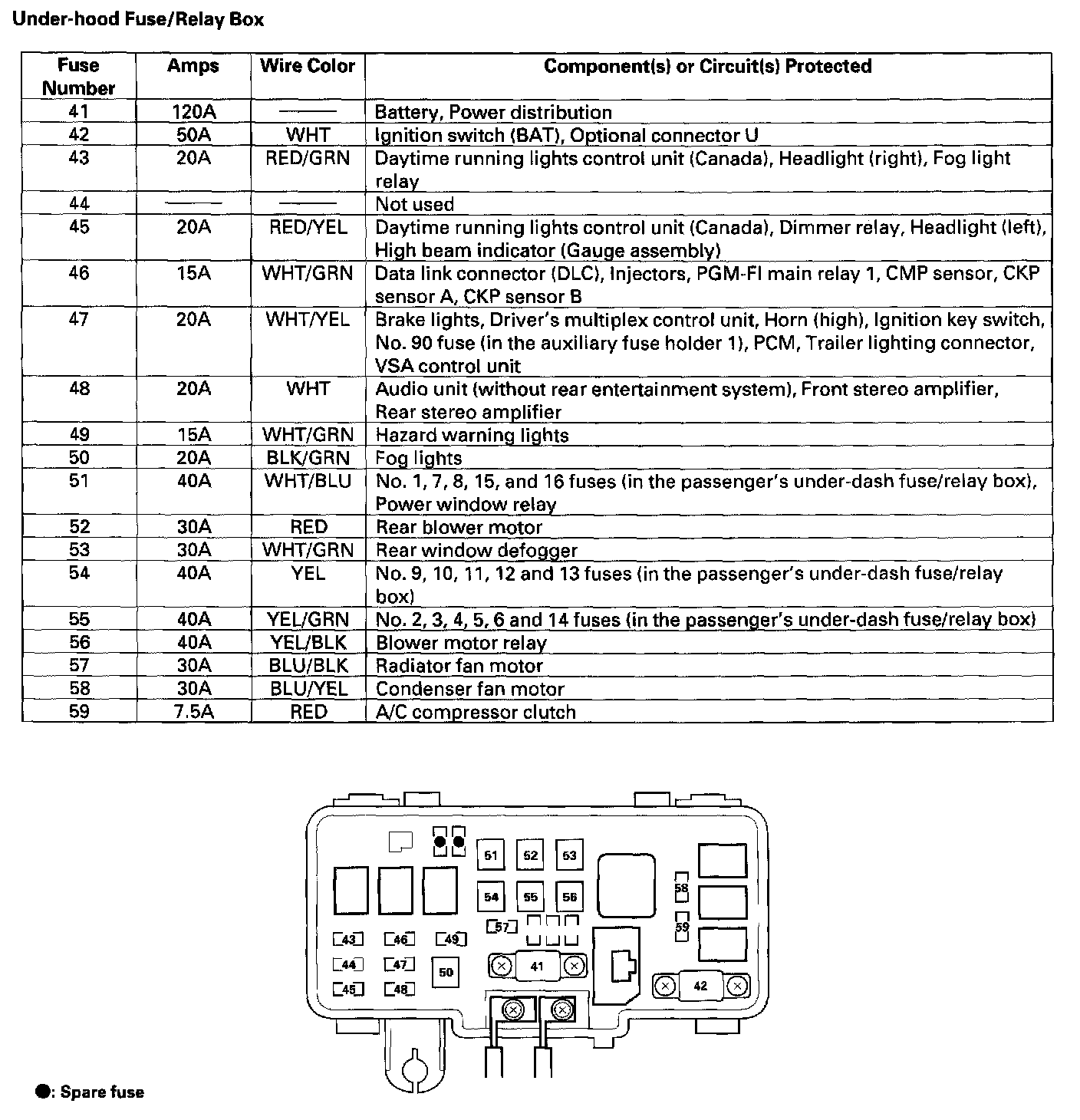

Under-hood Fuse/Relay Box:

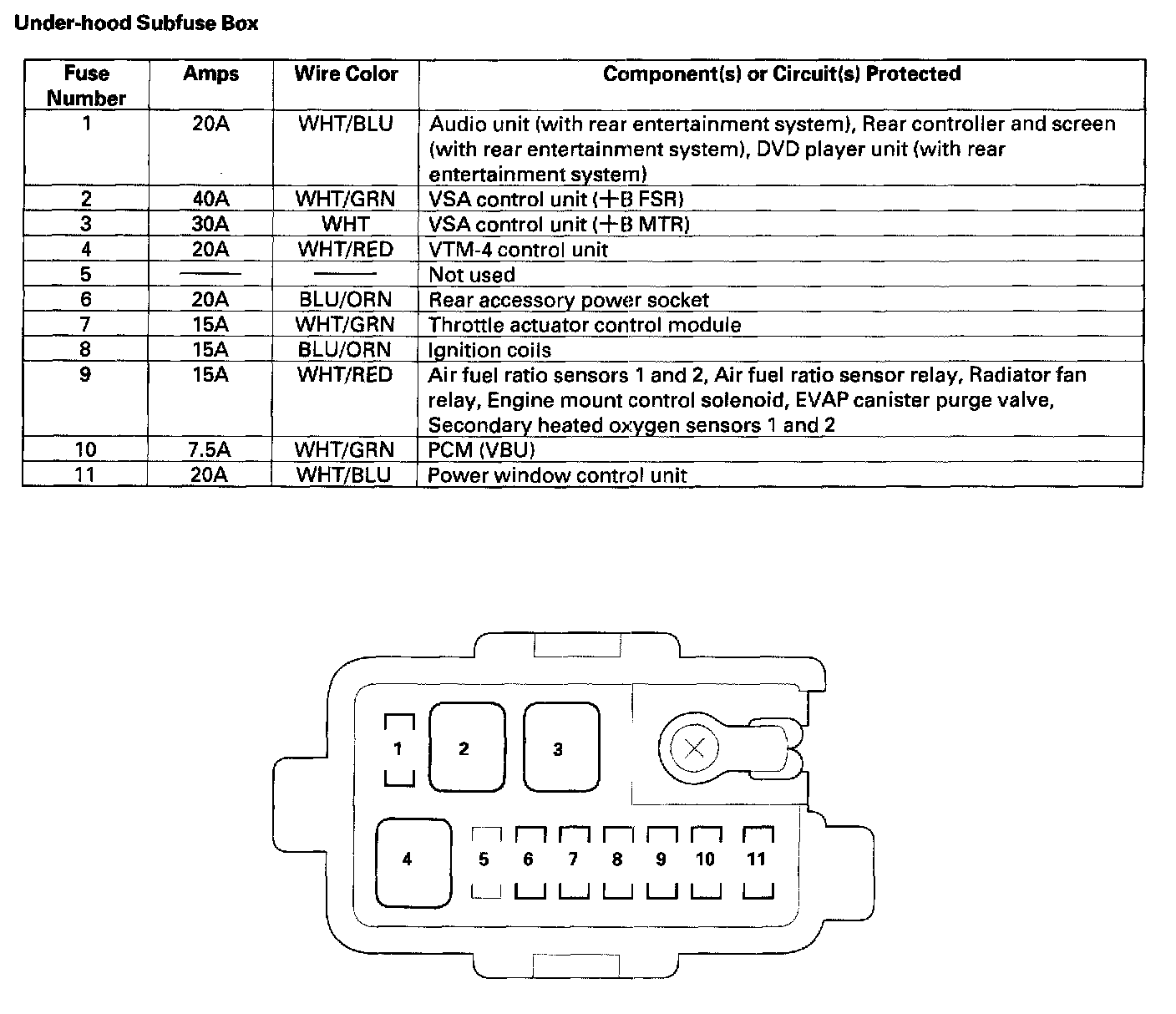

Under-hood Subfuse Box:

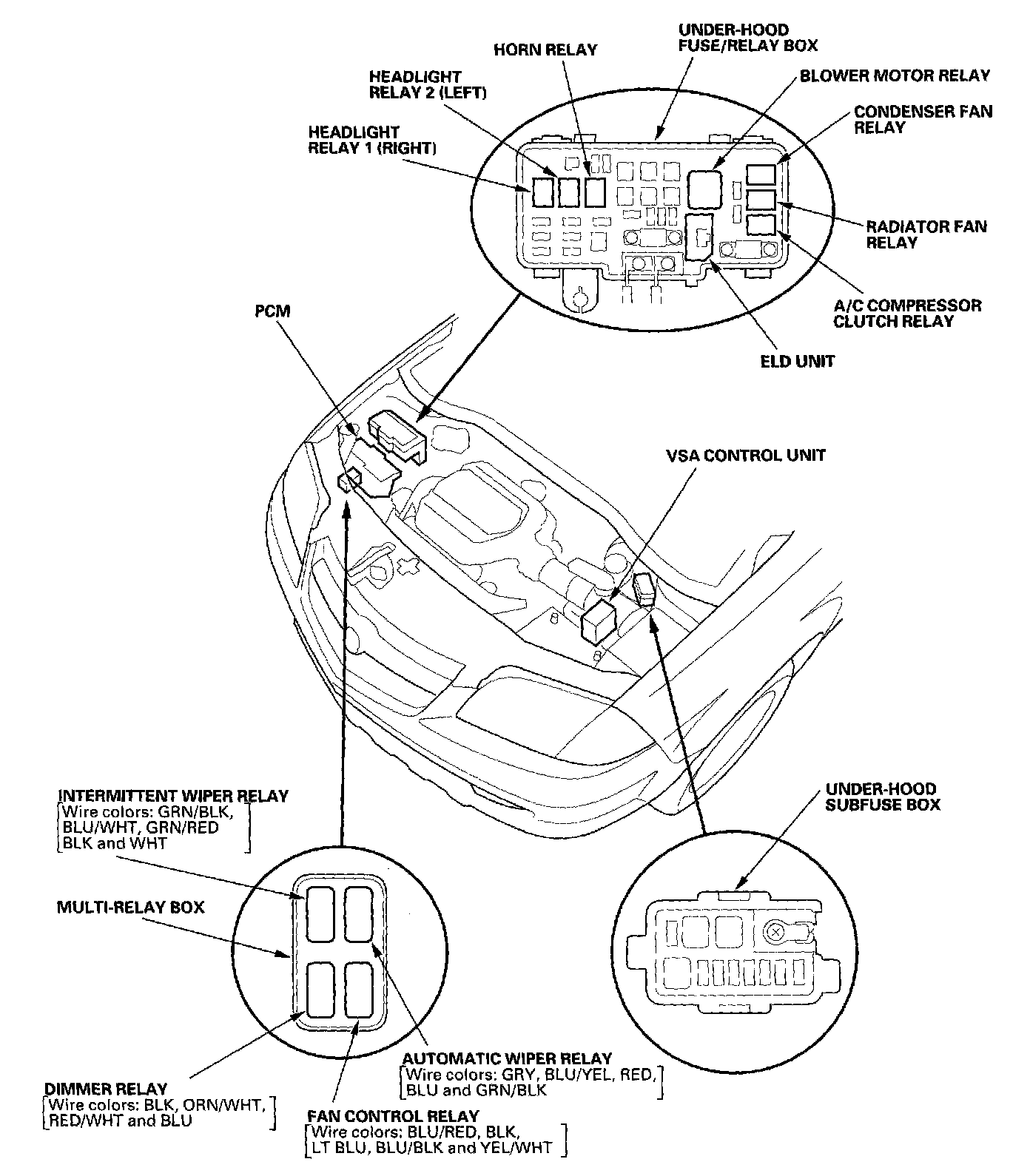

Relay And Control Unit Locations - Engine Compartment:

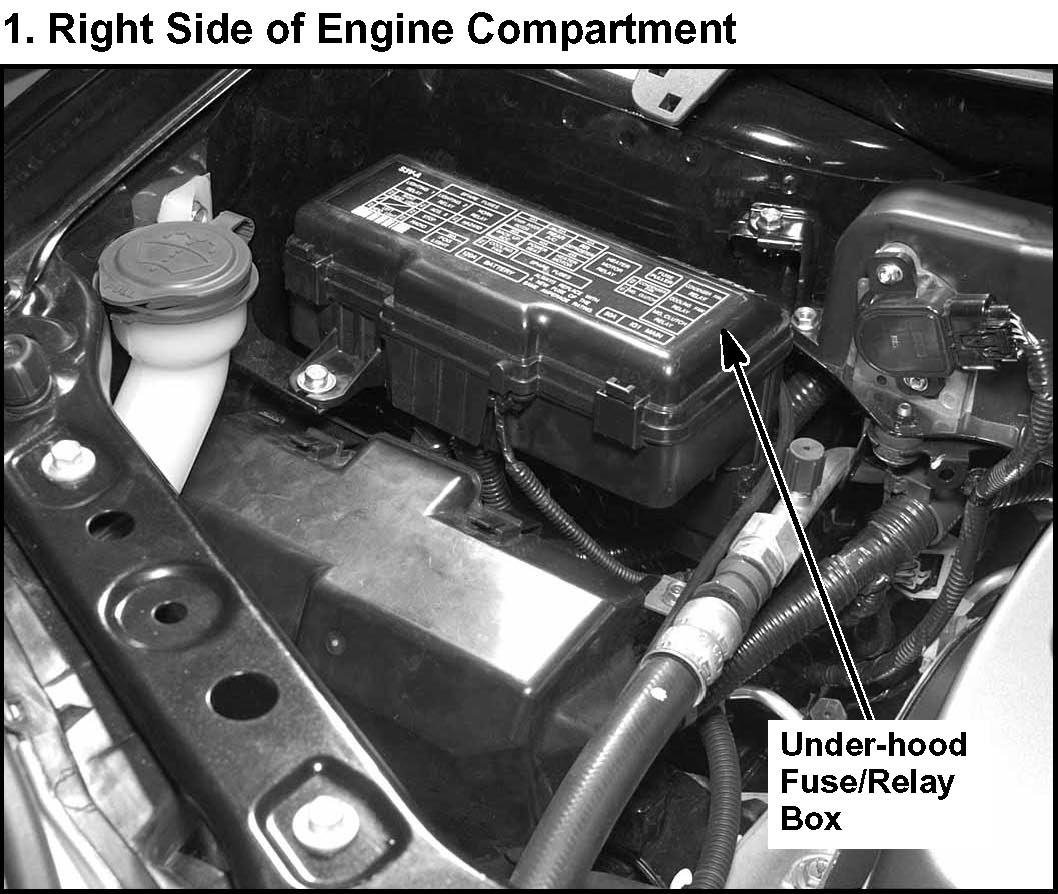

1. Right Side of Engine Compartment:

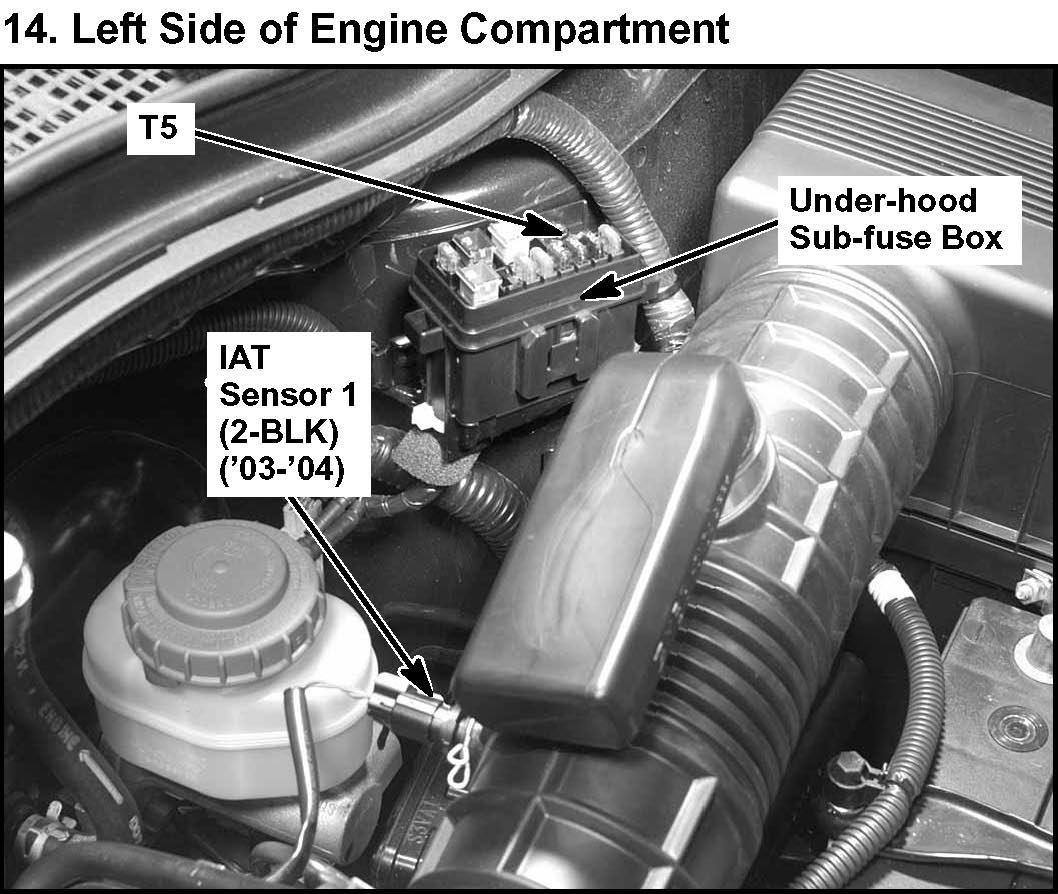

14. Left Side of Engine Compartment:
