Driver's Under-Dash Fuse/Relay Box

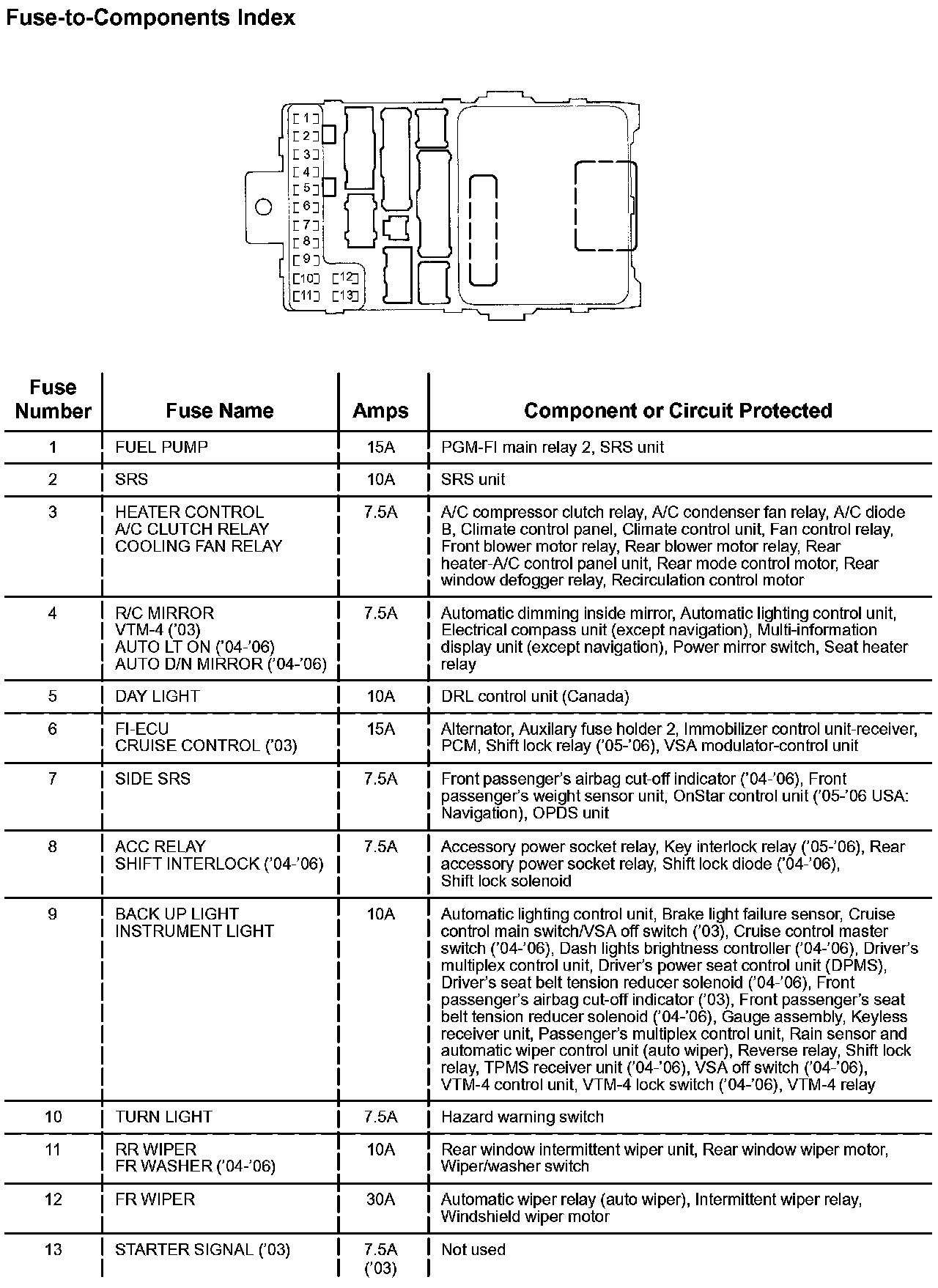

Driver's Under-dash Fuse/Relay Box:



Driver's Under-dash Fuse/Relay Box:



Starting System Component Location Index:



Relay And Control Unit Locations - Dashboard:
