IAT Sensor 1 Replacement

IAT Sensor 1 Replacement

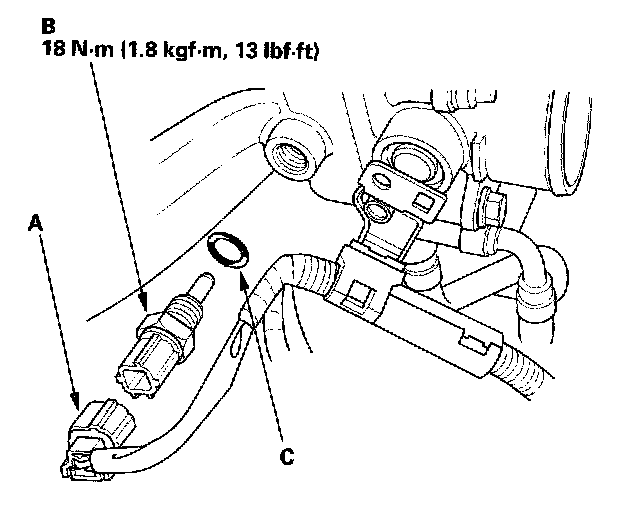

1. Disconnect the IAT sensor 1 2P connector (A).
2. Remove the IAT sensor 1 (B).
3. Install the sensor in the reverse order of removal with a new O-ring (C).
