Acura
>>
2003
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Locations
>>
Connector Locations
Connector Locations

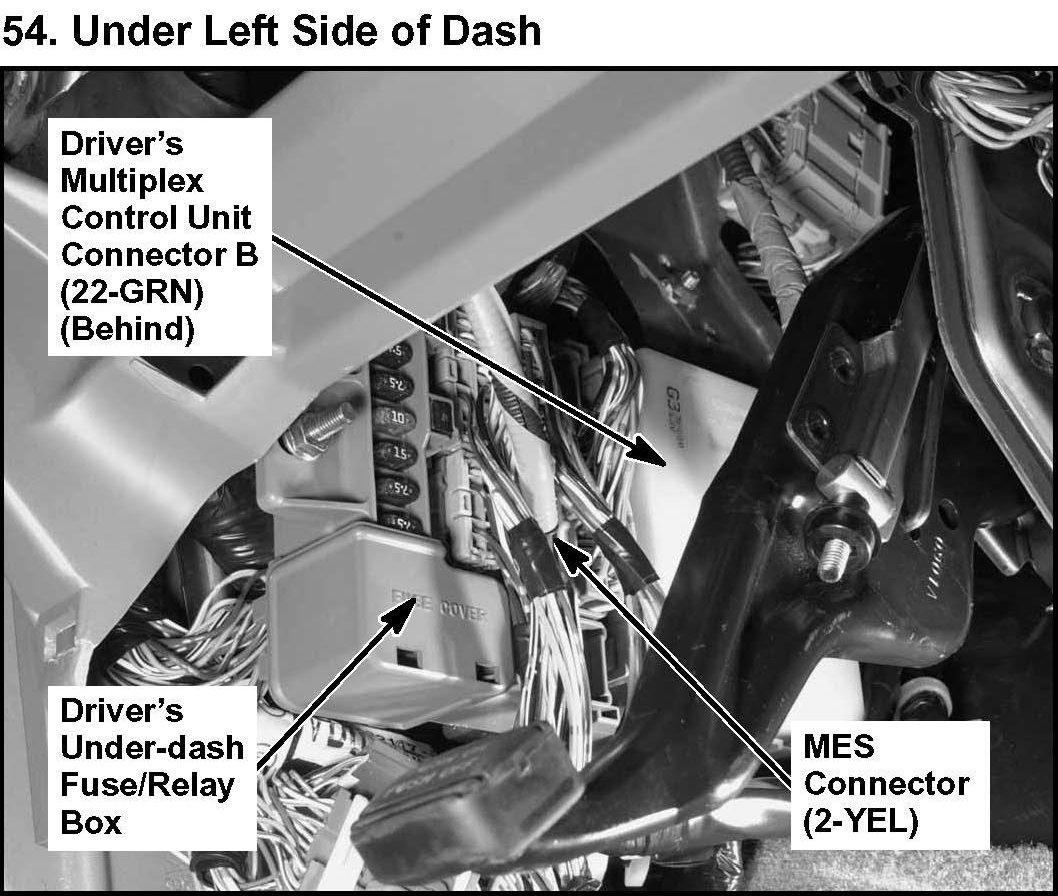

54. Under Left Side of Dash:
