Rear A/F Sensor Replacement

Rear A/F Sensor Replacement

Special Tools Required
O2 sensor socket wrench, 07LAA-PT50101

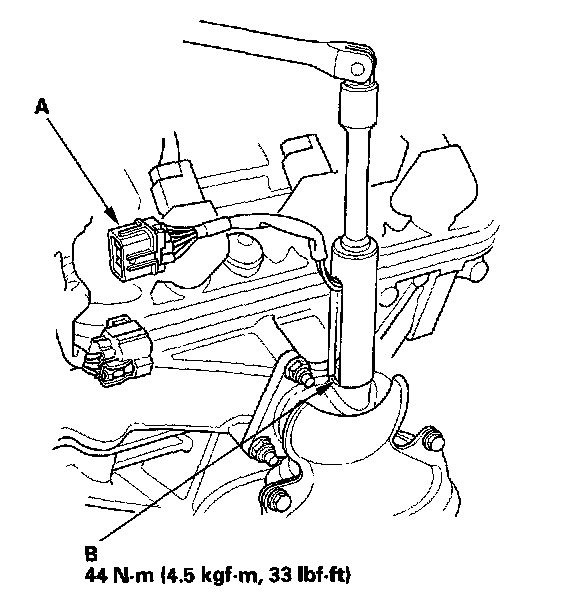

1. Disconnect the rear A/F sensor 8P connector (A), then remove the rear A/F sensor (B).
2. Install the rear A/F sensor in the reverse order of removal.
