Rear Secondary HO2S Replacement

Rear Secondary HO2S Replacement

Special Tools Required
O2 sensor socket wrench, 07LAA-PT50101

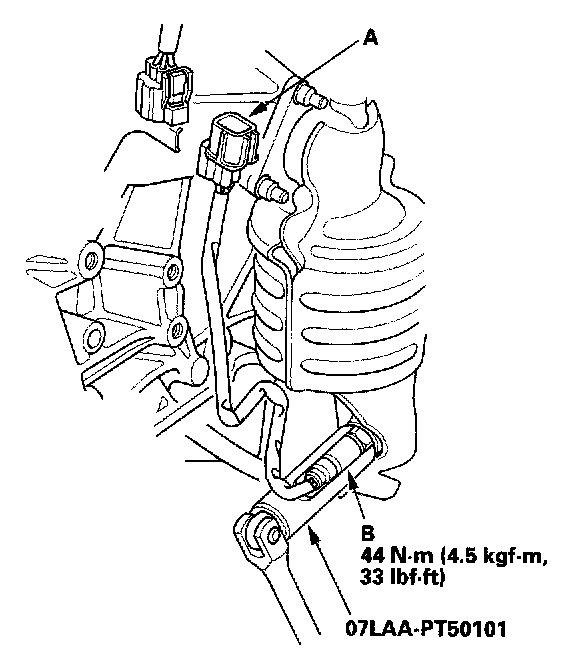

1. Disconnect the rear secondary HO2S 4P connector (A), then remove the rear secondary HO2S (B).
2. Install the rear secondary HO2S in the reverse order of removal.
