ECM/PCM Terminal Values

PCM Inputs And Outputs At Connector A:

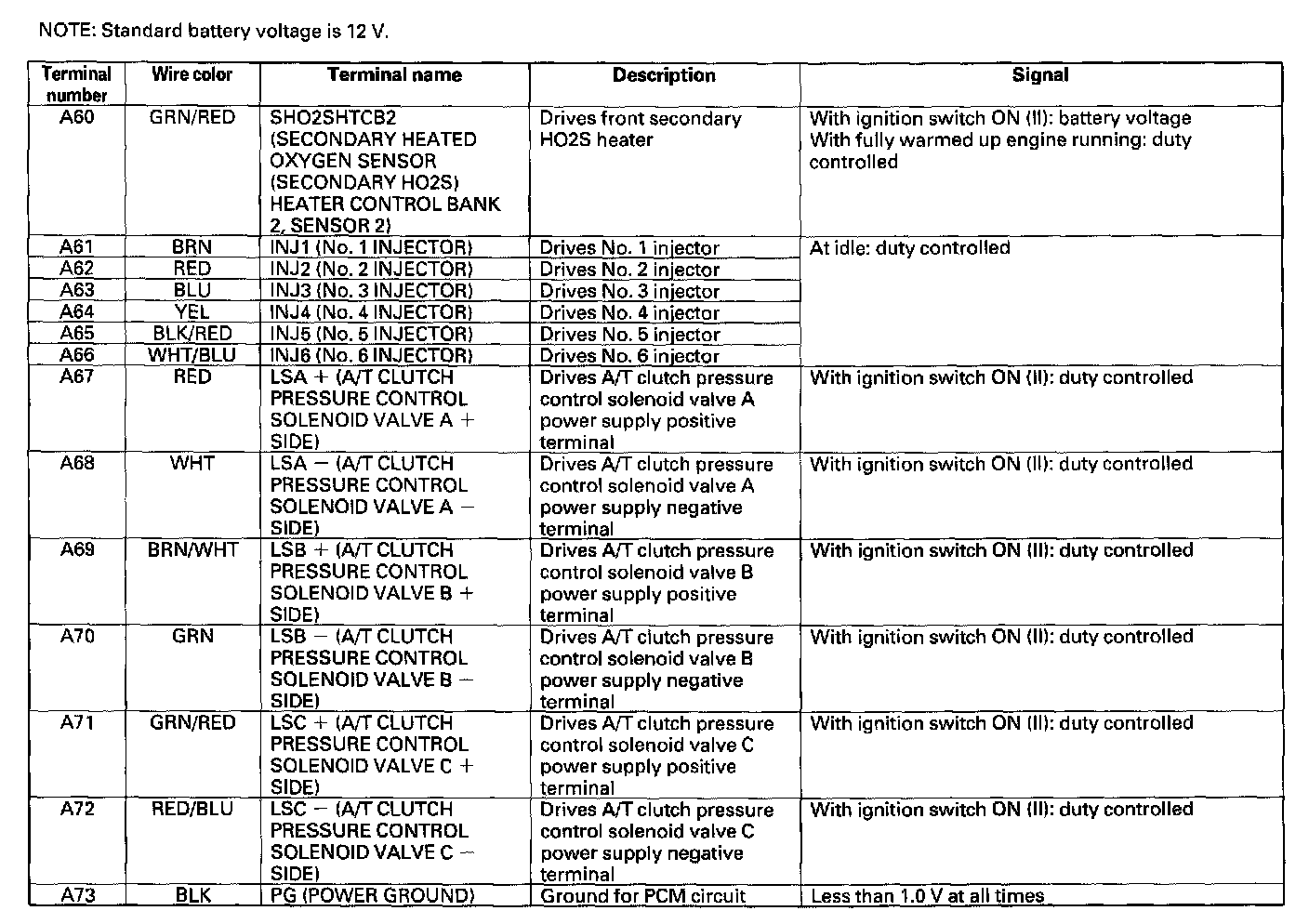

PCM Inputs And Outputs At Connector A (31P) Part 1:

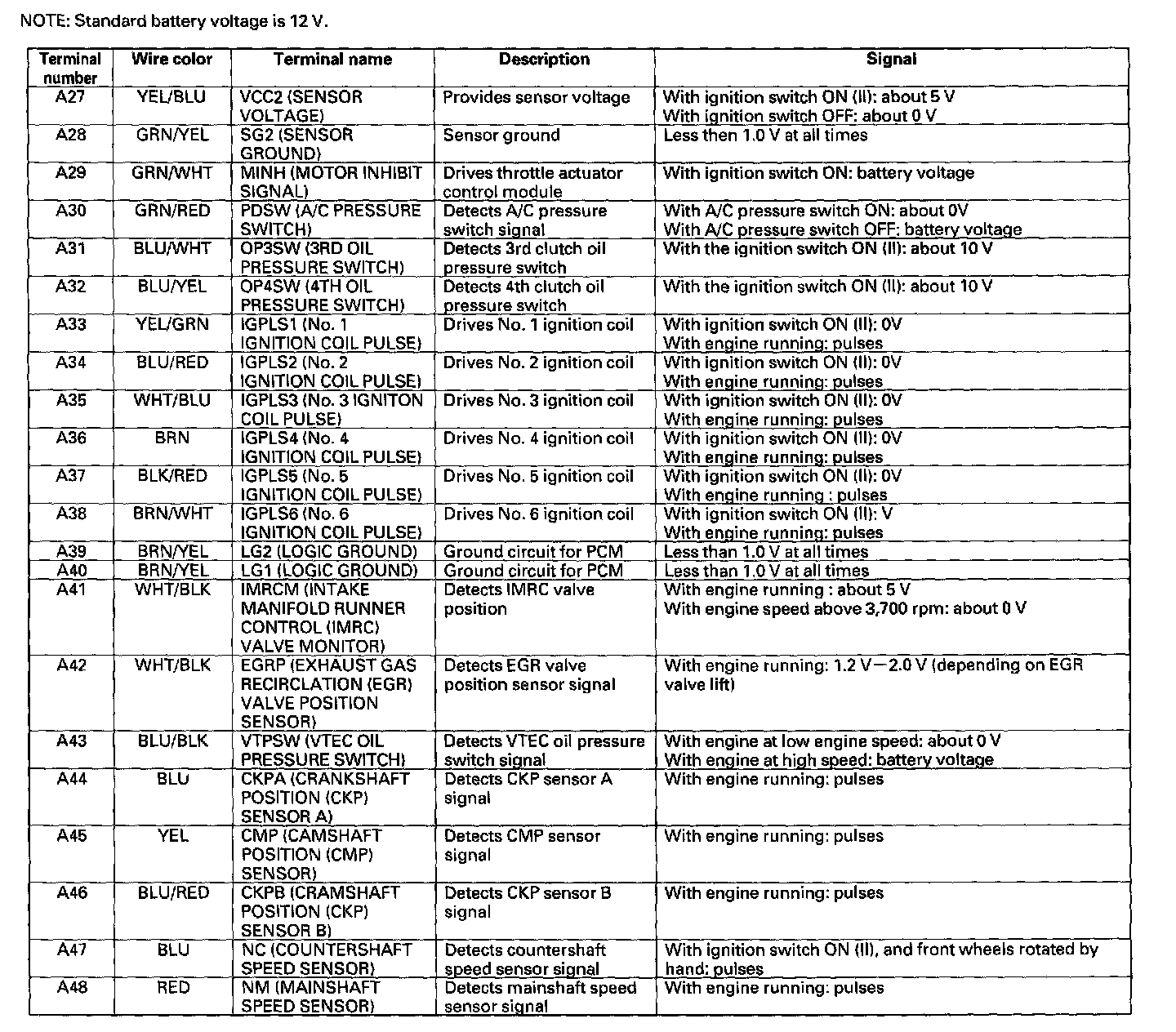

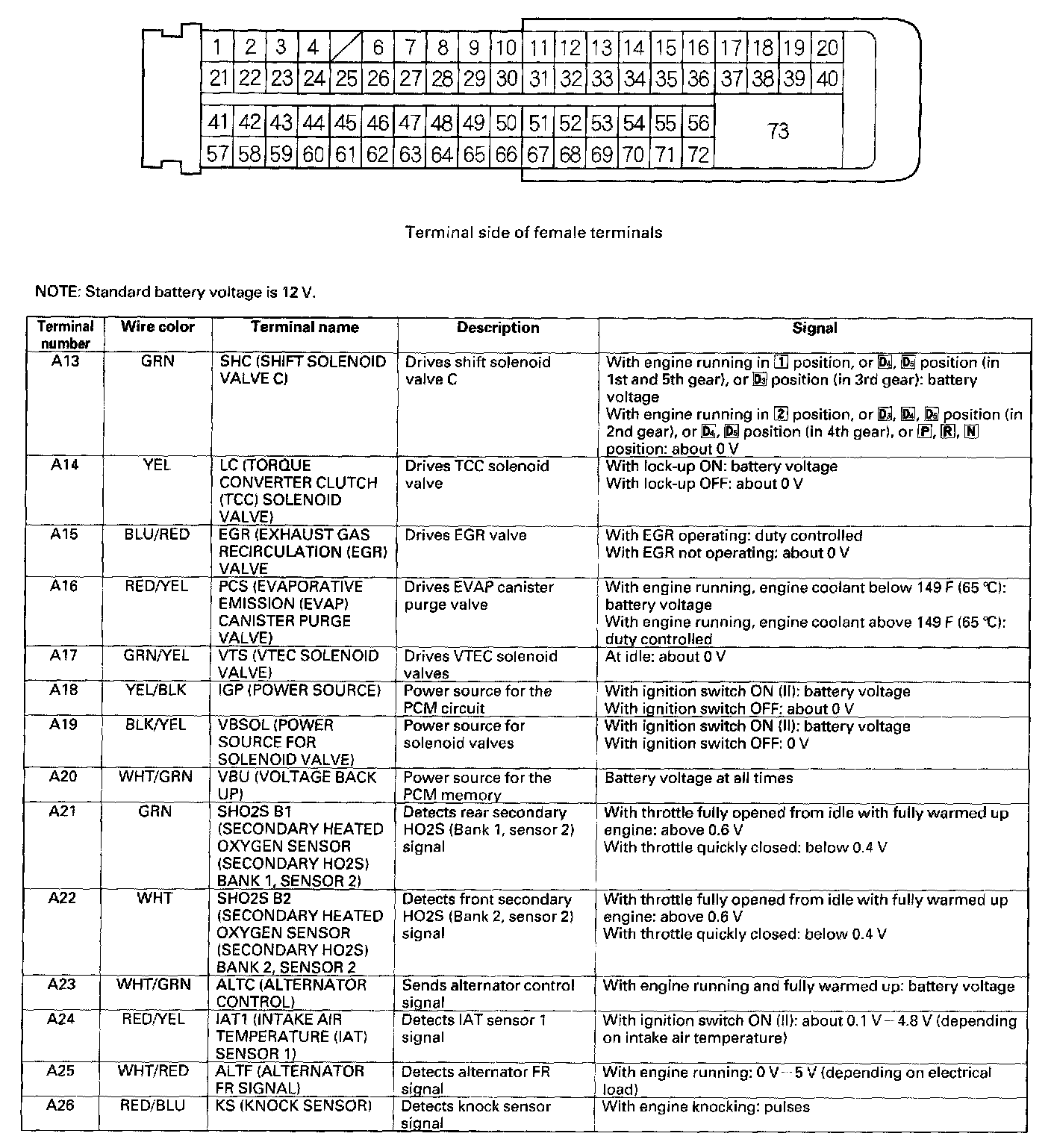

PCM Inputs And Outputs At Connector A (31P) Part 2:

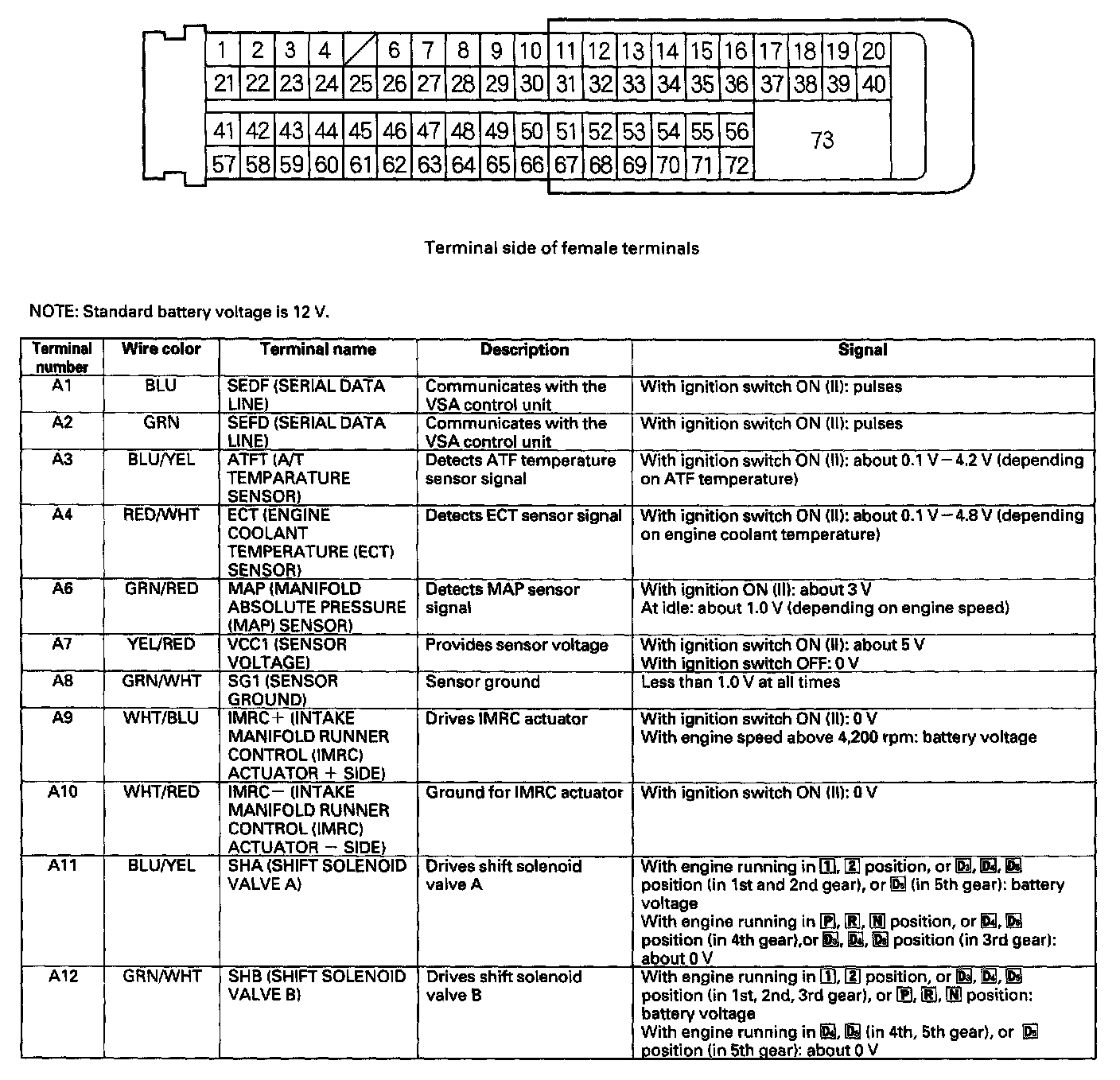

PCM Inputs And Outputs At Connector A Part 1:

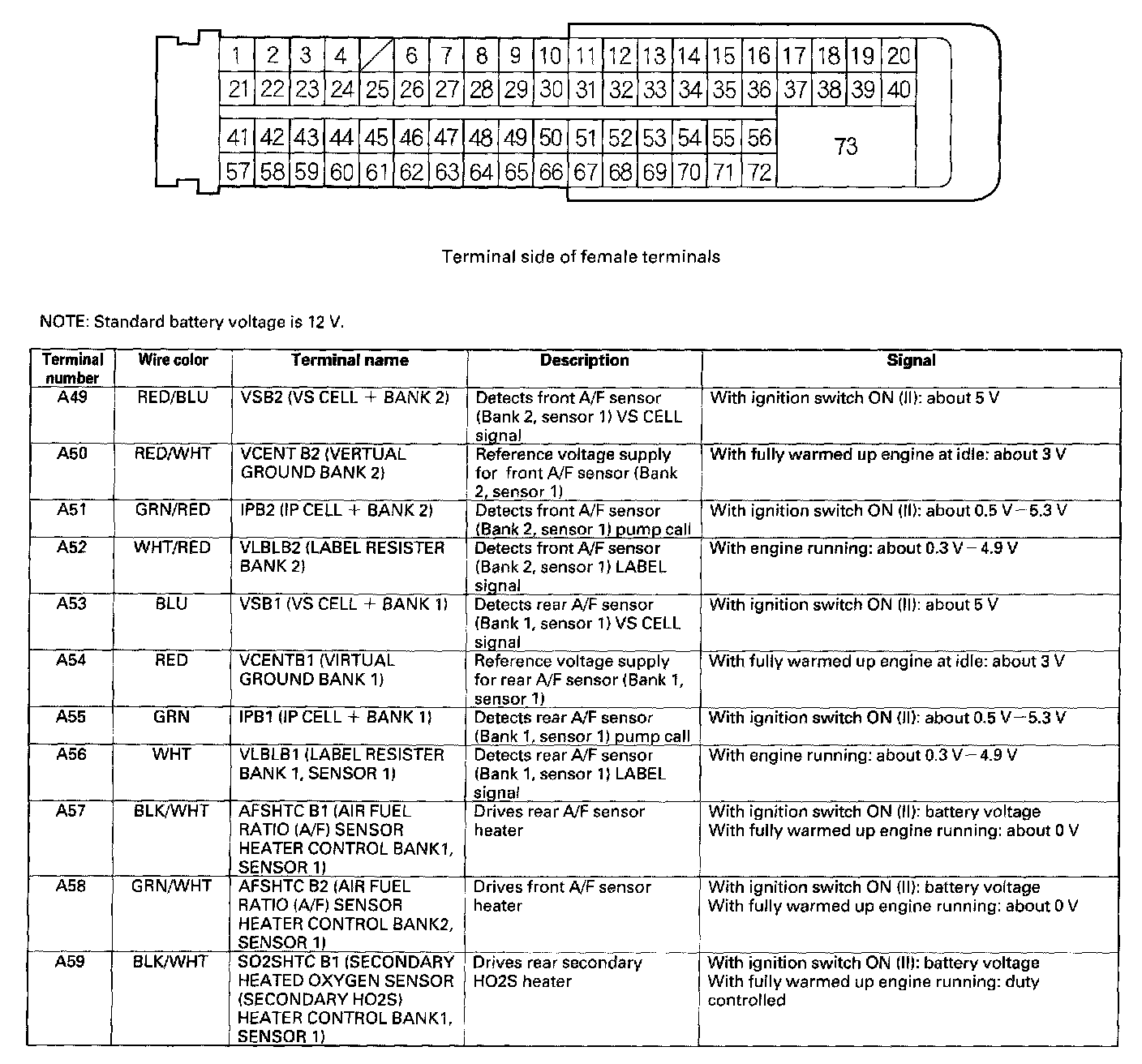

PCM Inputs And Outputs At Connector A Part2:

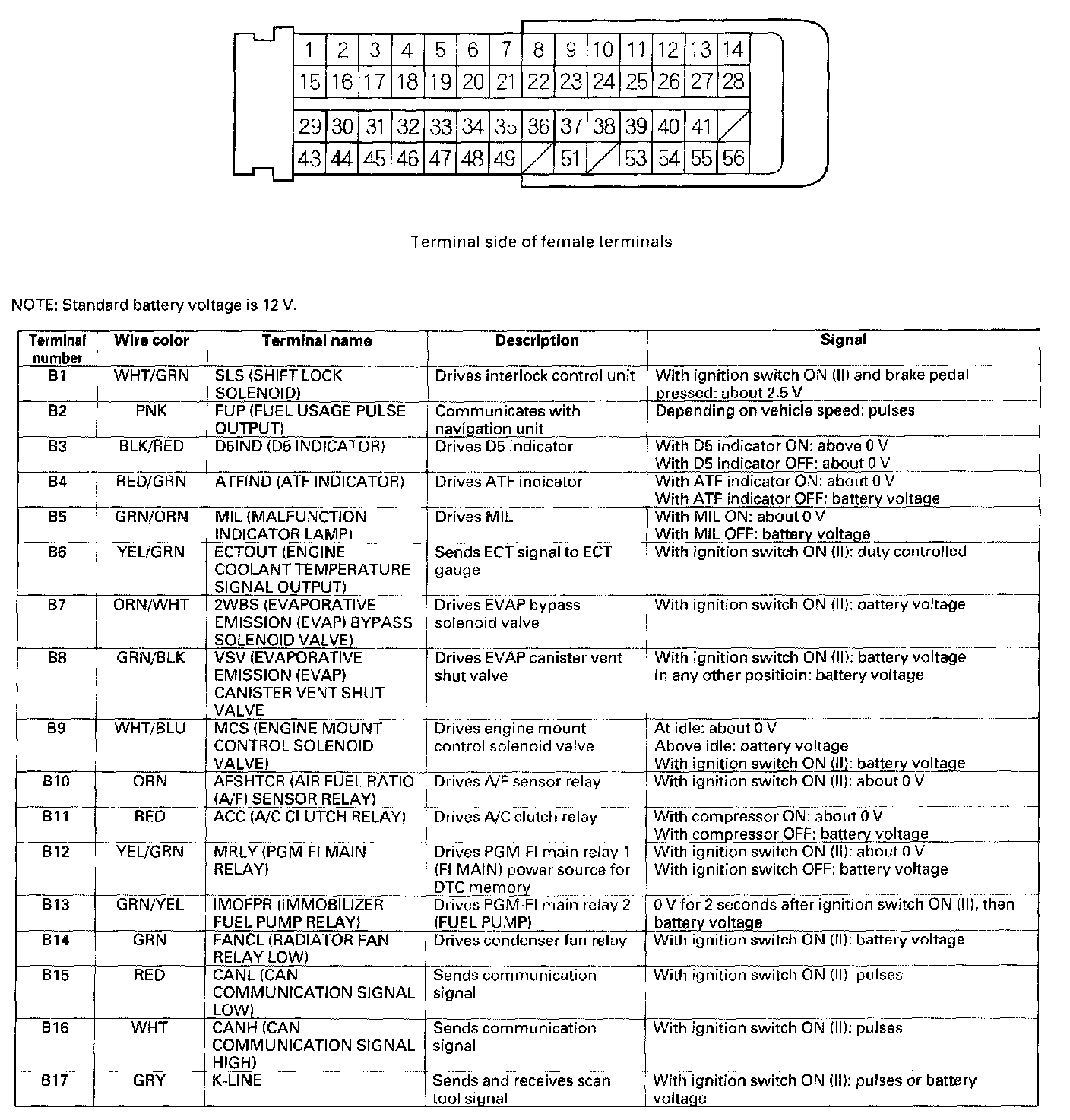

PCM Inputs And Outputs At Connector B Part 1:

PCM Inputs And Outputs At Connector B Part 2:

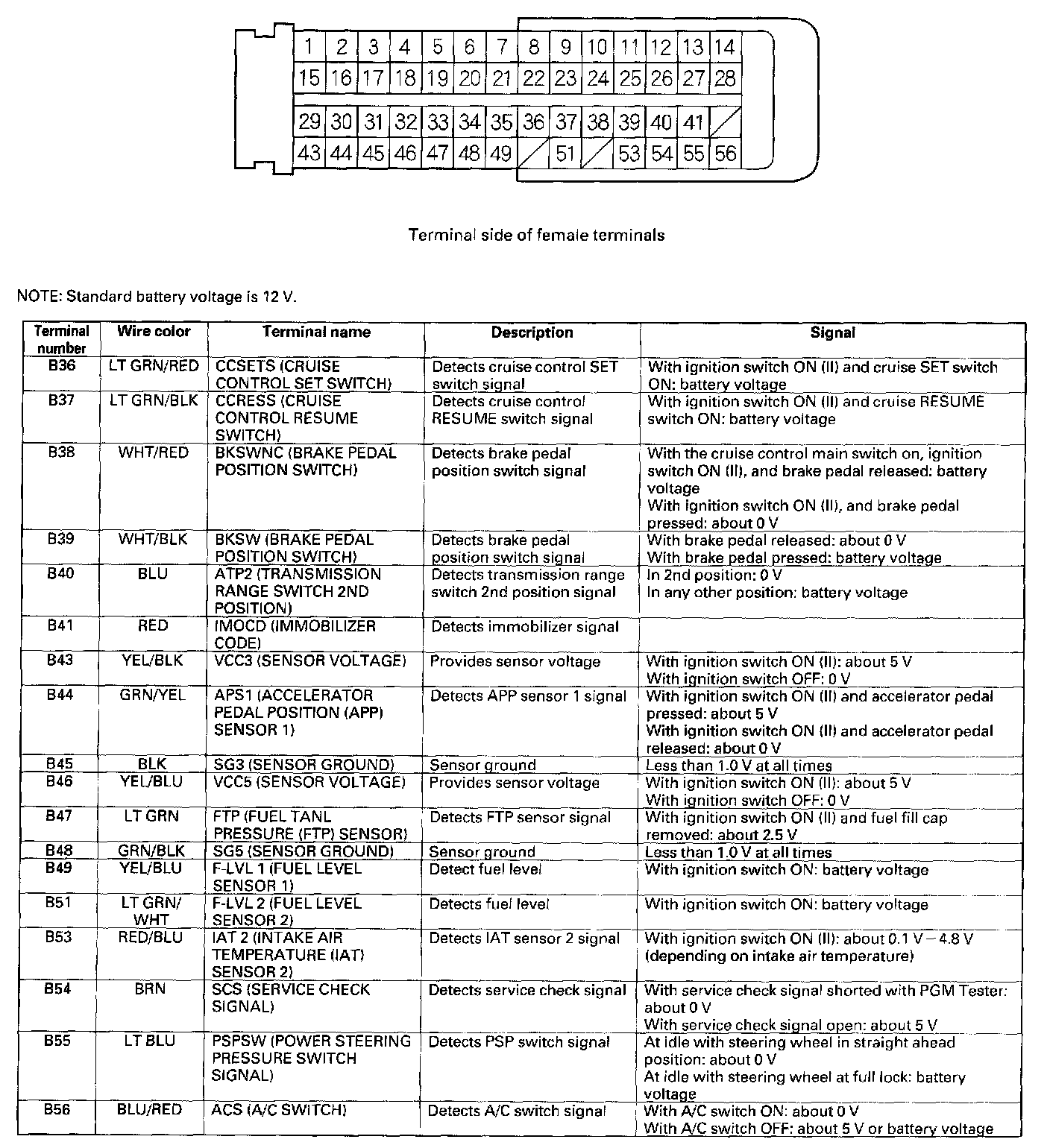

PCM Inputs And Outputs At Connector B:
