ECM/PCM Circuit Diagram

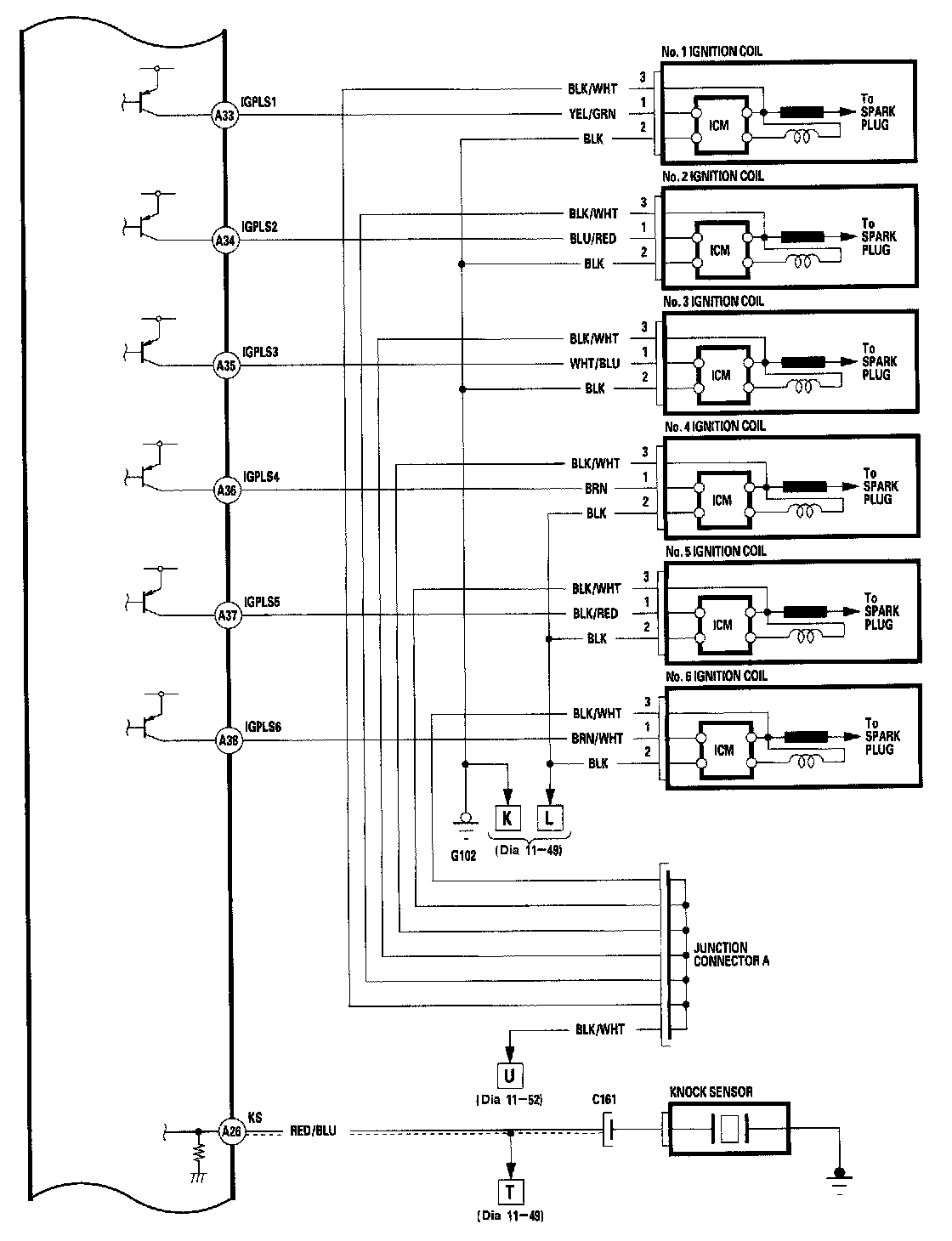

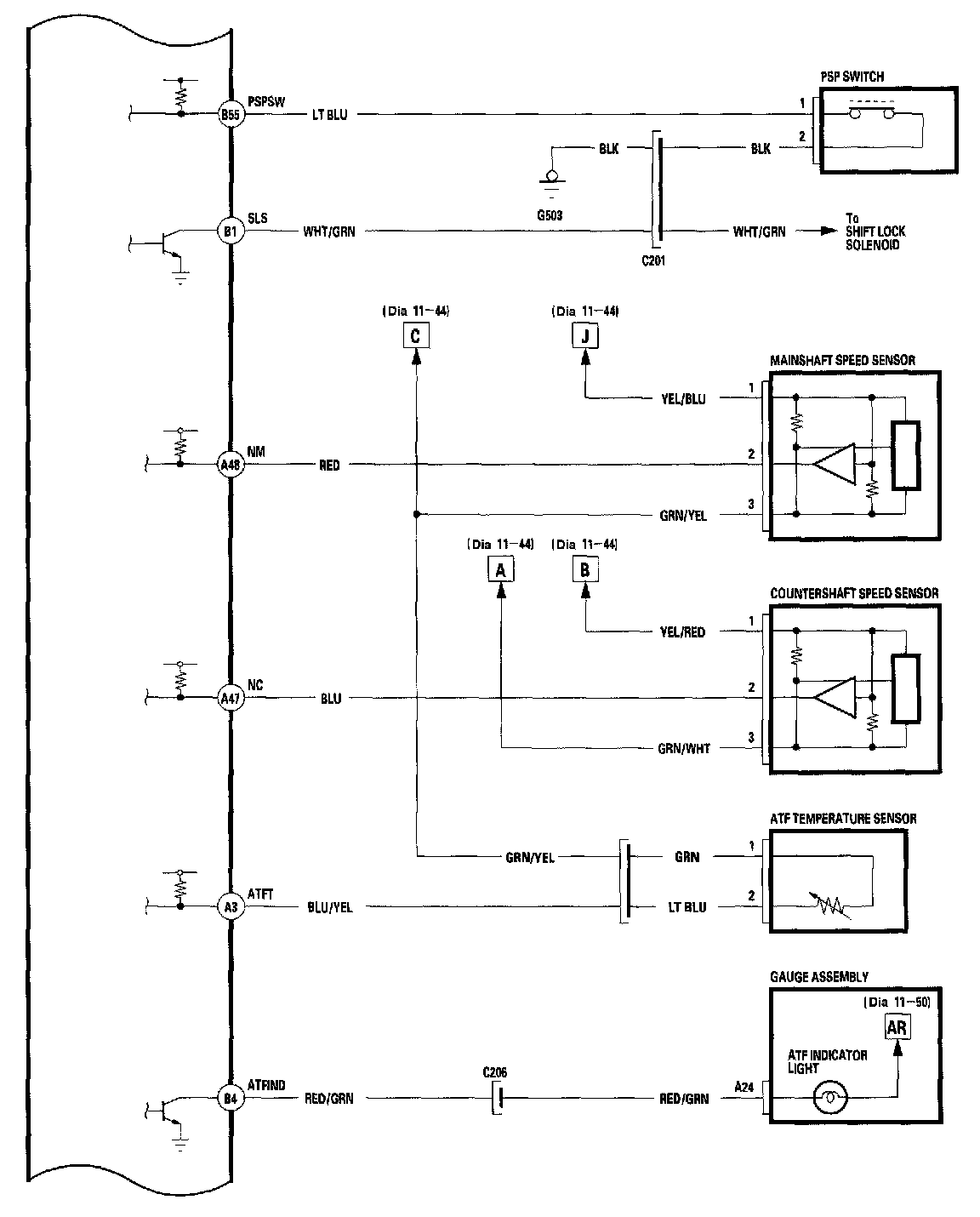

PCM Circuit Diagram 11-44:

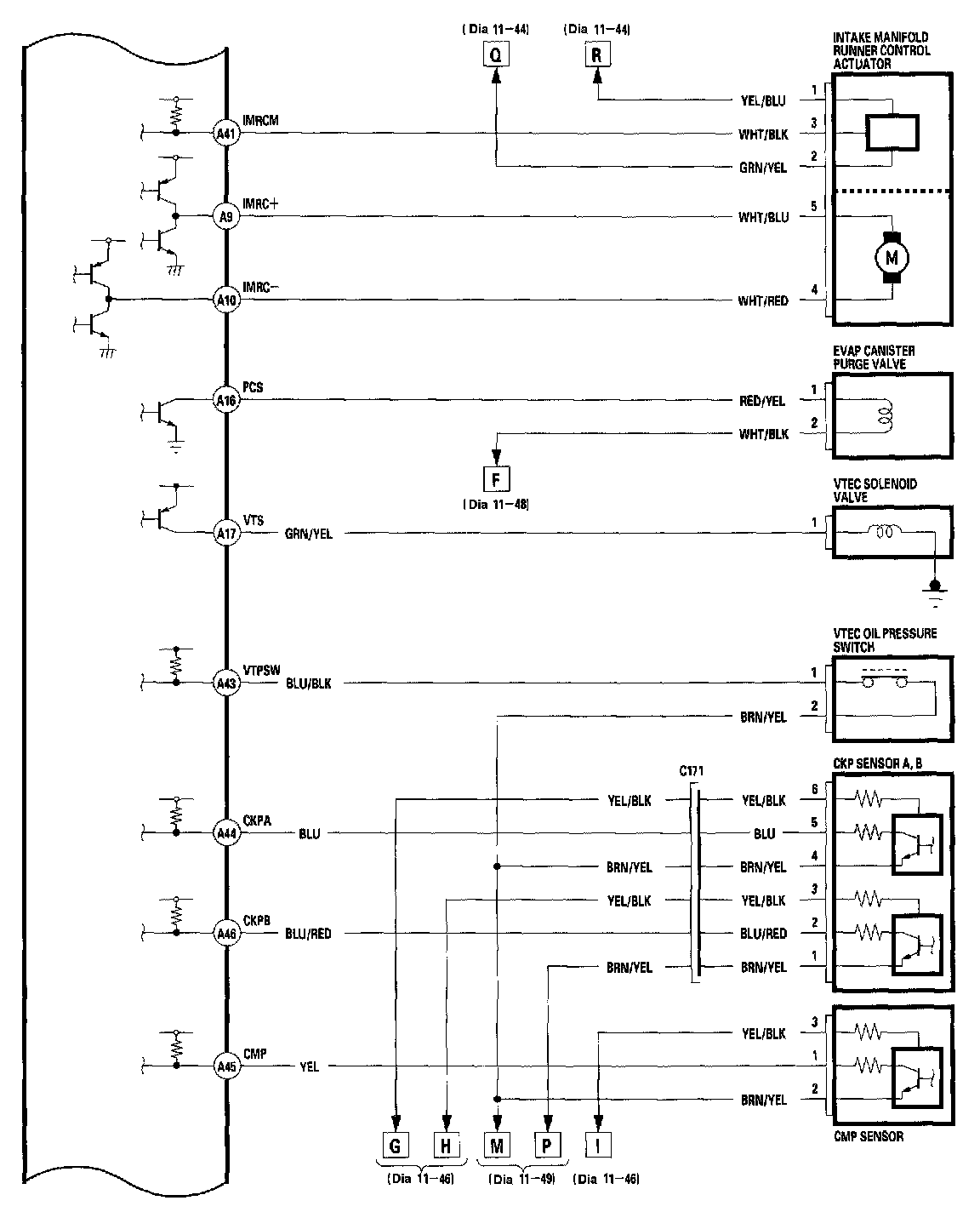

PCM Circuit Diagram 11-45:

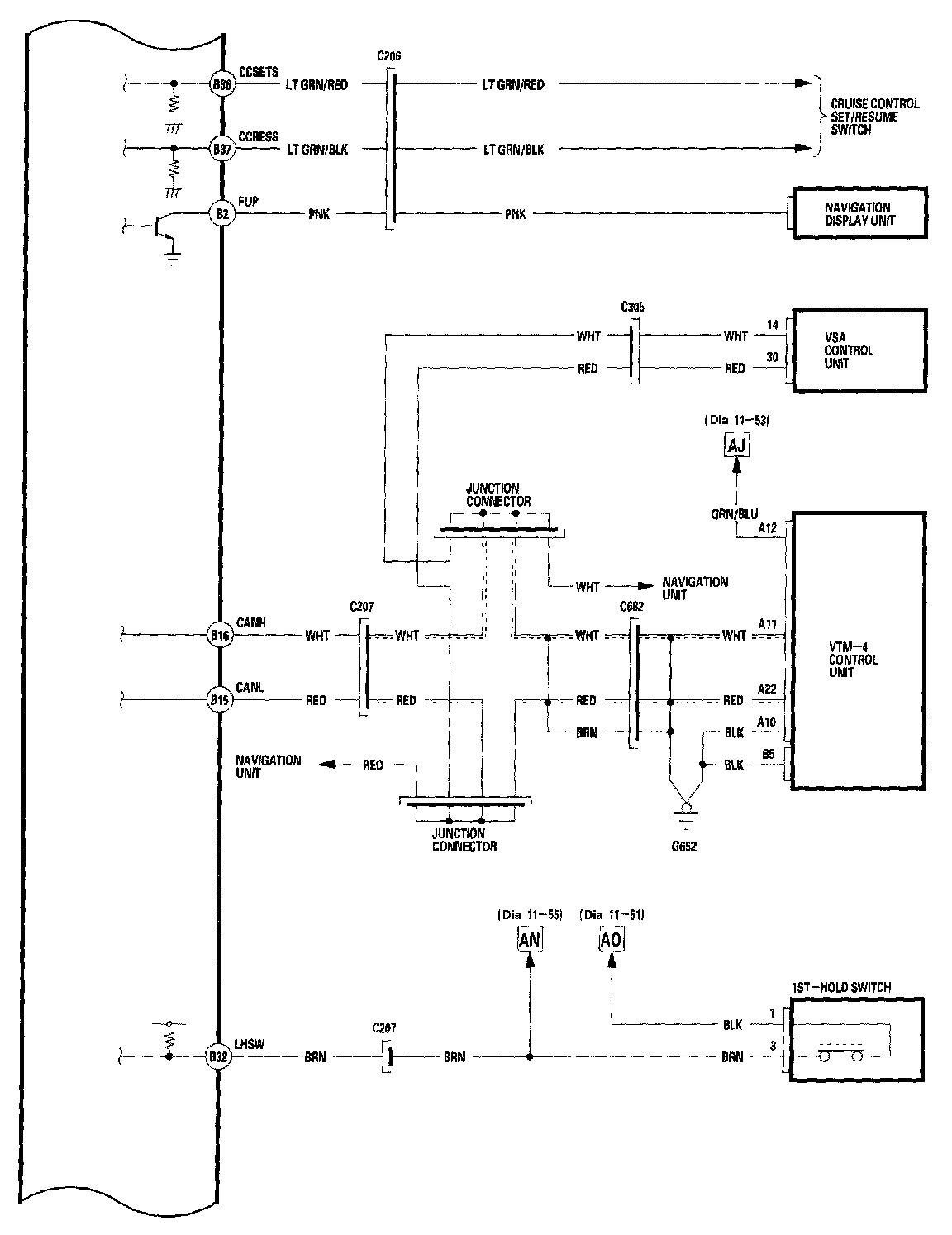

PCM Circuit Diagram 11-46:

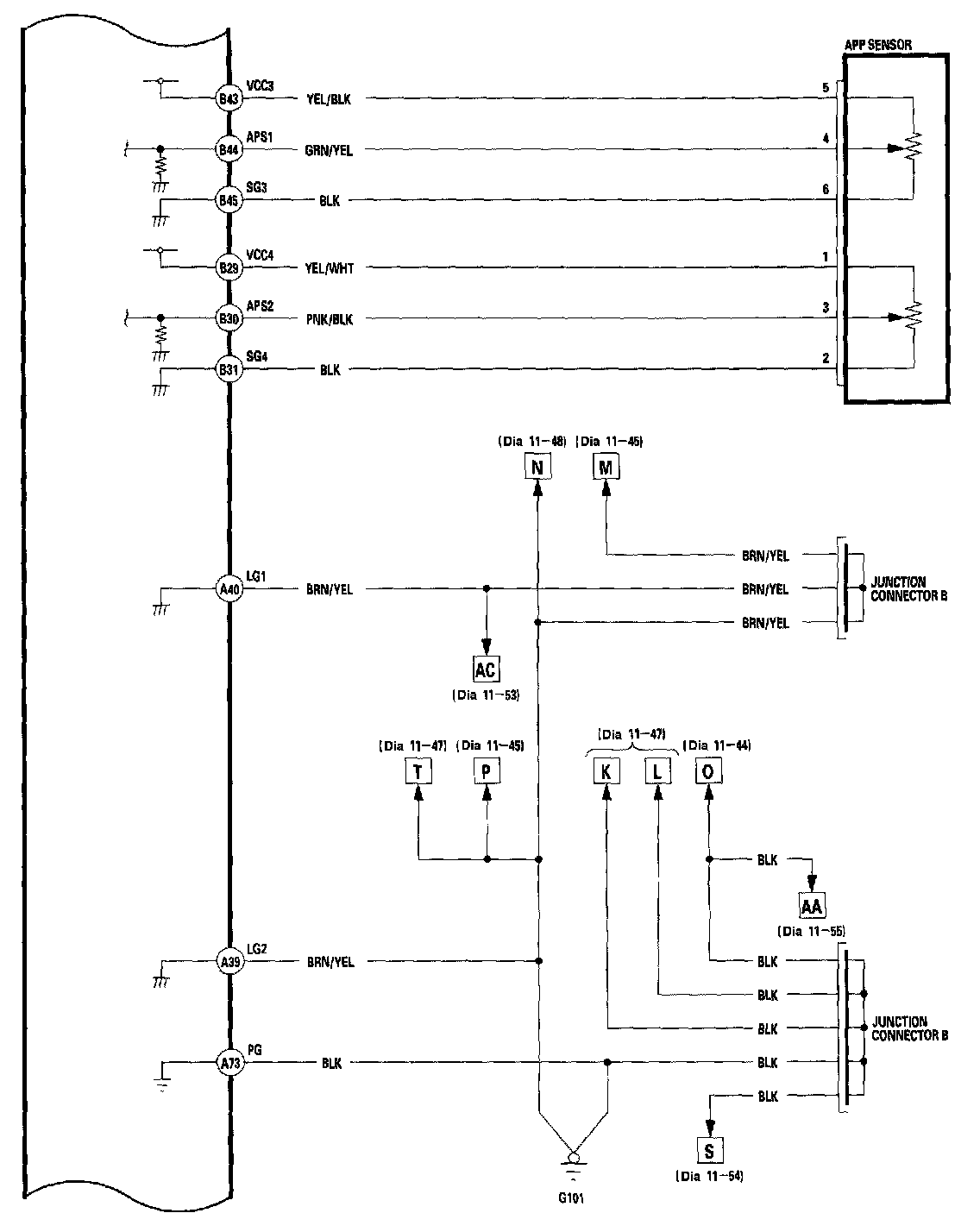

PCM Circuit Diagram 11-47:

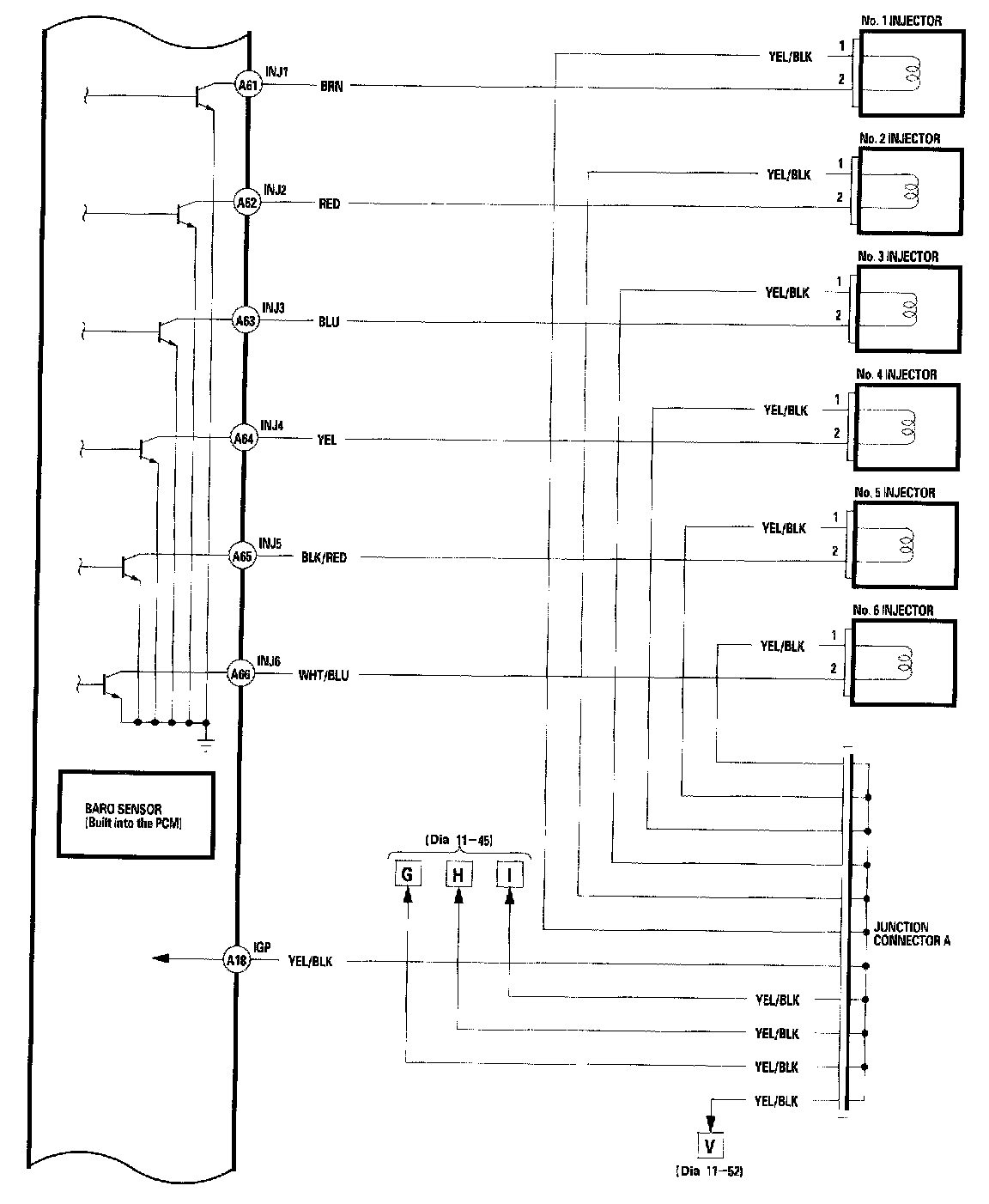

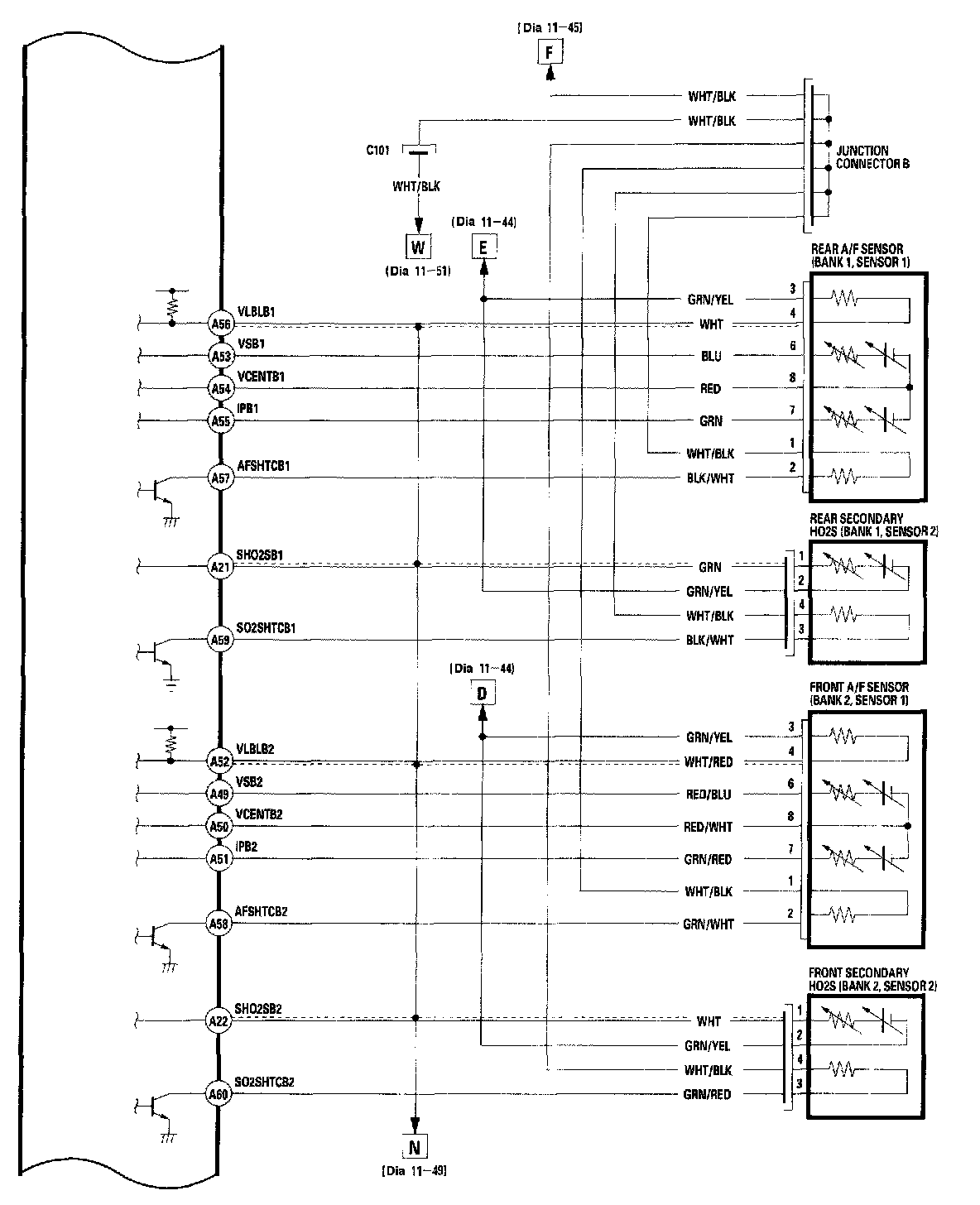

PCM Circuit Diagram 11-48:

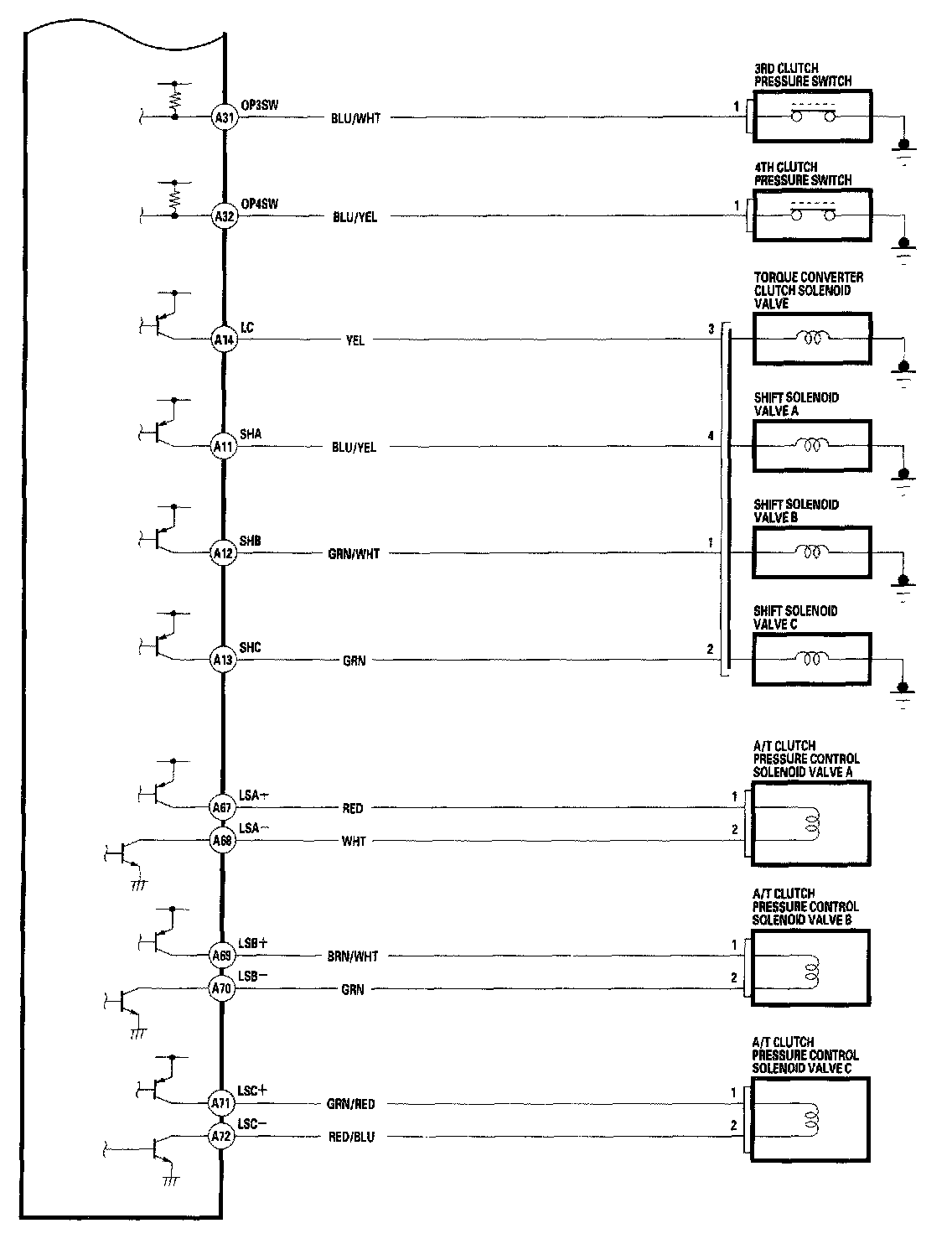

PCM Circuit Diagram 11-49:

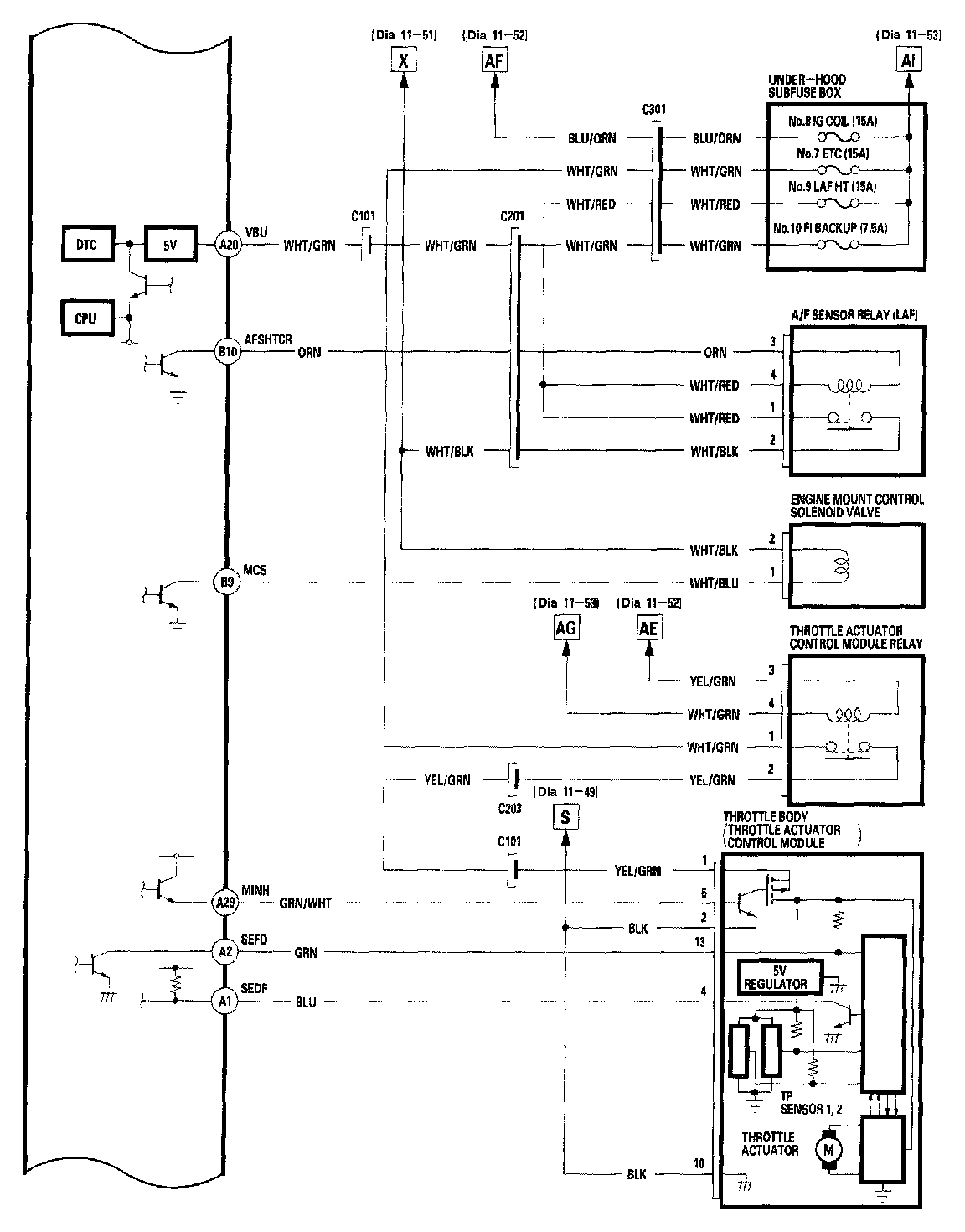

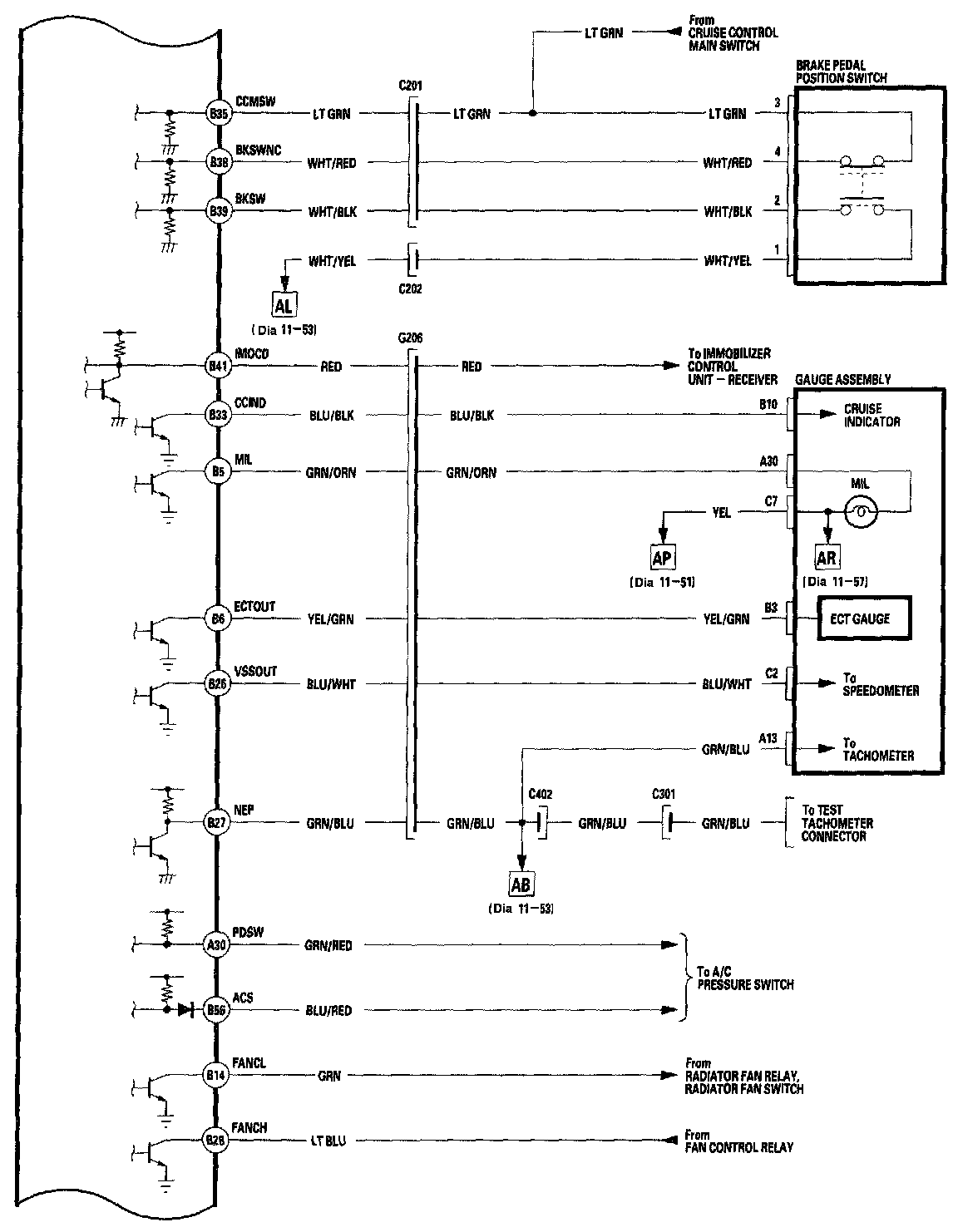

PCM Circuit Diagram 11-50:

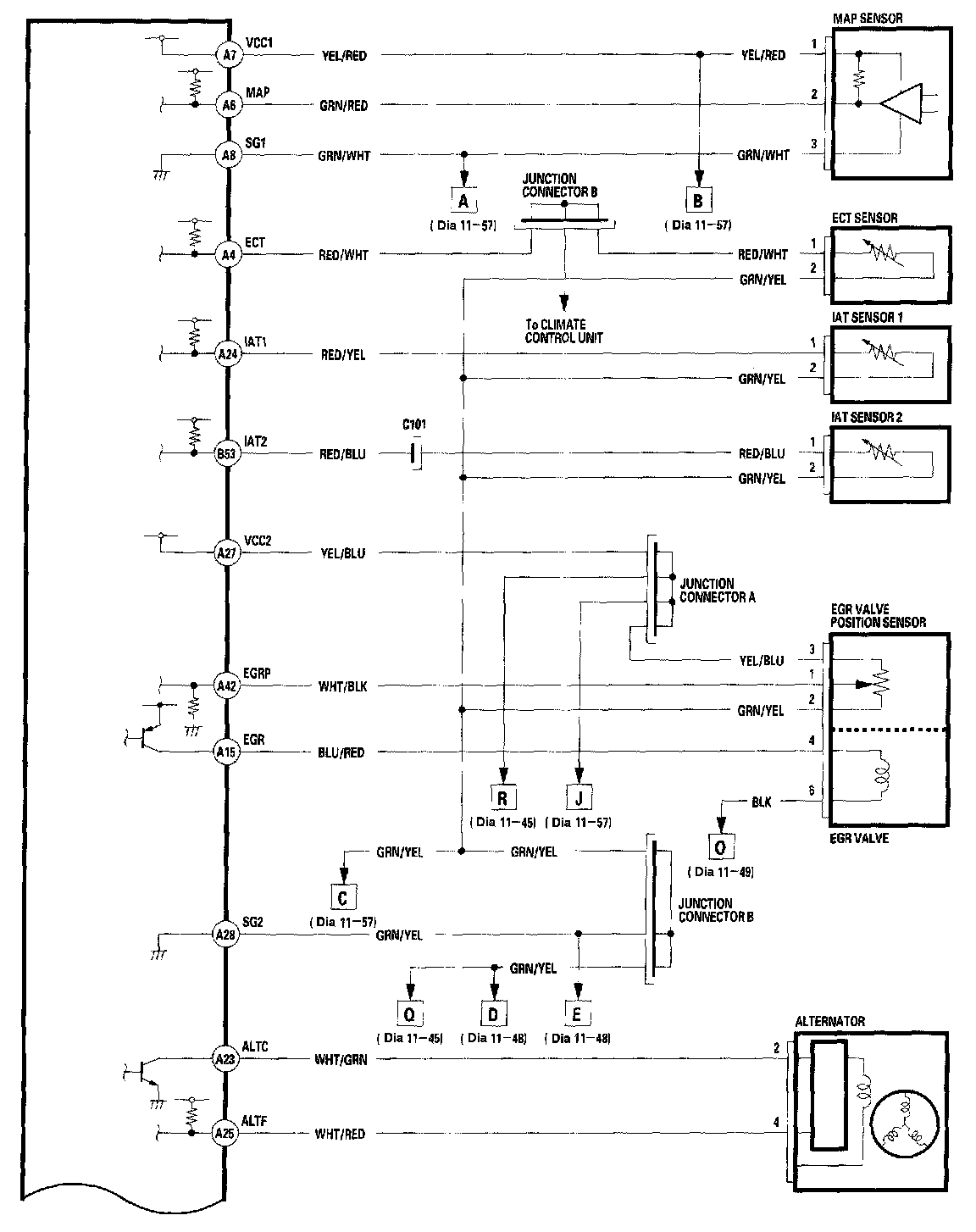

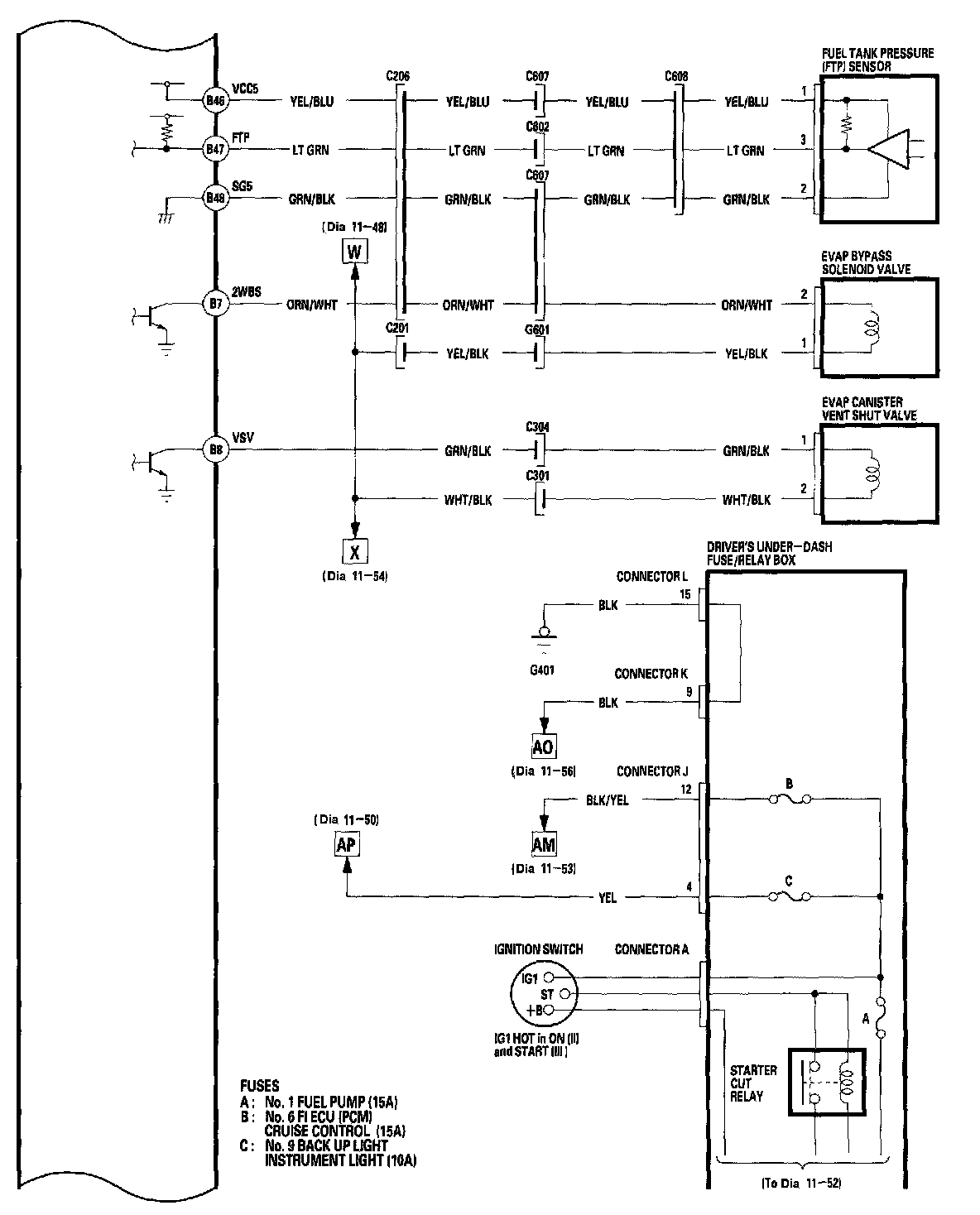

PCM Circuit Diagram 11-51:

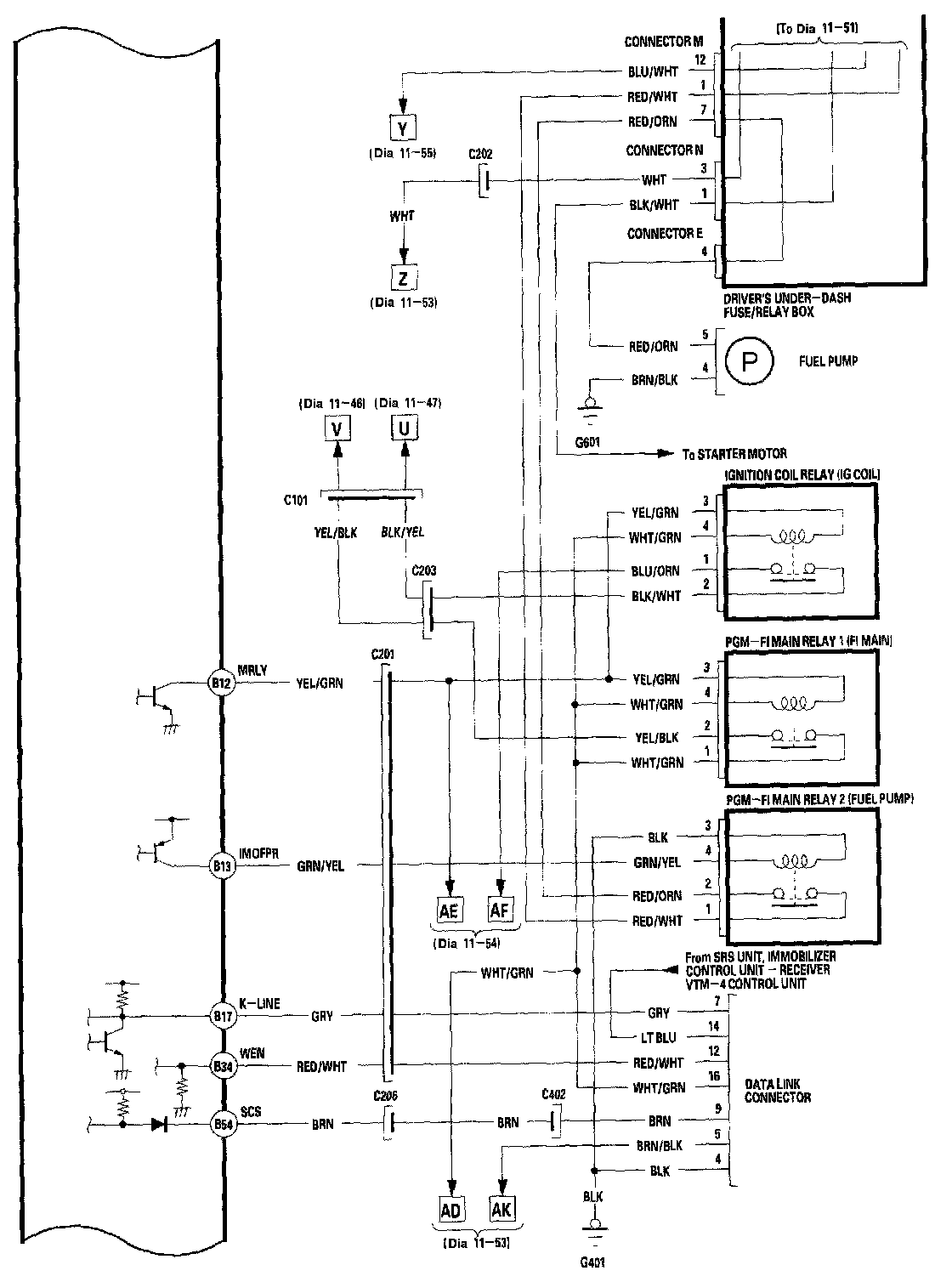

PCM Circuit Diagram 11-52:

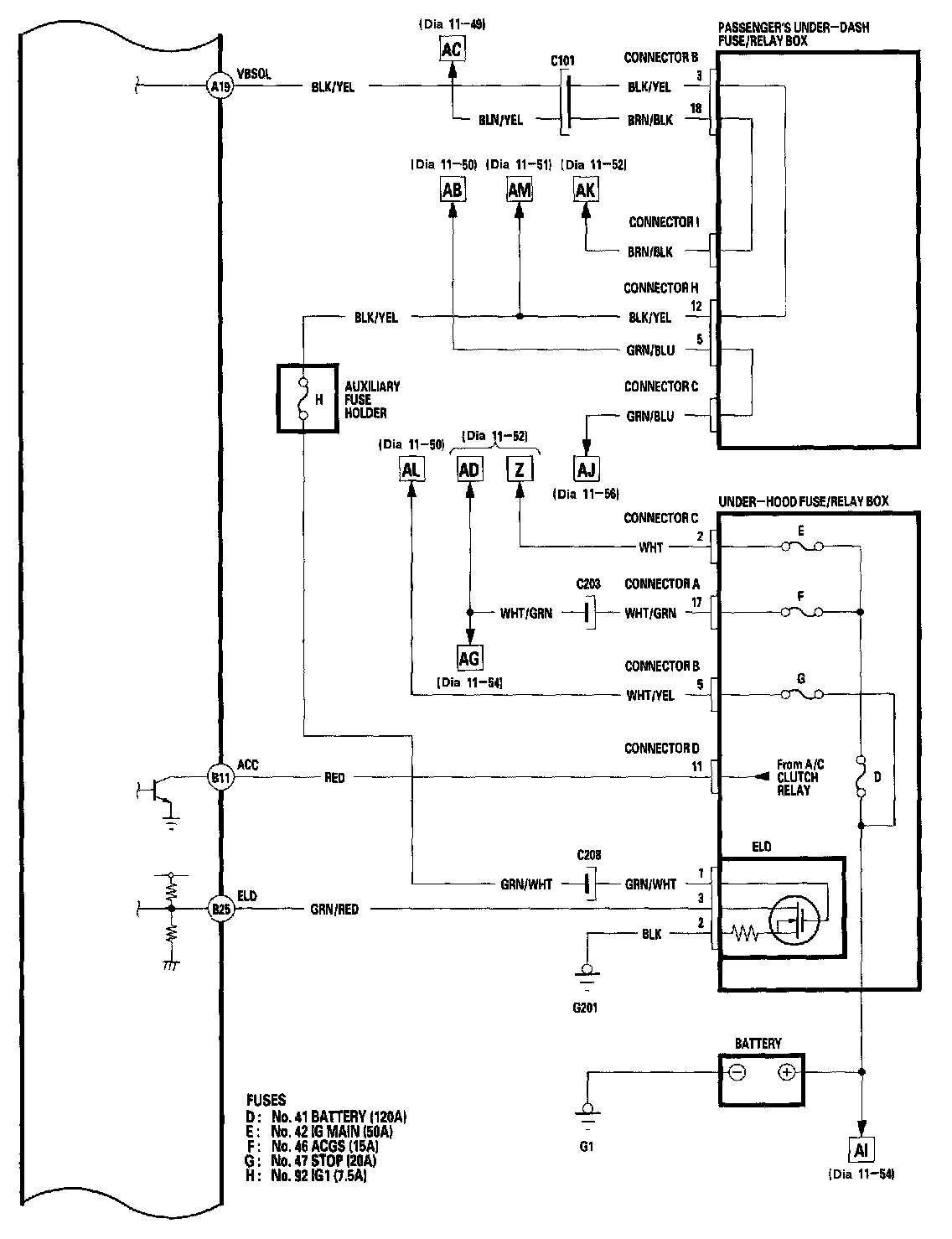

PCM Circuit Diagram 11-53:

PCM Circuit Diagram 11-54:

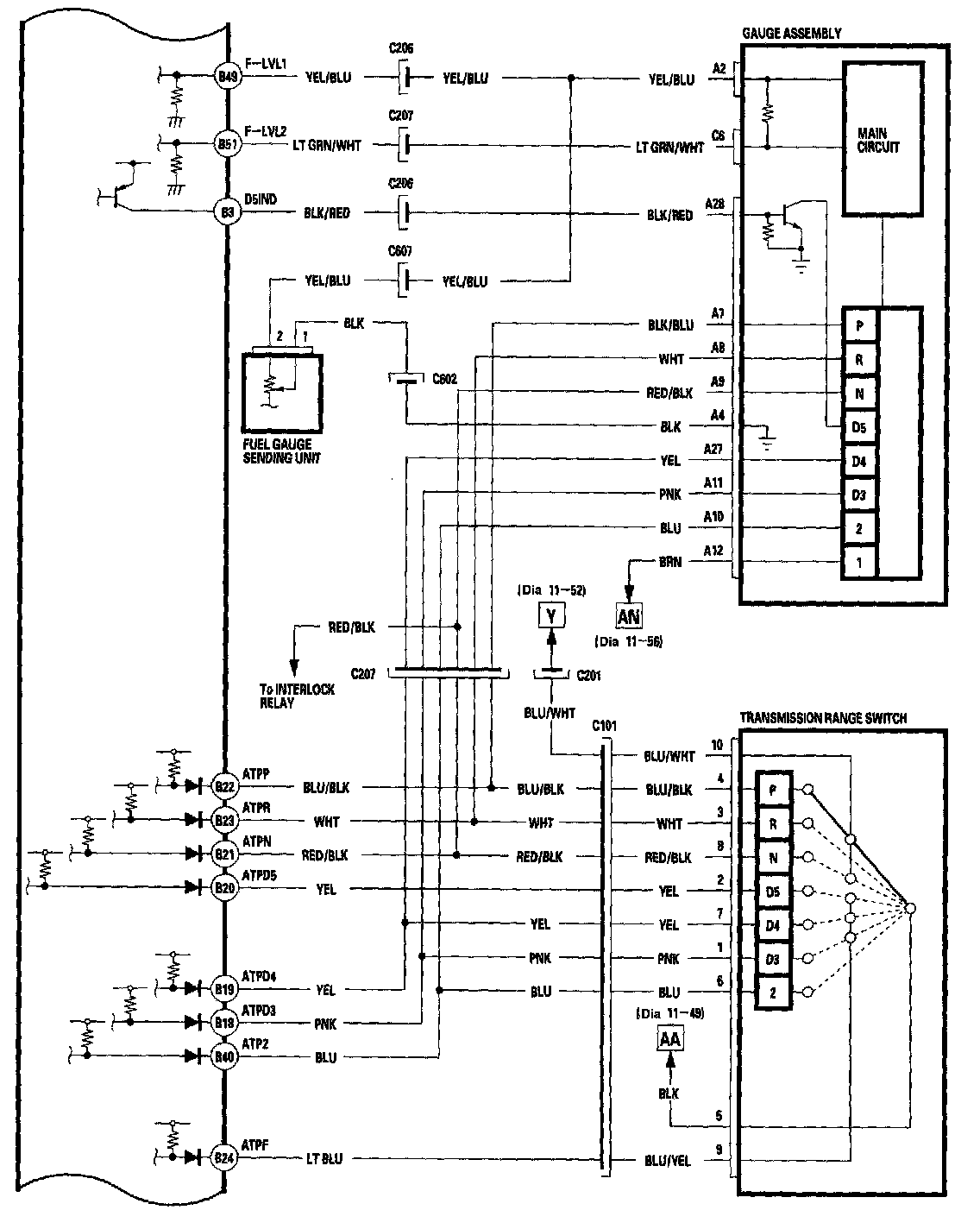

PCM Circuit Diagram 11-55:

PCM Circuit Diagram 11-56:

PCM Circuit Diagram 11-57:

PCM Circuit Diagram 11-58:
