ECM/PCM Electrical Connections

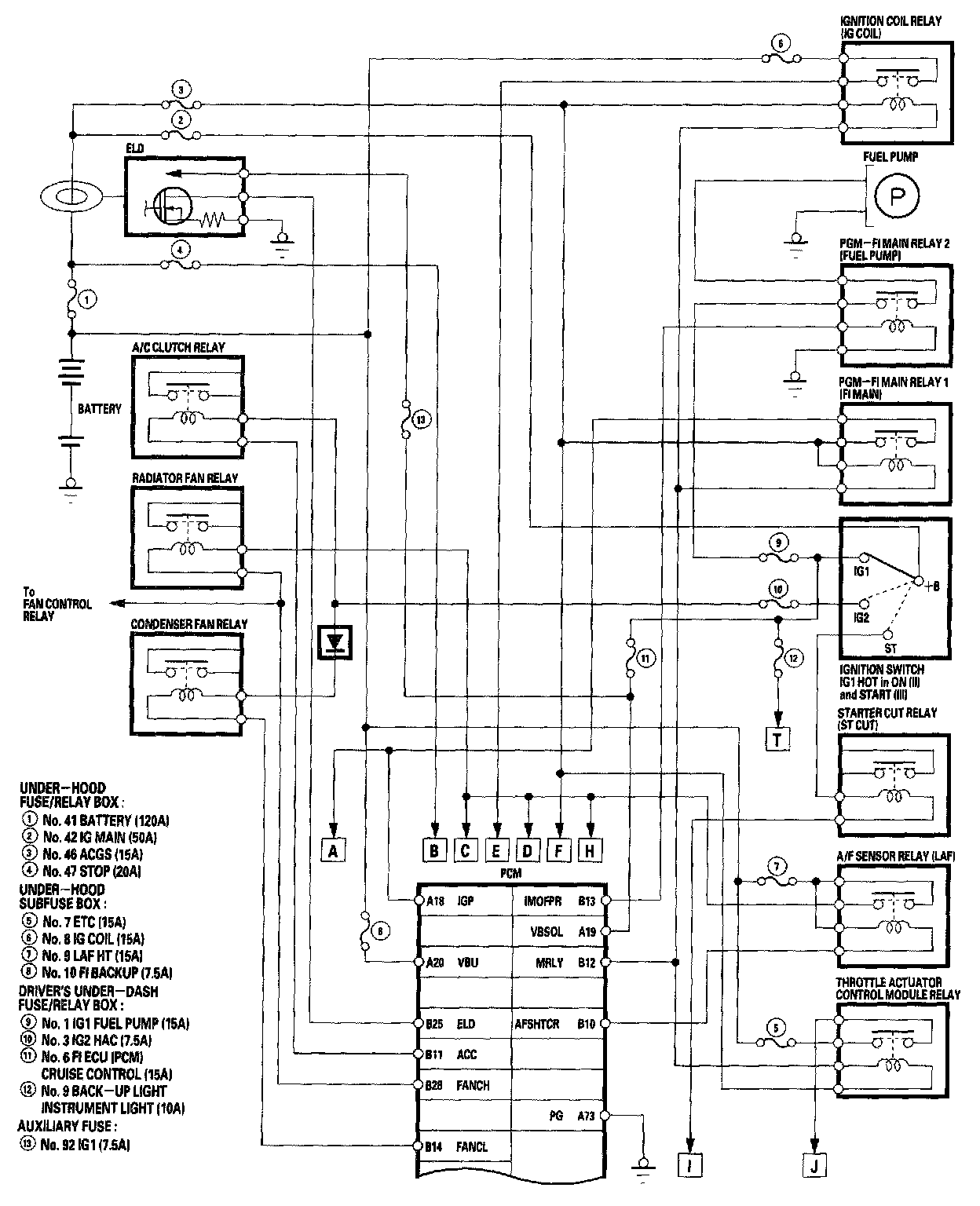

ECM/PCM Electrical Connections Diagram 11-18:

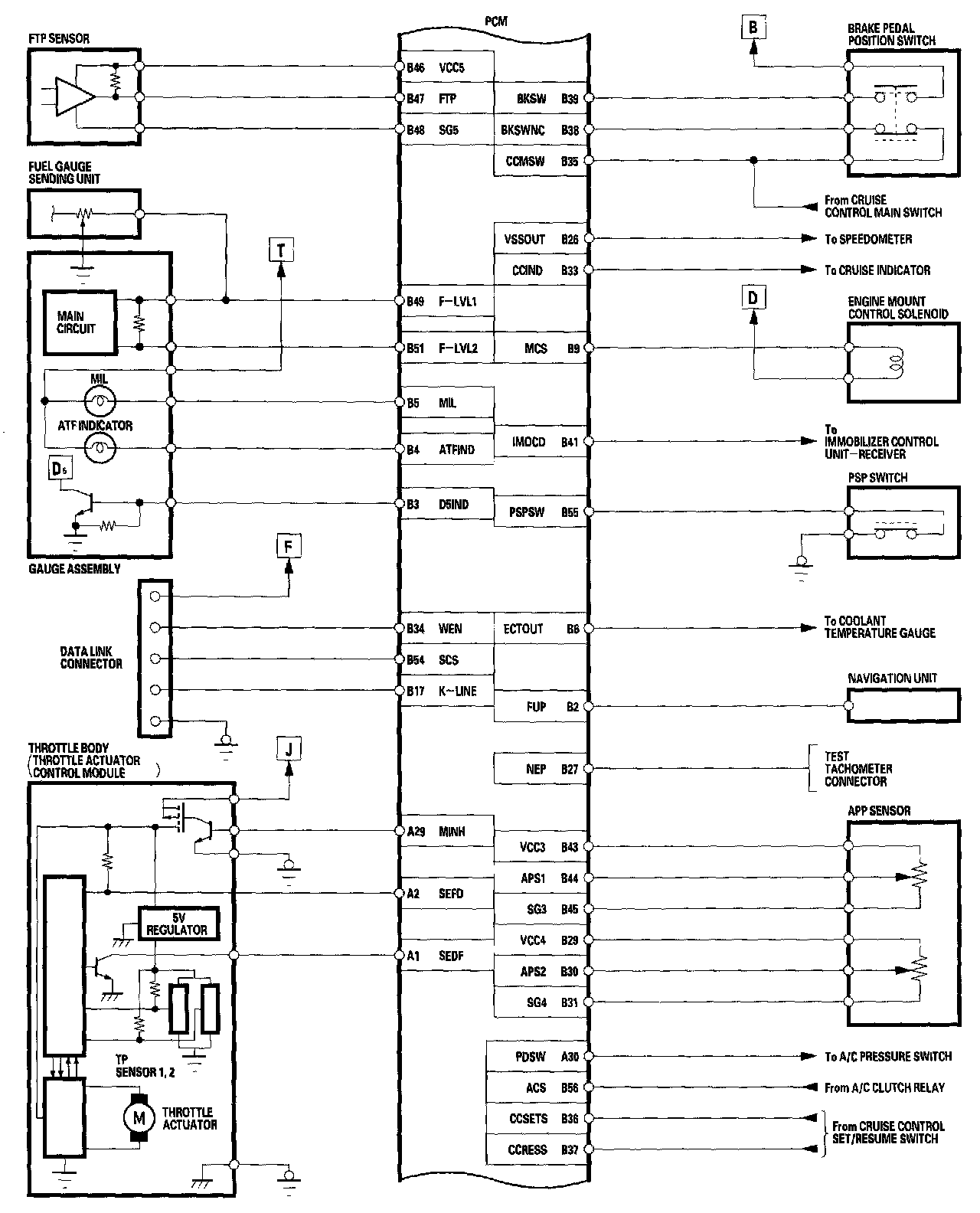

ECM/PCM Electrical Connections Diagram 11-19:

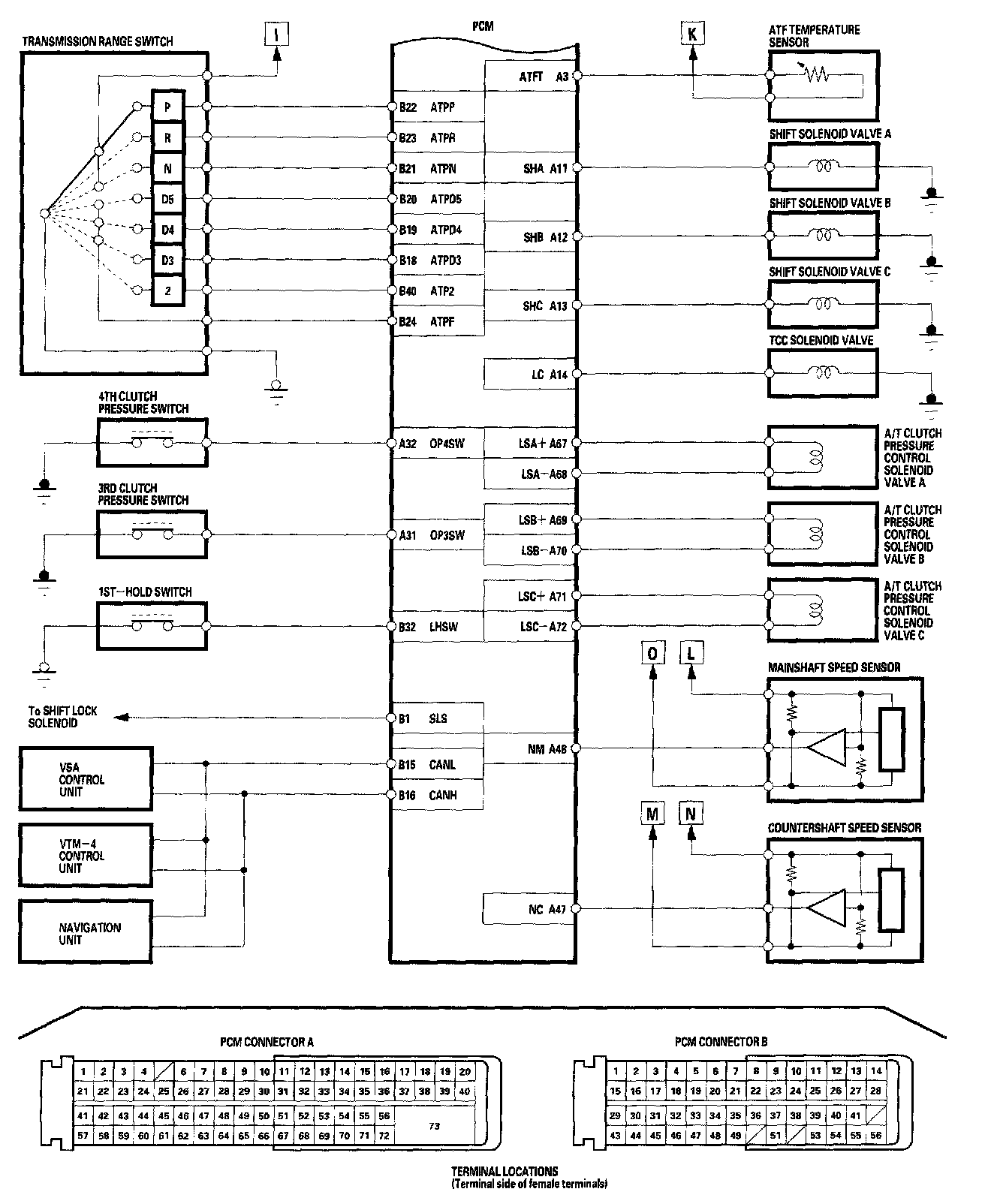

ECM/PCM Electrical Connections Diagram 11-20:

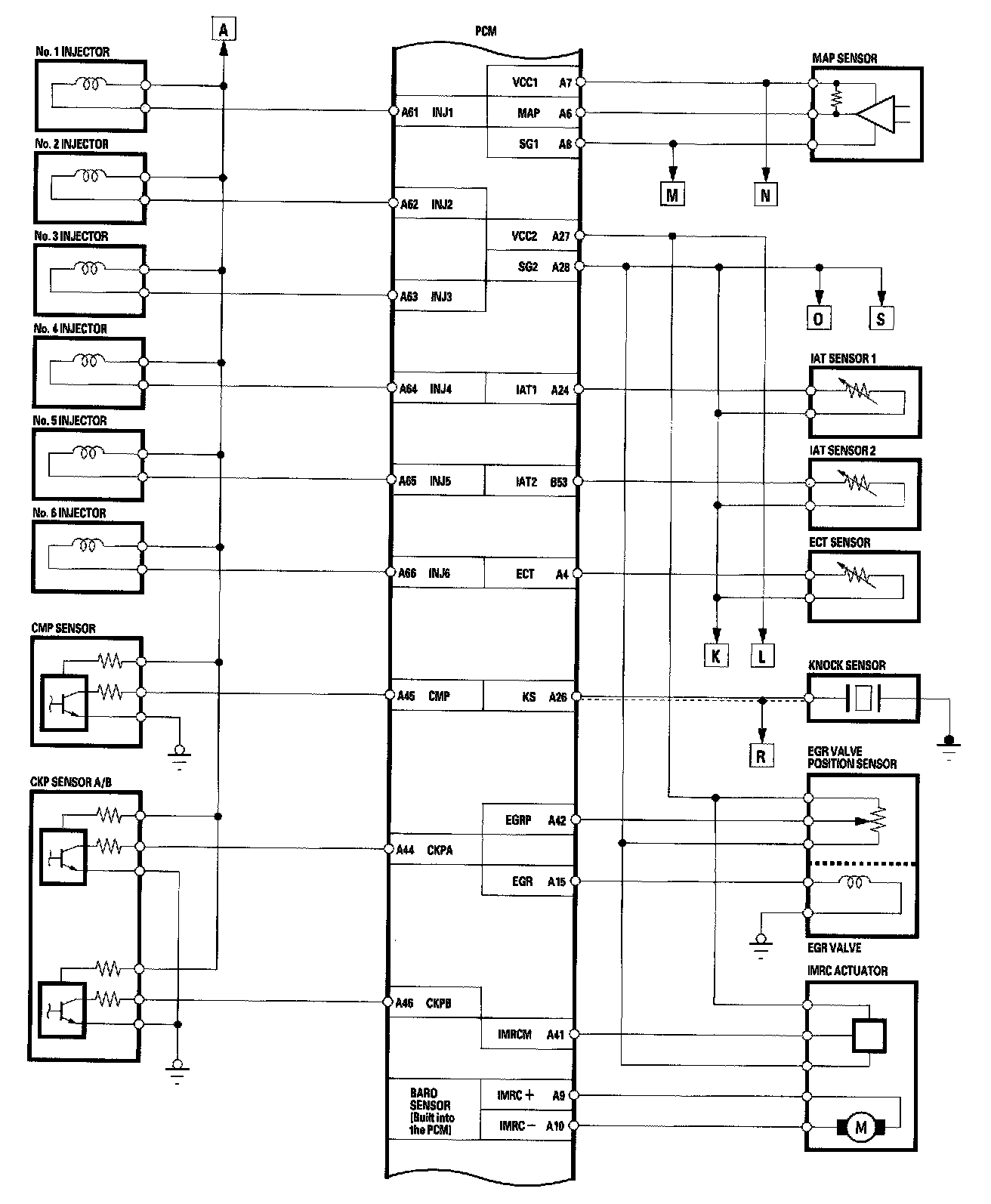

ECM/PCM Electrical Connections Diagram 11-21:



ECM/PCM Electrical Connections Diagram 11-22:
