Replacement
Alternator Replacement1. Make sure you have the anti-theft codes for the radio and the navigation system, then write down the frequencies for the radio's preset buttons.
2. Disconnect the negative cable from the battery, then disconnect the positive cable.
3. Remove the intake manifold cover and ignition coil cover.
4. Remove the drive belt.

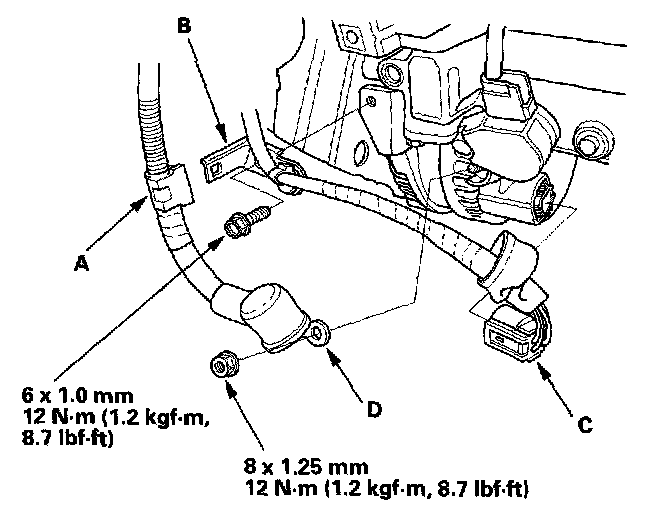

5. Remove the harness clamp (A), then remove the bracket(B).
6. Disconnect the alternator connector (C) and BLK wire (D) from the alternator.
7. Remove the mounting bolt (A) and alternator bracket mounting bolt (B), then remove the alternator.
8. Install the alternator and drive belt in the reverse order of removal.
9. Connect the positive cable and negative cable to the battery.
10. Enter the anti-theft codes for the radio and the navigation system.
11. Enter the customer's radio station presets, and set the clock.
12. Perform the powertrain control module (PCM) idle learn procedure, and power window control unit reset procedure.
