Windows: Locations

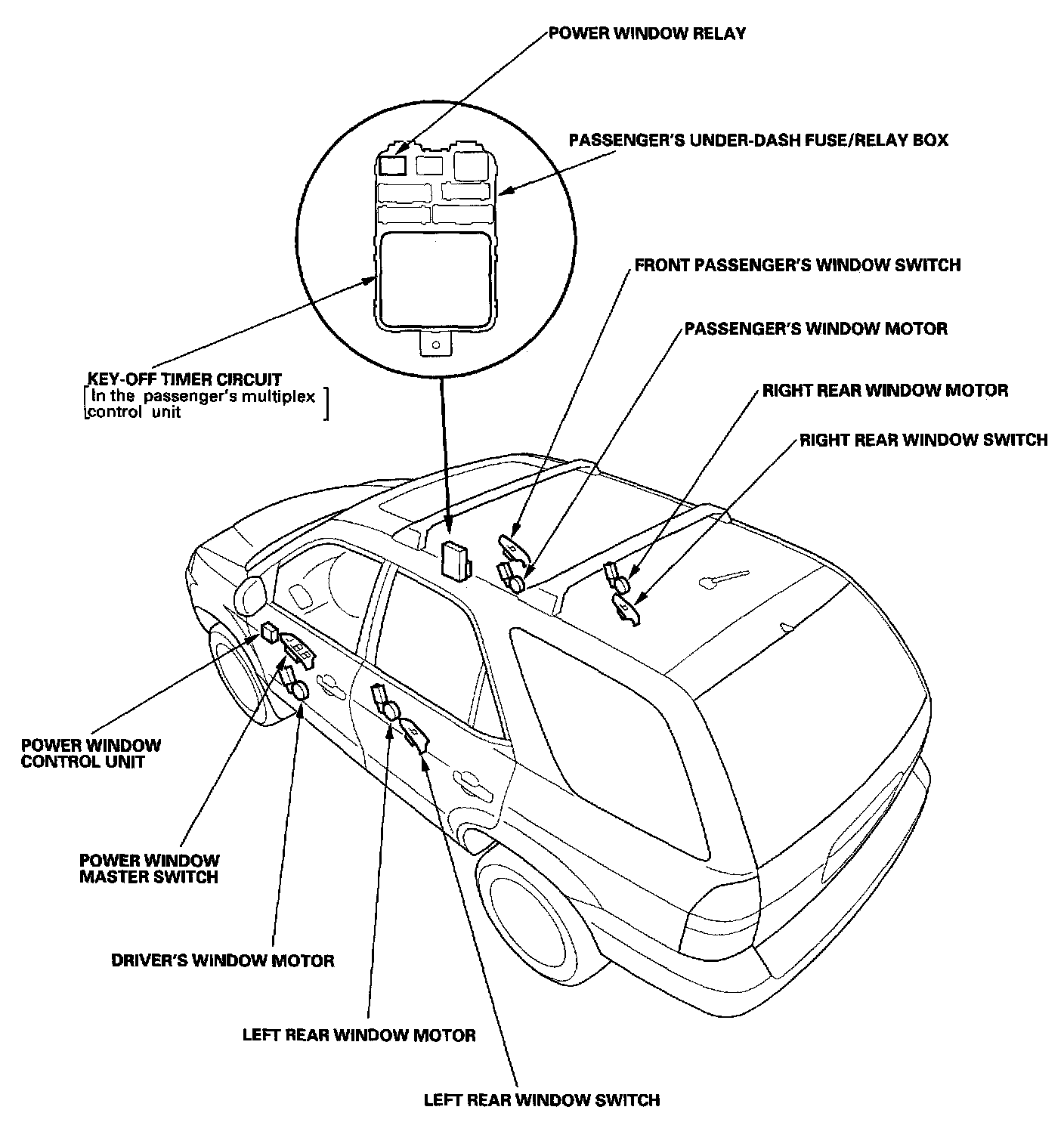

Power Windows - Component Location Index:



121. Front Passenger's Door:



123. Left Rear Door (Right Rear Similar):

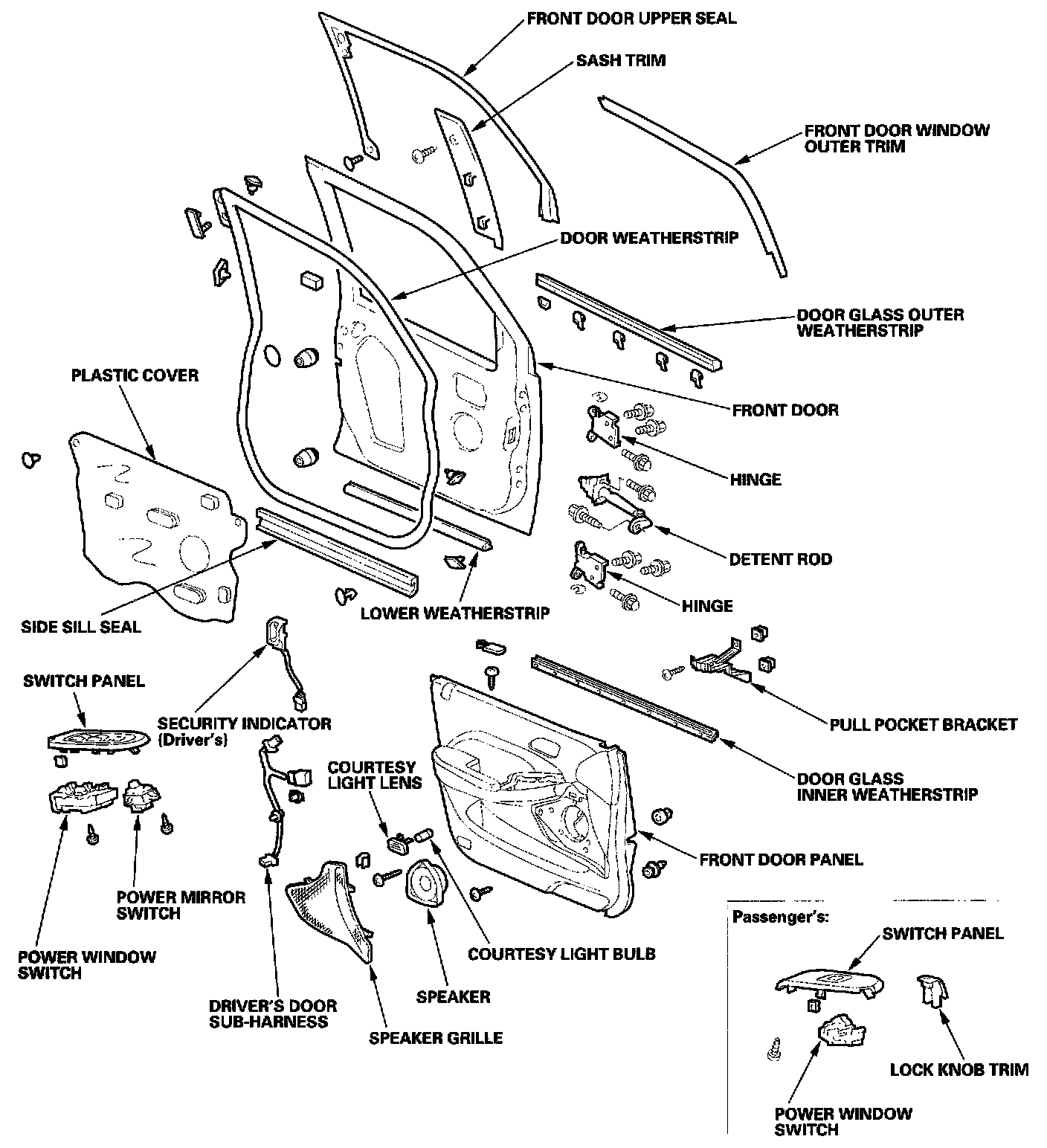

Front Door Component Location Index:
