Washer Fluid Level Switch: Service and Repair

Washer Fluid Level Switch Test/Replacement

1. Remove the right inner fender.

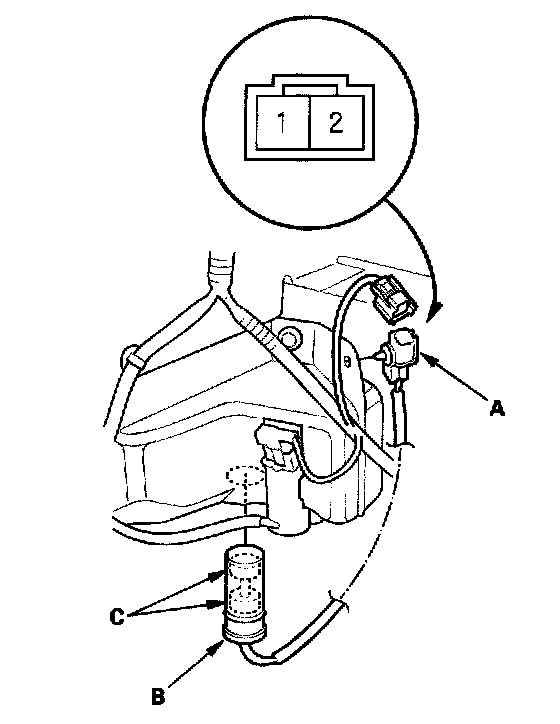

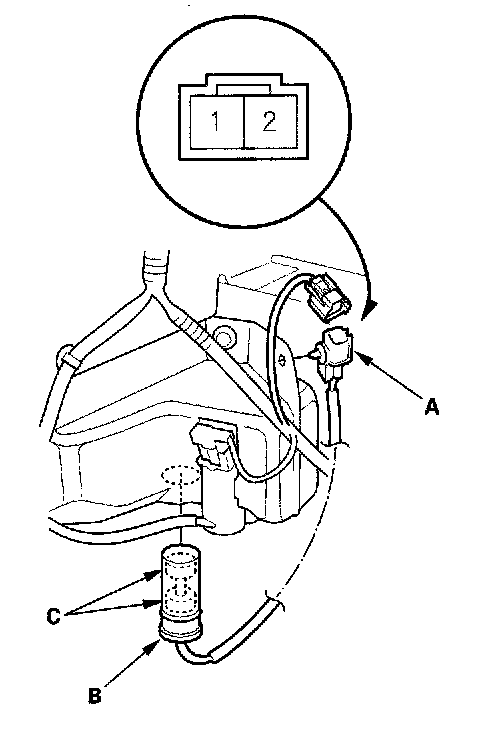

2. Disconnect the 2P connector (A) from the washer fluid level switch (B).
3. Pull the switch out of the reservoir.

NOTE: Fluid may flow out of the opening.

4. Check for continuity between the No. 1 and No. 2 terminals in each float switch position (C).

- There should be continuity when the float is down.
- There should be no continuity when the float is up.

5. If the continuity is not as specified, replace the switch.
