HFL-Voice Control Switch Test/Replacement

HFL-Voice Control Switch Test/Replacement

1. Remove the driver's airbag assembly.

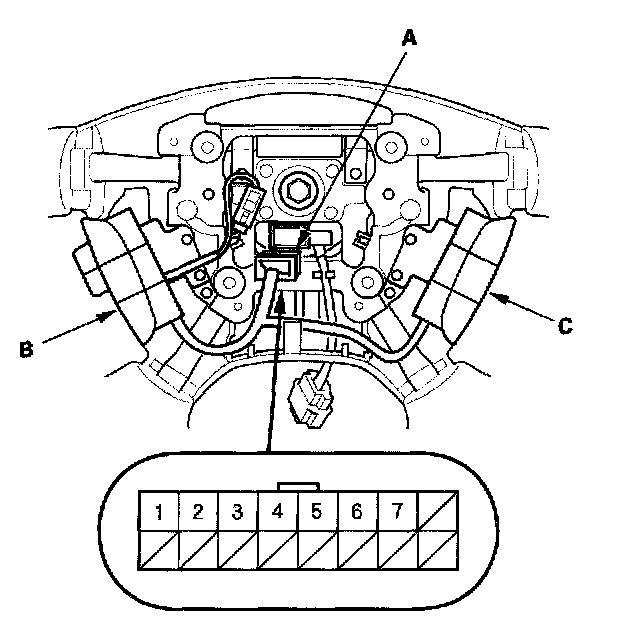

2. Disconnect the 16P connector (A) from the cable reel.

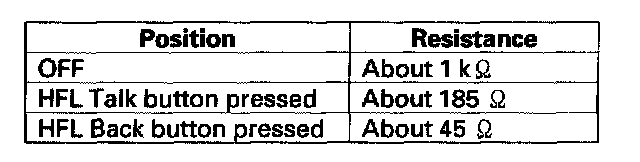

3. Measure resistance between the 18P connector No. 6 and No. 7 terminals in each switch position according to the table.
4. If the resistance is not as specified, remove the screws and replace the HFL-voice control switch (B) and cruise SET/RESUME/CANCEL switch (C) as an assembly.
