Driver/Vehicle Information Display
Driver/Vehicle Information Display

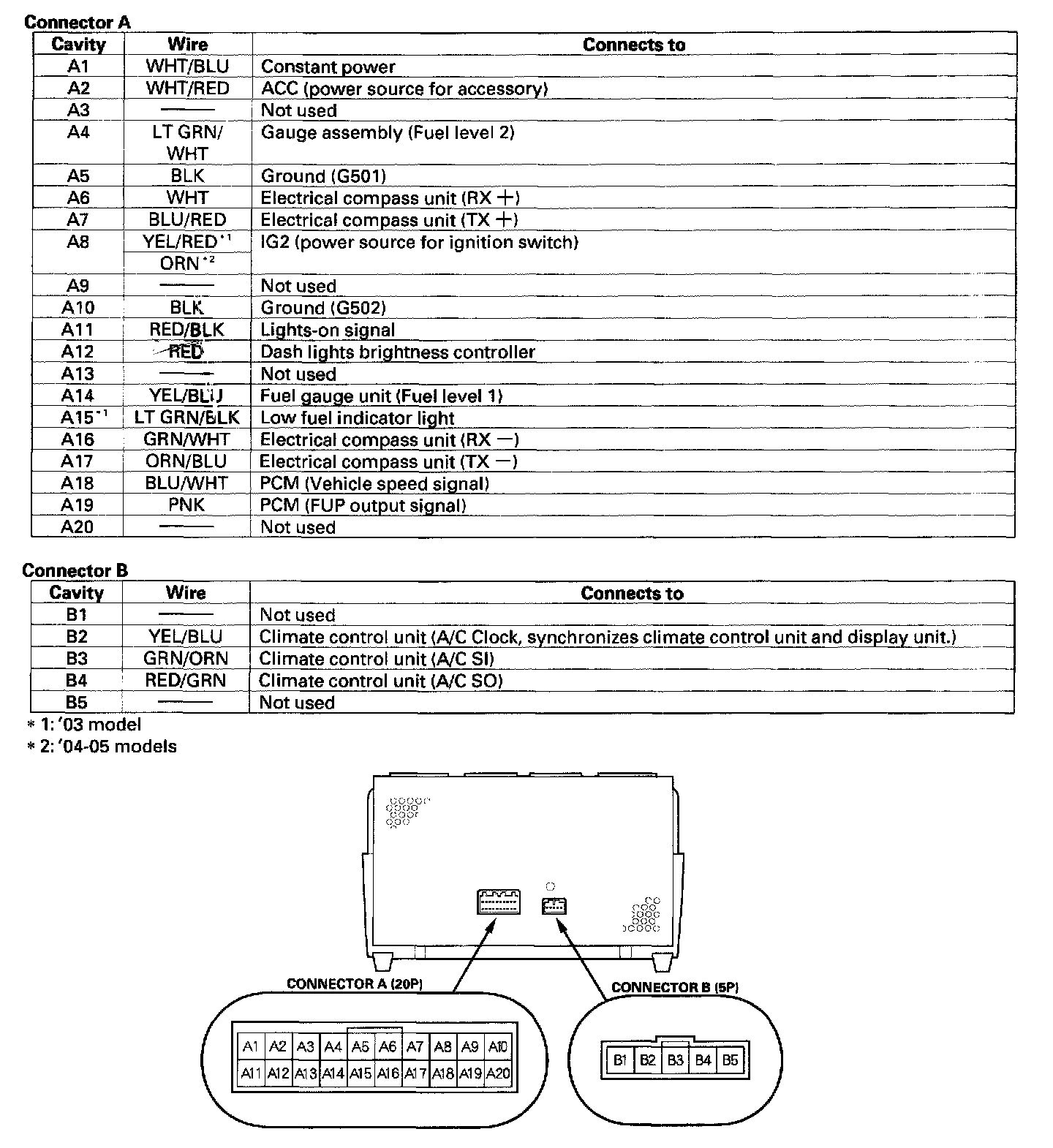

Display Unit Connector Inputs and Outputs:
Electrical Compass Unit Connector Inputs and Outputs:

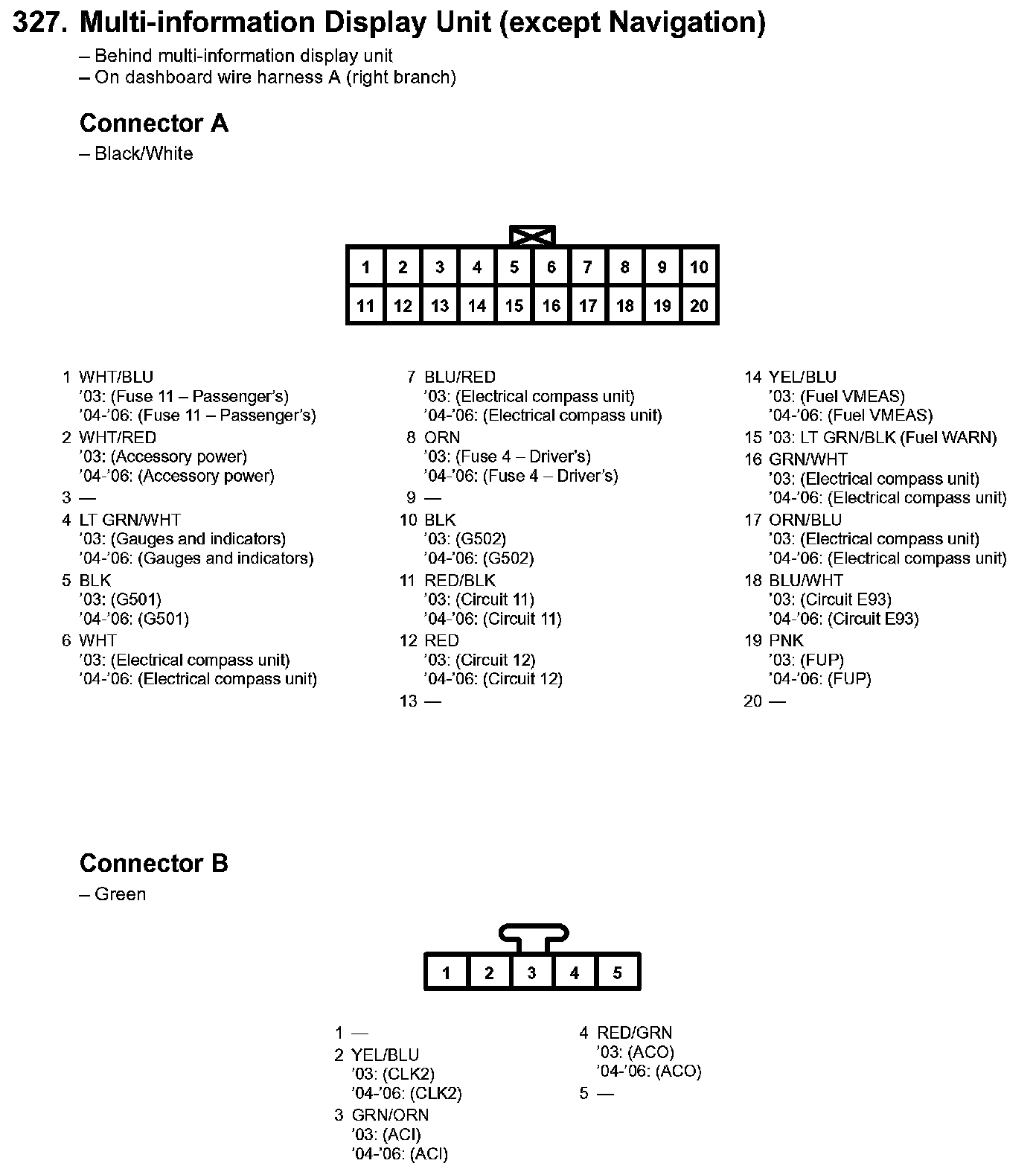

327. Multi-information Display Unit (except Navigation):
