MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
System Diagram
System Diagram

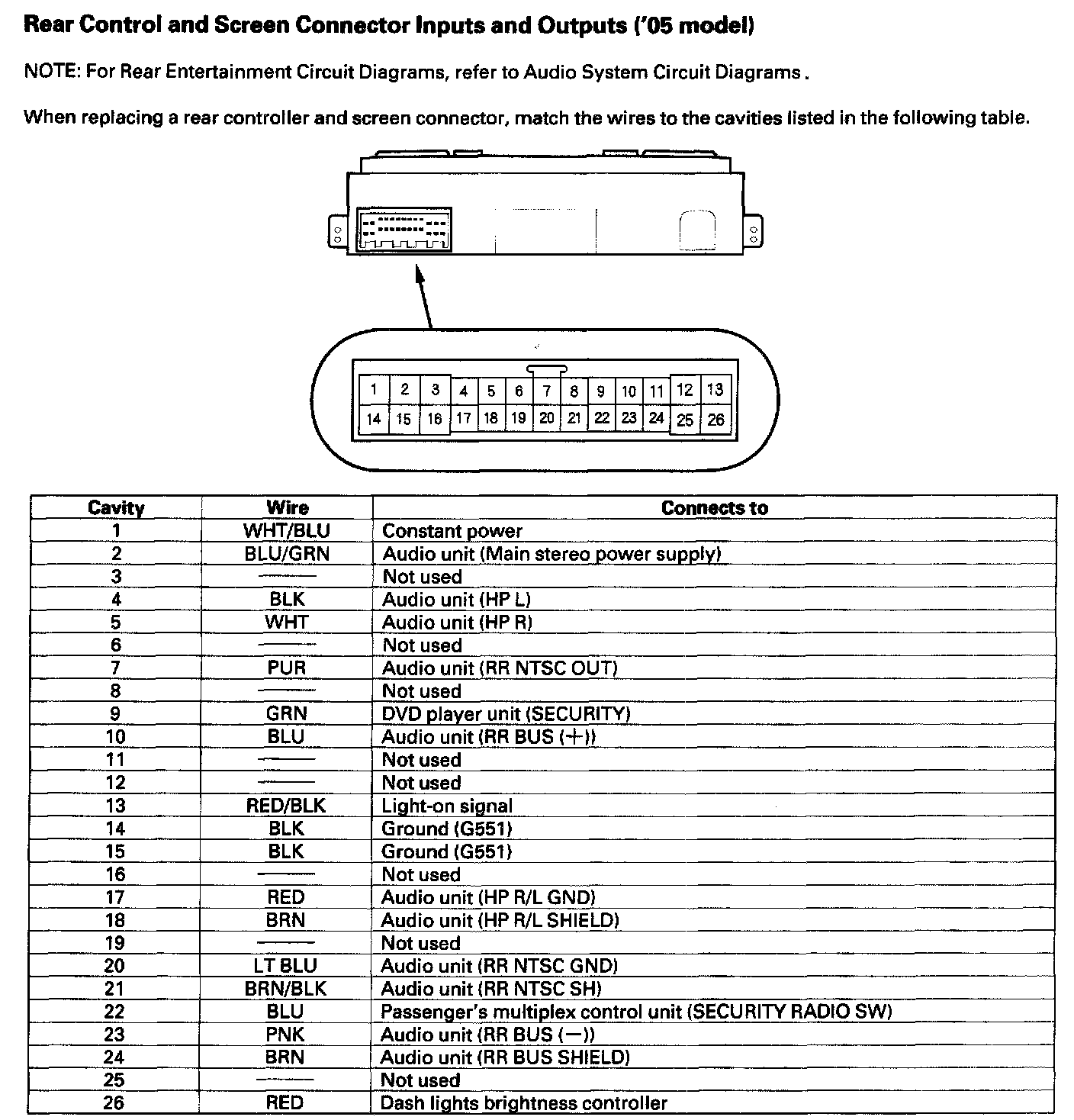

Rear Control And Screen Controller Inputs And Outputs ('05 Model):

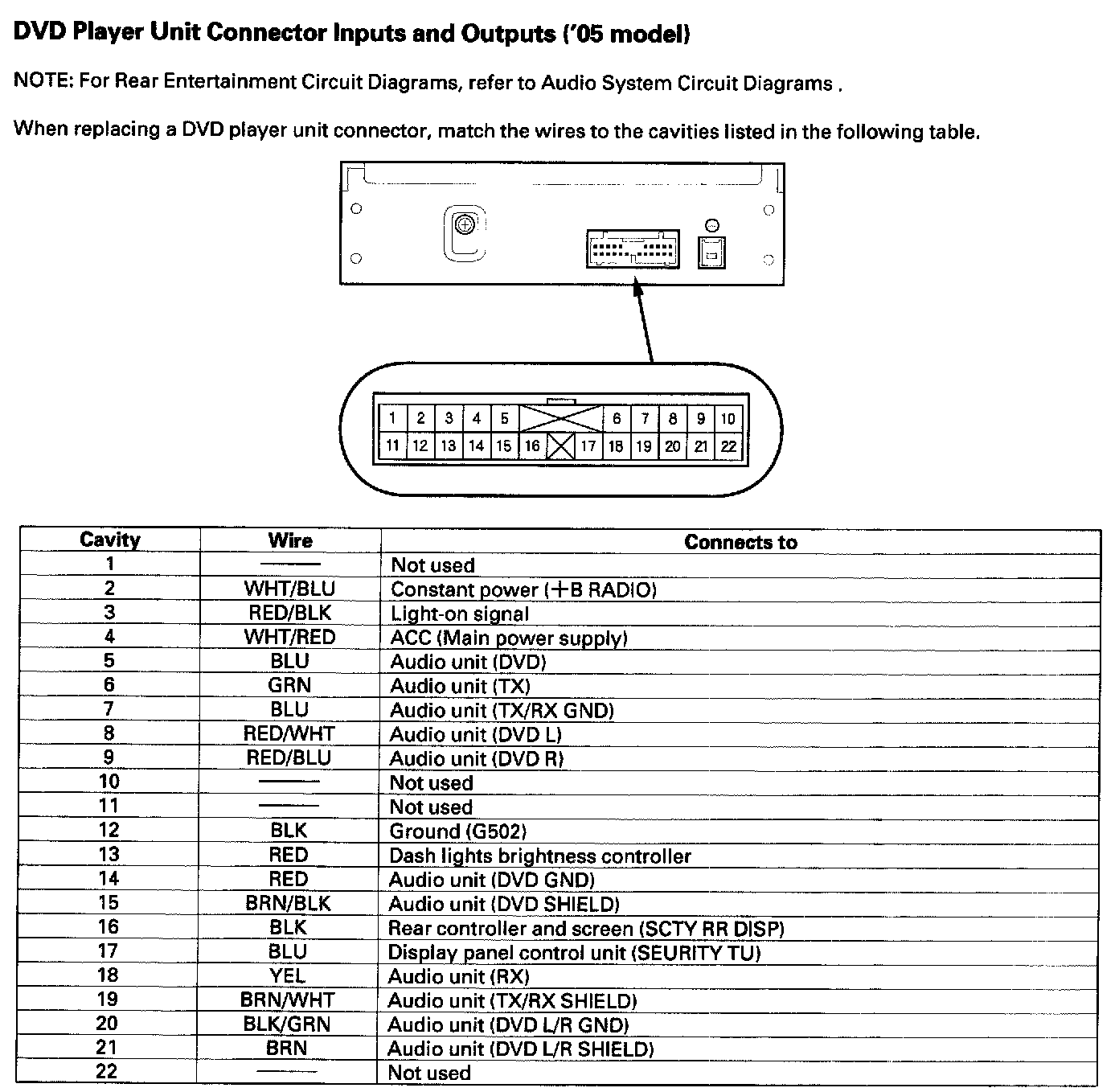

DVD Player Unit Connector Inputs And Outputs ('05 Model):

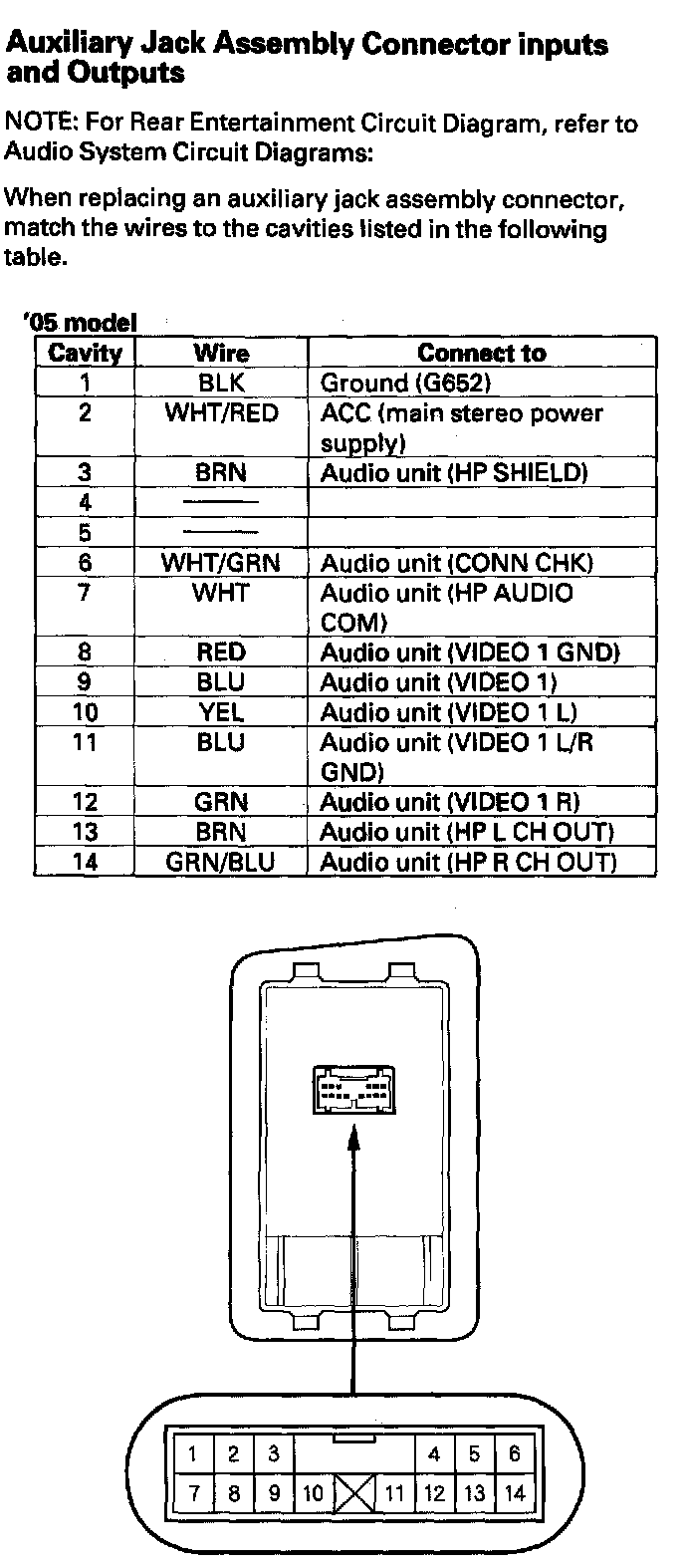

Auxiliary Jack Assembly Connector Inputs And Outputs:
