Oil Pump

Oil Pump

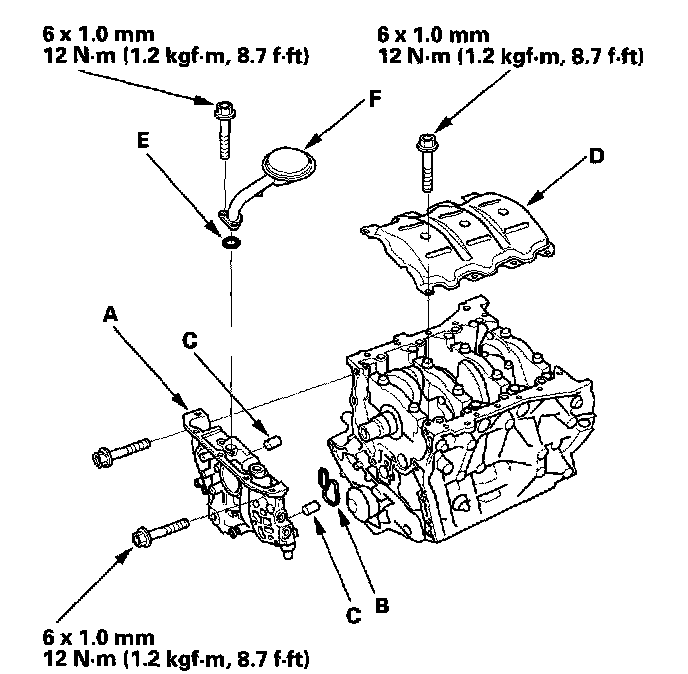

Install the oil pump (A).
1. Install a new crankshaft oil seal in the oil pump.
2. Apply liquid gasket, P/N 08717-0004, 08718-0003, or 08718-0009, evenly to the block mating surface of the oil pump and to the bolt threads.
3. Grease the lip of the oil seal, and apply oil to the new O-ring (B).
4. Install the dowel pins (C), then align the oil pump inner rotor with the crankshaft, and install the oil pump.
5. Clean the excess grease off the crankshaft, and check the seal for distortion.
