Non-Trouble Code Procedures
A/C Compressor Clutch Circuit TroubleshootingNOTE:
- Do not use this troubleshooting procedure if the fans are also inoperative. Refer to the symptom troubleshooting index.
- Before doing symptom troubleshooting, check for power-train DTCs.
1. Check the No. 59 (7.5 A) fuse in the under-hood fuse/relay box, and the No. 3 (7.5 A) fuse in the driver's under-dash fuse/relay box.
Are the fuses OK?
YES - Go to step 2.
NO - Replace the fuse(s), and recheck.

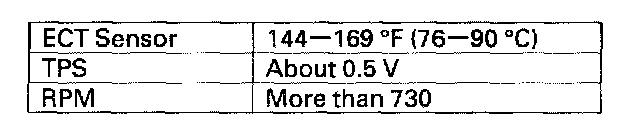

2. Check the engine coolant temperature, throttle position, and idle speed (use the HDS PGM-FI data list, if possible).
Are the coolant temperature, throttle position, and idle speed OK?
YES - Go to step 3.
NO - Troubleshoot and repair the cause of the high engine coolant temperature, low idle, or excessively high throttle position sensor reading.
3. Remove the A/C compressor clutch relay from the under-hood fuse/relay box, and test it.
Is the relay OK?
YES - Go to step 4.
NO - Replace the A/C compressor clutch relay.

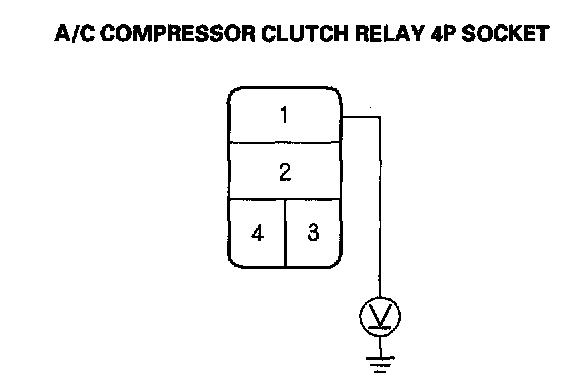

4. Measure the voltage between the No.1 terminal of the A/C compressor clutch relay 4P socket and body ground.
Is there battery voltage?
YES - Go to step 5.
NO - Replace the under-hood fuse/relay box.

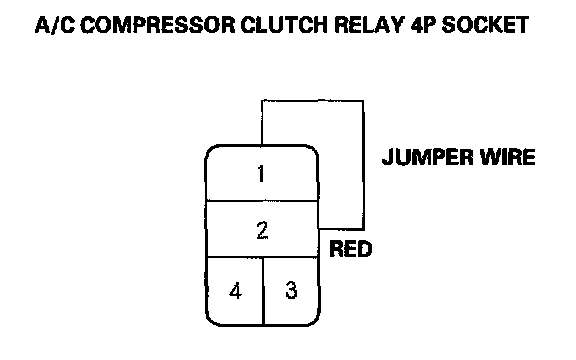

5. Connect the No. 1 and No. 2 terminals of the A/C compressor clutch relay 4P socket with a jumper wire.
Does the A/C compressor clutch click?
YES - Go to step 6.
NO - Go to step 19.
6. Disconnect the jumper wire.
7. Turn the ignition switch ON (II).

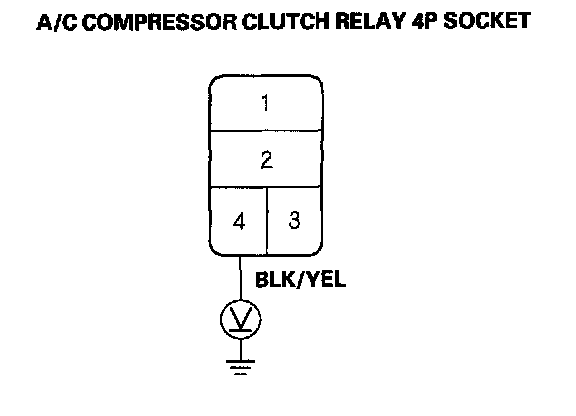

8. Measure the voltage between the No. 4 terminal of the A/C compressor clutch relay 4P socket and body ground.
Is there battery voltage?
YES - Go to step 9.
NO - Repair open in the wire between the No. 3 fuse in the driver's under-dash fuse/relay box and the A/C compressor clutch relay.
9. Turn the ignition switch OFF.
10. Reinstall the A/C compressor clutch relay.
11. Make sure the A/C switch is OFF.
12. Jump the SCS line with the HDS.
13. Turn the ignition switch OFF.
14. Disconnect PCM connector B (56P).
15. Turn the ignition switch ON (II).

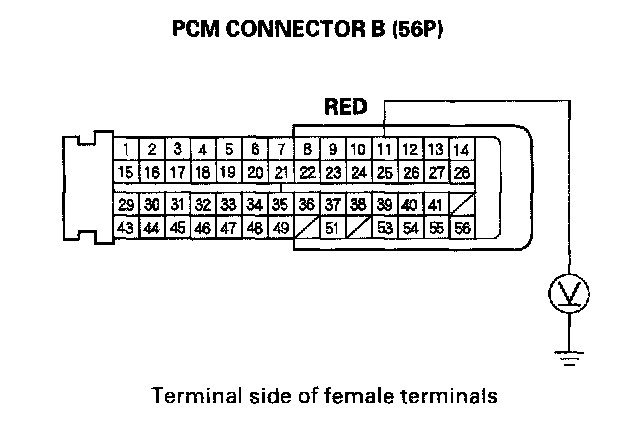

16. Measure the voltage between the No. 11 terminal of PCM connector B (56P) and body ground.
Is there battery voltage?
YES - Go to step 17.
NO - Repair open in the wire between the A/C compressor clutch relay and the PCM.
17. Disconnect the A/C pressure switch 4P connector.

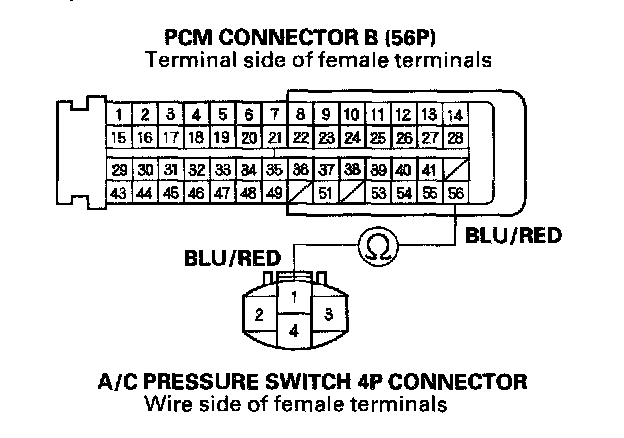

18. Check for continuity between the No. 56 terminal of PCM connector B (56P) and No. 1 terminal of the A/C pressure switch 4P connector.
Is there continuity?
YES - Check for loose wires or poor connections at PCM connector B (56P). If the connections are good, substitute a known-good PCM, and recheck. If the symptom/indication goes away, replace the original PCM.
NO - Repair open in the wire between the PCM and the A/C pressure switch.
19. Disconnect the jumper wire.
20. Disconnect the A/C compressor clutch 1P connector.

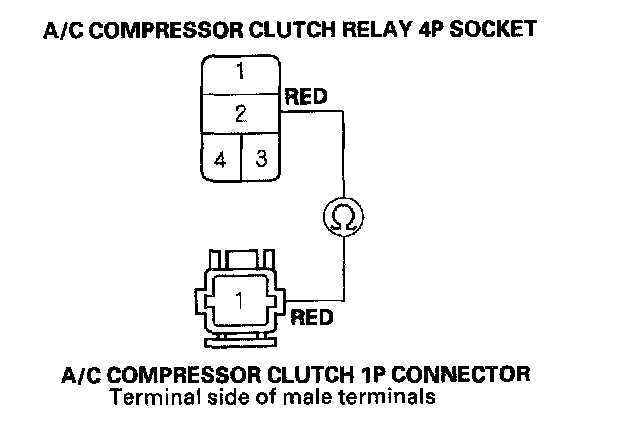

21. Check for continuity between the No. 2 terminal of the A/C compressor clutch relay 4P socket and the No. 1 terminal of the A/C compressor clutch 1P connector.
Is there continuity?
YES - Check the A/C compressor clutch clearance and the A/C compressor clutch field coil.
NO - Repair open in the wire between the A/C compressor clutch relay and the A/C compressor clutch.
