Torque Specifications

Note: Please refer to Automatic Transmission/Transaxle, Service and Repair for overhaul and component torque specs. Service and Repair

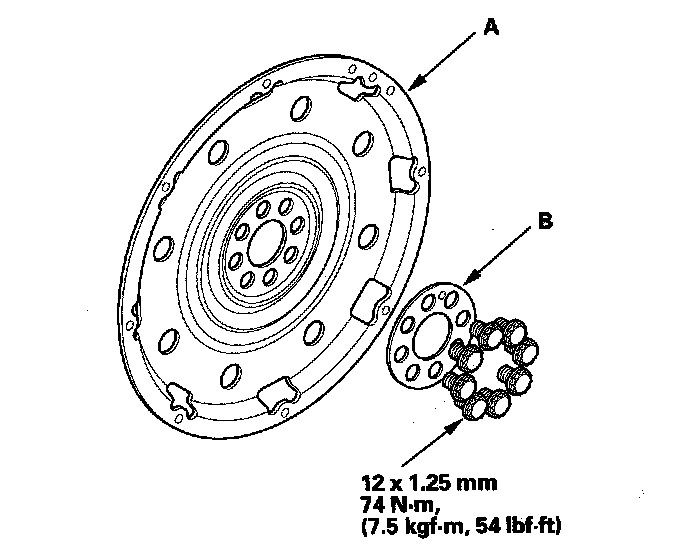

Flex Plate



Tighten the eight bolts in a crisscross pattern.
