Engine
>>
Engine Lubrication
>>
Oil Pan, Engine
Oil Pan, Engine

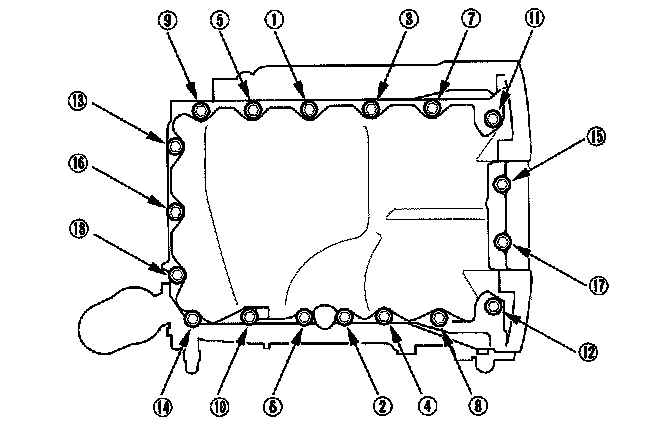

Tighten the bolts in two or three steps. In the final step, tighten all bolts, in sequence, to 12 Nm (1.2 kgf-m, 8.7 ft. lbs.),
