Front Grille Replacement
Front Grille Replacement 1.
Remove the front
bumper.
2.

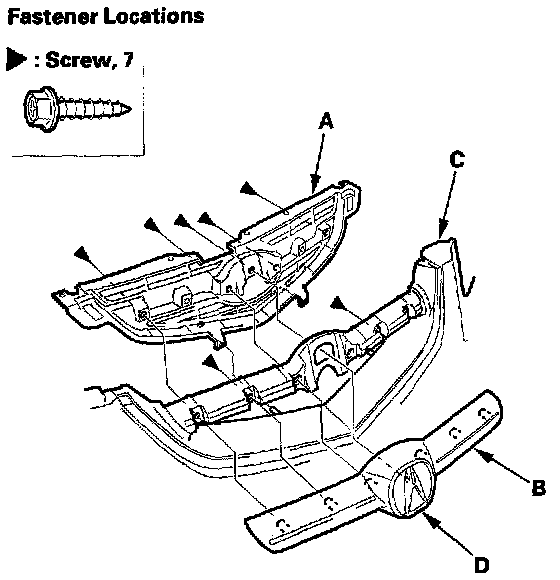

Remove the screws, and remove the front
grille cover (A) and center molding (B) from the front
bumper (C). Take care not to scratch the front bumper.
3.
If emblem (D) replacement is necessary, refer to emblem/sticker replacement.
4.
Install the
grille in the reverse order of removal.
