Center Console Hinge Replacement

Center Console Hinge Replacement

NOTE: Take care not to scratch the center console and related parts.

1. Remove the rear section of the center console.

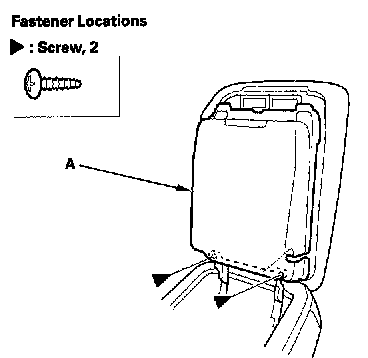

2. Open the armrest tray (A) and remove the screws, then remove the armrest tray.

3. Remove the center console rear cover, then remove the screws.

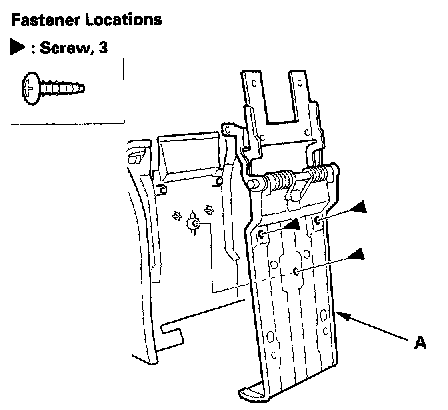

4. Remove the screws, then remove the center console hinge (A).
5. Install the hinge in the reverse order of removal.
