View 26-50: 42

42. Door Lock Actuator, Driver's:



43. Door Lock Actuator, Front Passenger's:

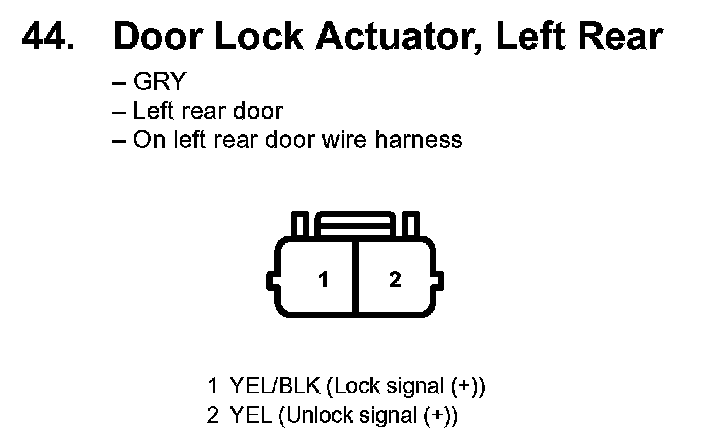

44. Door Lock Actuator, Left Rear:

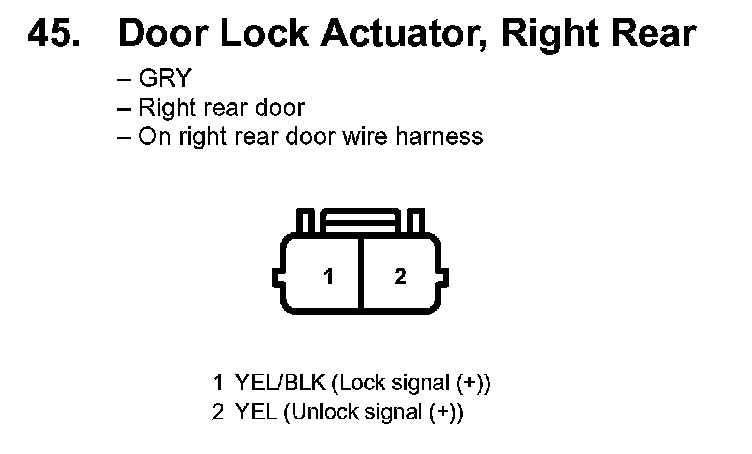

45. Door Lock Actuator, Right Rear:
