Brake Lamp: Service and Repair

Taillight/Brake Light LED Replacement

1. Remove the taillight.

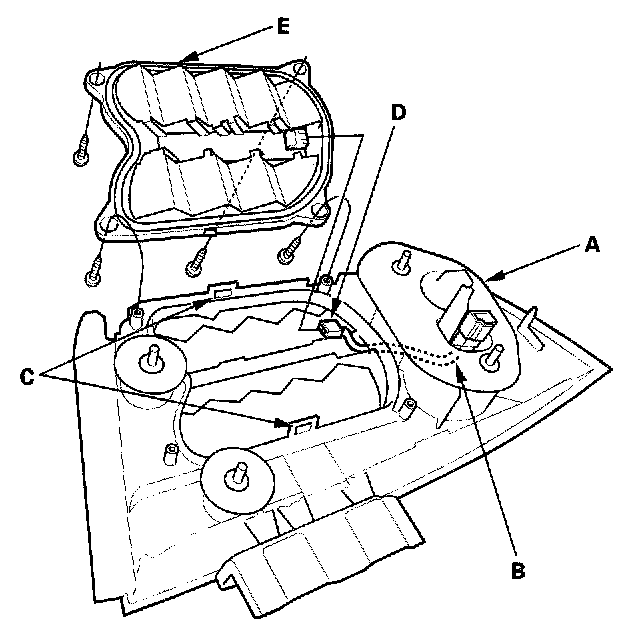

2. Remove the gasket (A) from the taillight.
3. Release and uncoil the taillight harness (B) from the taillight housing. Note the installation of the harness.
4. Remove the four screws and release the two tabs (C). Carefully disconnect the connector (D) from the taillight/brake light LED (E).
5. Inspect the gaskets. If the gaskets are distorted or compressed, replace them.
6. Install the new LED in the reverse order of removal.
