Courtesy Lamp: Testing and Inspection
Ambient Light Test 1.

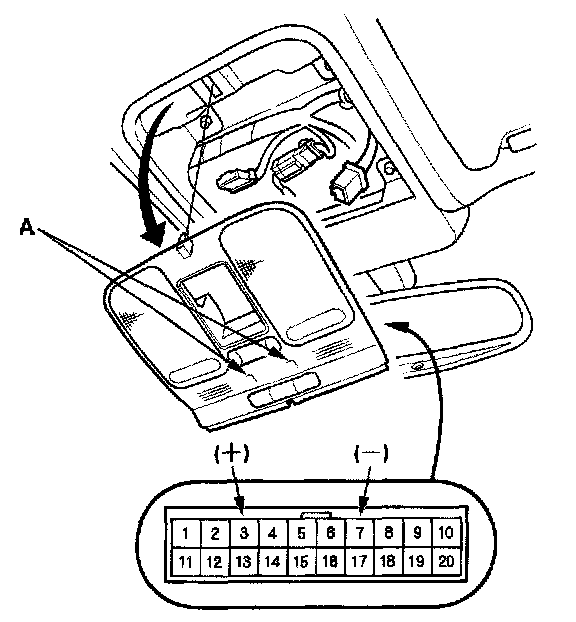

Remove the roof console and disconnect the 20P connector.
2.
Connect the roof console connector terminal No. 3 to battery power and terminal No. 7 to body ground. The ambient lights (A) should turn on. If they do not turn on, replace the roof console.
