Daytime Running Lamp: Service and Repair

Bulb Replacement

Fog Light (USA)/Daytime Running Lights (Canada)

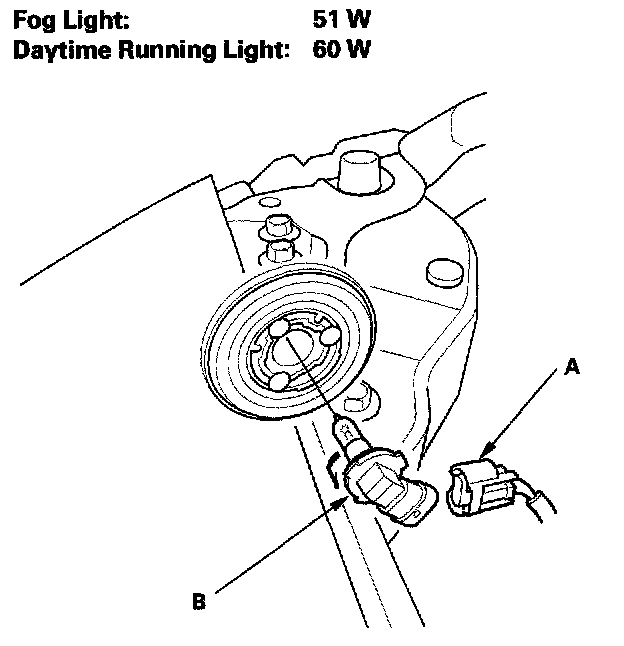

1. Disconnect the 2P connector (A) from the light.
2. Turn the bulb socket (B) 45 degrees counterclockwise to remove it from the headlight housing.
3. Install a new bulb in the reverse order of removal. Make sure the notches in the bulb align with the tabs in the headlight.

NOTE: Do not touch the glass of the bulb with your hands. If necessary, clean the glass area with alcohol.
