Headlight Replacement

Headlight Replacement

1. Remove the front bumper.

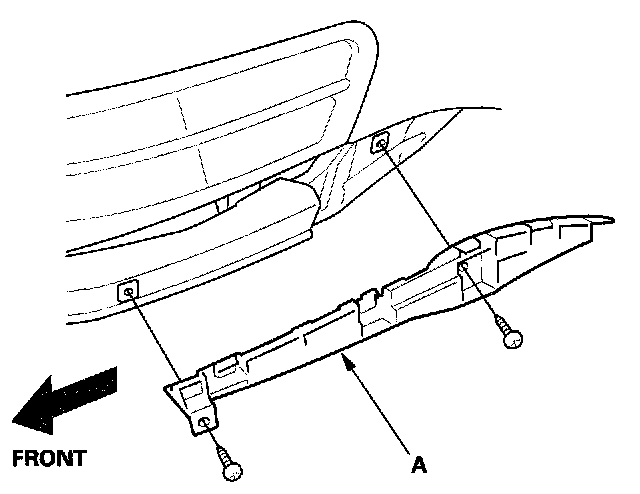

2. Remove the two screws and front bumper spacer (A).

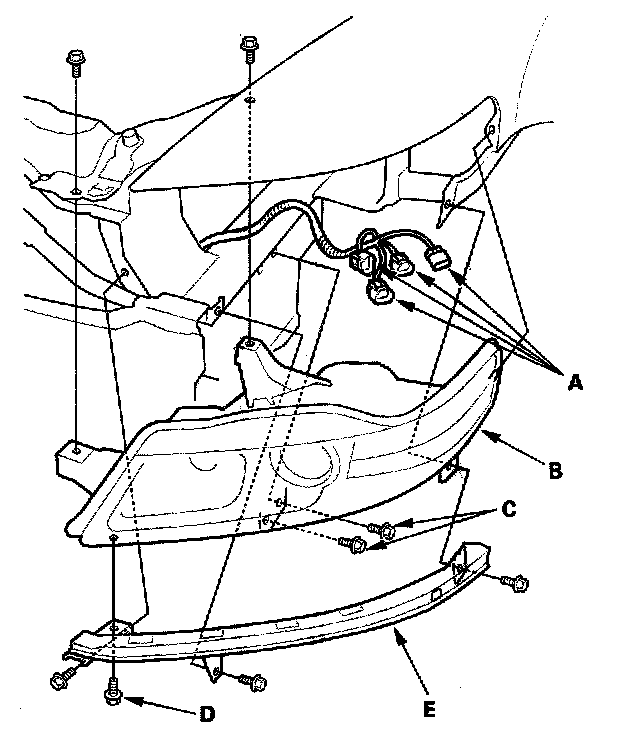

3. Remove the connectors (A) from the headlight assembly (B).
4. Remove the seven mounting bolts and the headlight. For the right headlight assembly, remove the washer reservoir tank to access mounting bolts (C).
5. Remove the bolt (D) and the corner upper beam (E) from the headlight.
6. Install the headlight in the reverse order of removal.
7. After replacement, adjust the headlights to local requirement.
