Vanity Lamp: Service and Repair

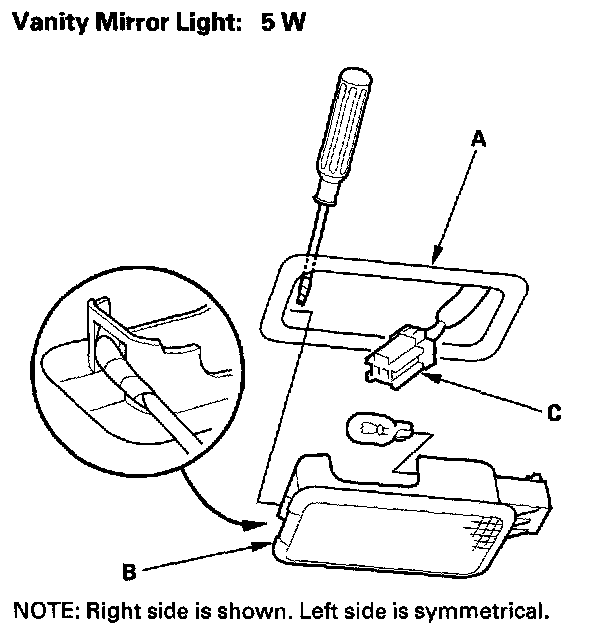

Vanity Mirror Light Replacement

1. Wrap the tip of the screwdriver in tape.




2. Carefully slide the screwdriver between the metal mounting ring (A) and the headliner until the tip of the screwdriver is resting against the lens locking tab.
3. Rotate the screwdriver handle toward the center of the vehicle while pressing the tip of the screwdriver against the locking tab to release the lens.
4. Pull the lens (B) down.
5. Disconnect the 2P connector (C) from the light.
6. Install in the reverse order of removal.
