Vanity Lamp: Testing and Inspection
Vanity Mirror Light Switch Test 1.
Remove the sunvisor.
2.

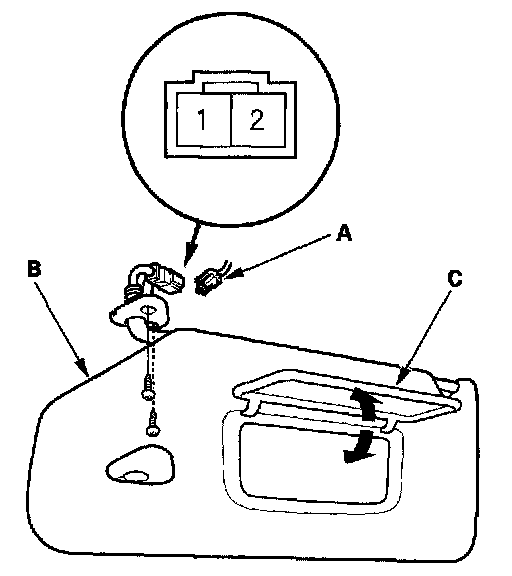

Disconnect the 2P connector (A) from the sunvisor (B).
3.
Check for continuity between the No. 1 and No. 2 terminals.
-
With the vanity mirror cover (C) opened, there should be continuity.
-
With the vanity mirror cover (C) closed, there should be no continuity.
4.
If the continuity check is not as specified, replace the sunvisor.
