Shift Interlock Solenoid: Service and Repair

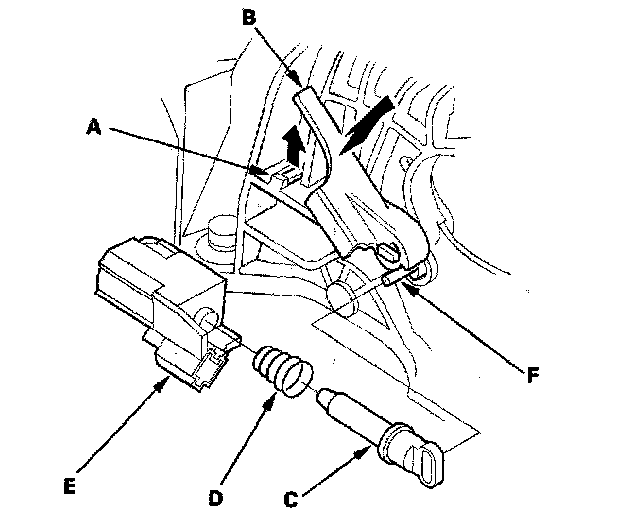

Shift Lock Solenoid Replacement1. Remove the center console.
2. Release the tab (A) retaining the shift lock solenoid.
3. Raise the shift lock solenoid bushing (B) just enough to slide the shift look solenoid out.
4. Install the shift lock solenoid plunger (C) and plunger spring (D) in the new shift lock solenoid (E).
5. Apply silicon grease to joint of the shift lock solenoid plunger, if necessary.
6. Install the new shift lock solenoid by aligning the joint of the shift lock solenoid plunger with the tip of the shift lock stop (F).
7. Install the center console.
