Navigation Module: Locations

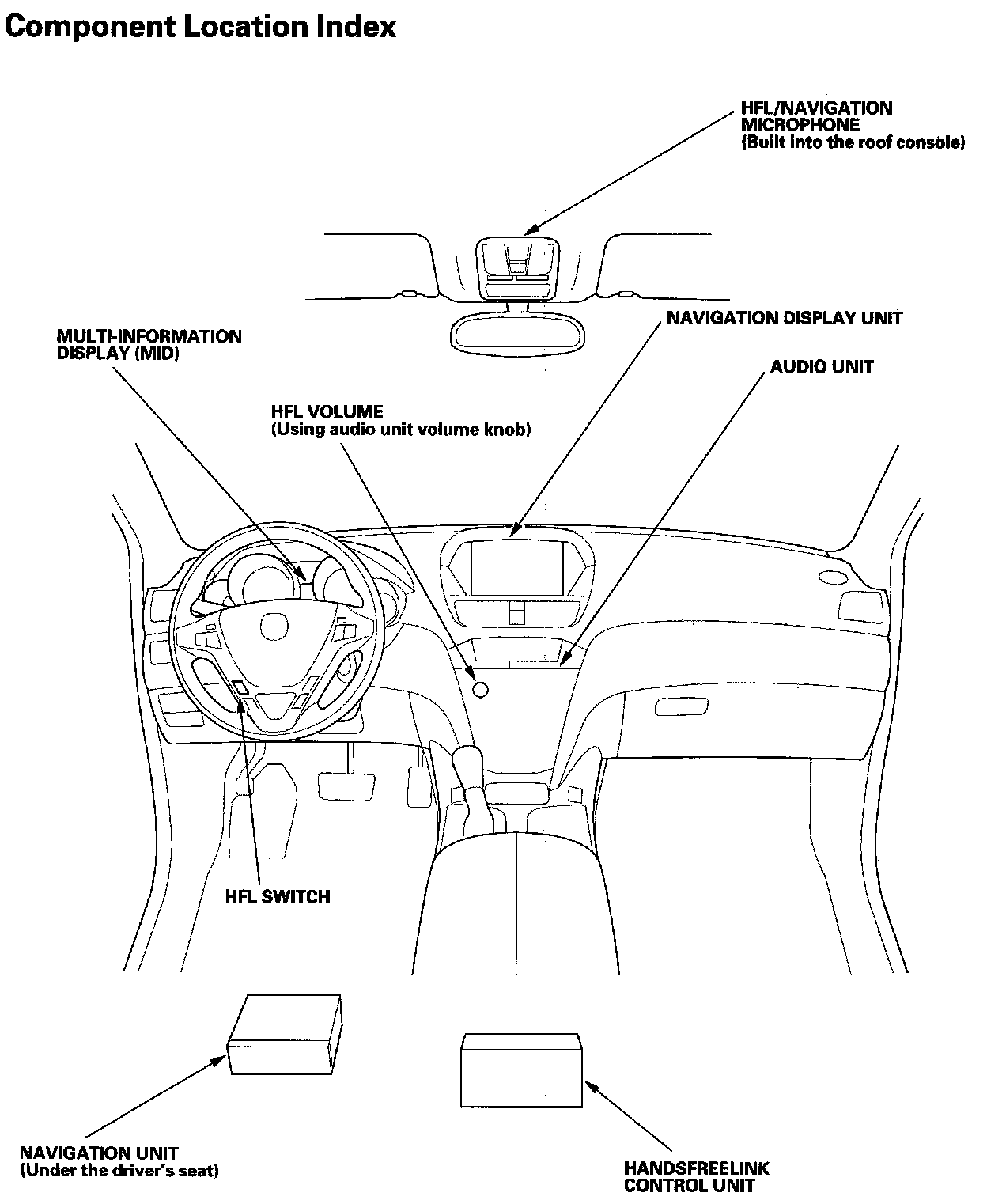

HandsFreeLink System Component Location Index:

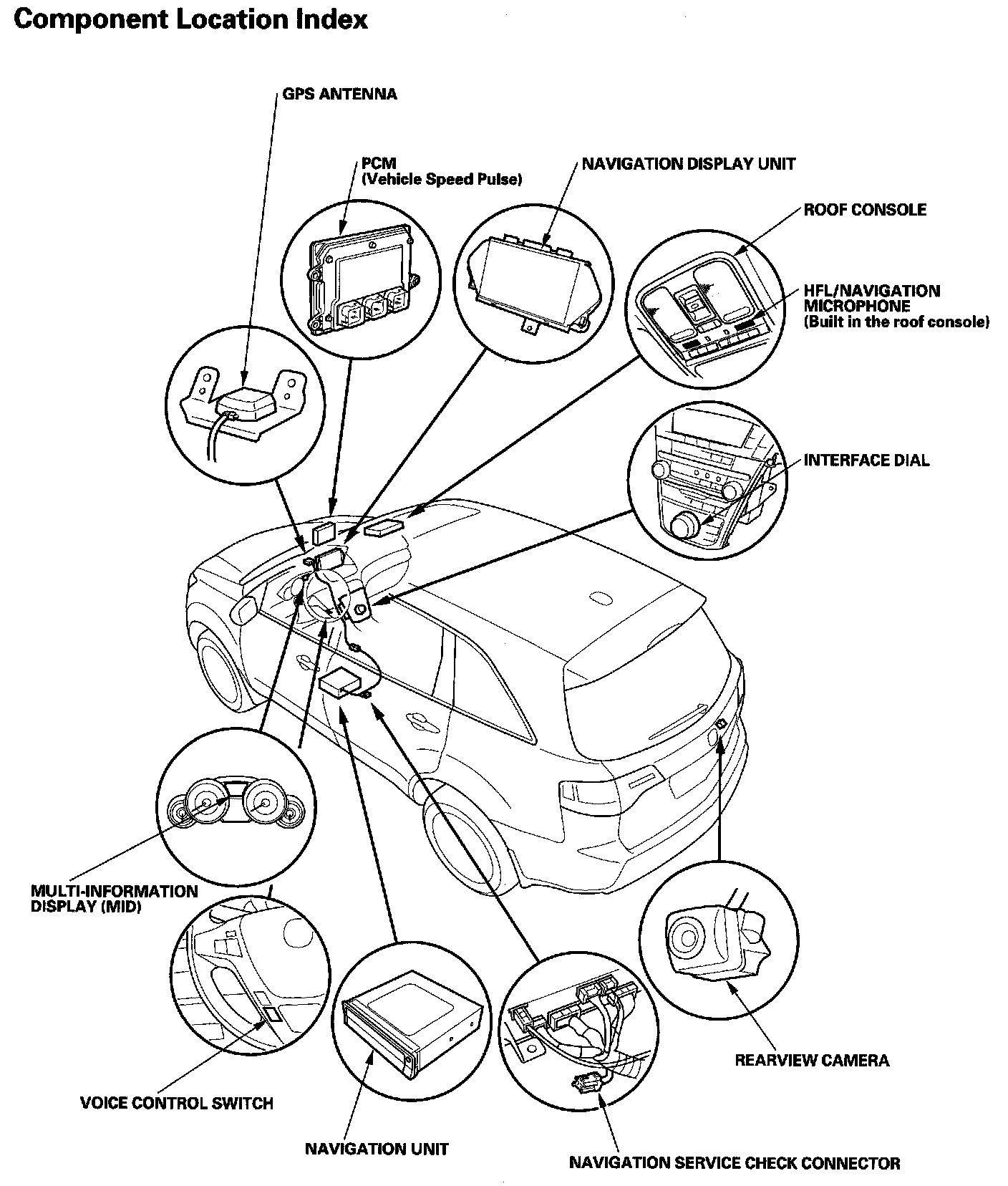

Navigation System Component Location Index:

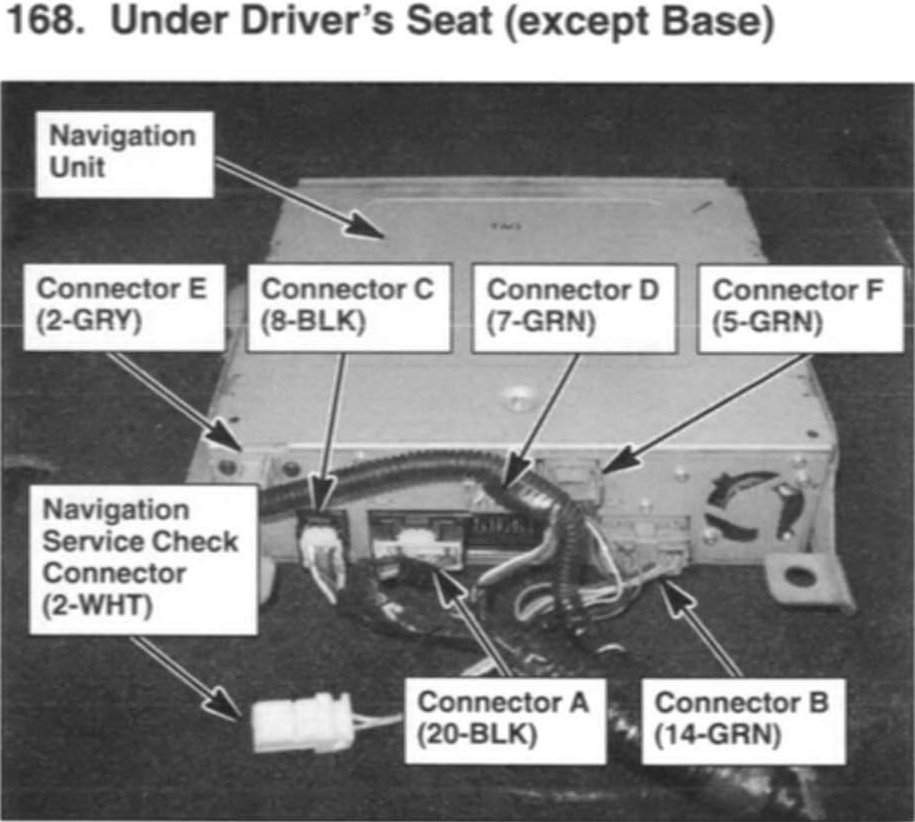

Relay and Control Unit Locations Seat:
