Power Tilt/Telescopic Steering Switch Test/Replacement

Power Tilt/Telescopic Steering Switch Test/Replacement

1. Remove the steering column covers.

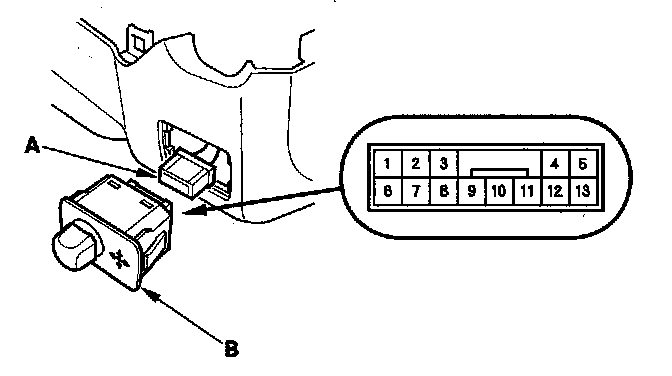

2. Disconnect the 13P connector (A) from the power tilt/telescopic steering switch (B).

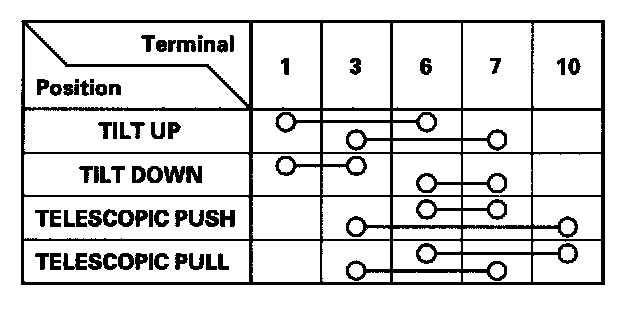

3. Check for continuity between the terminals in each switch position according to the table.

4. If the continuity is not as specified, replace the switch.
