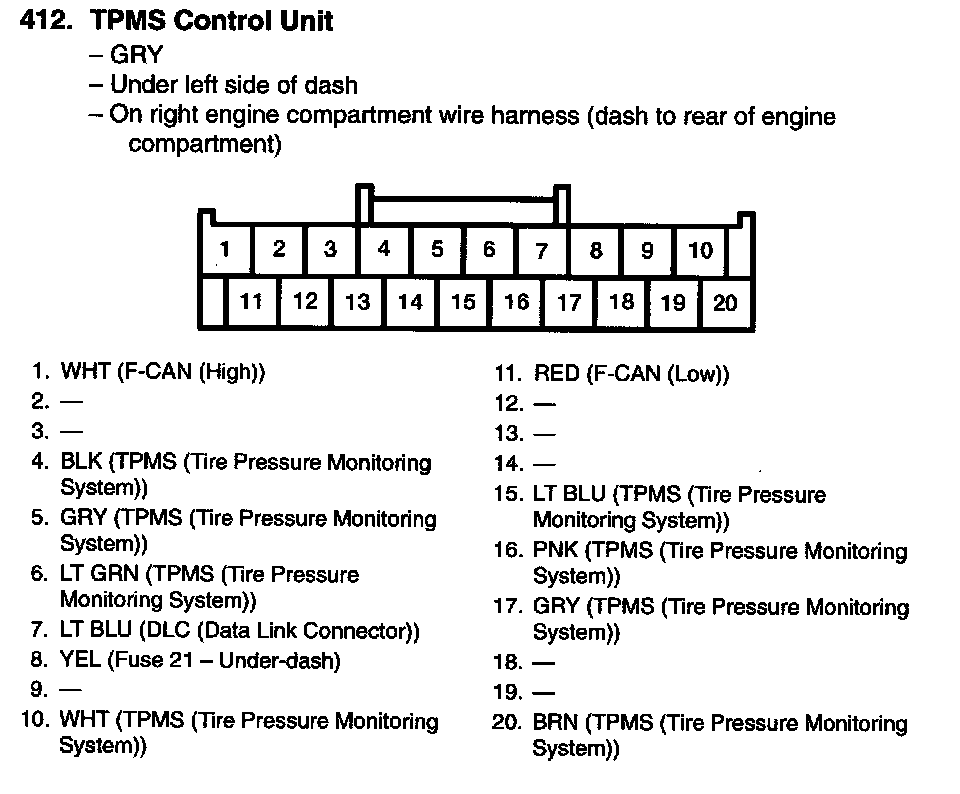

Tire Pressure Module

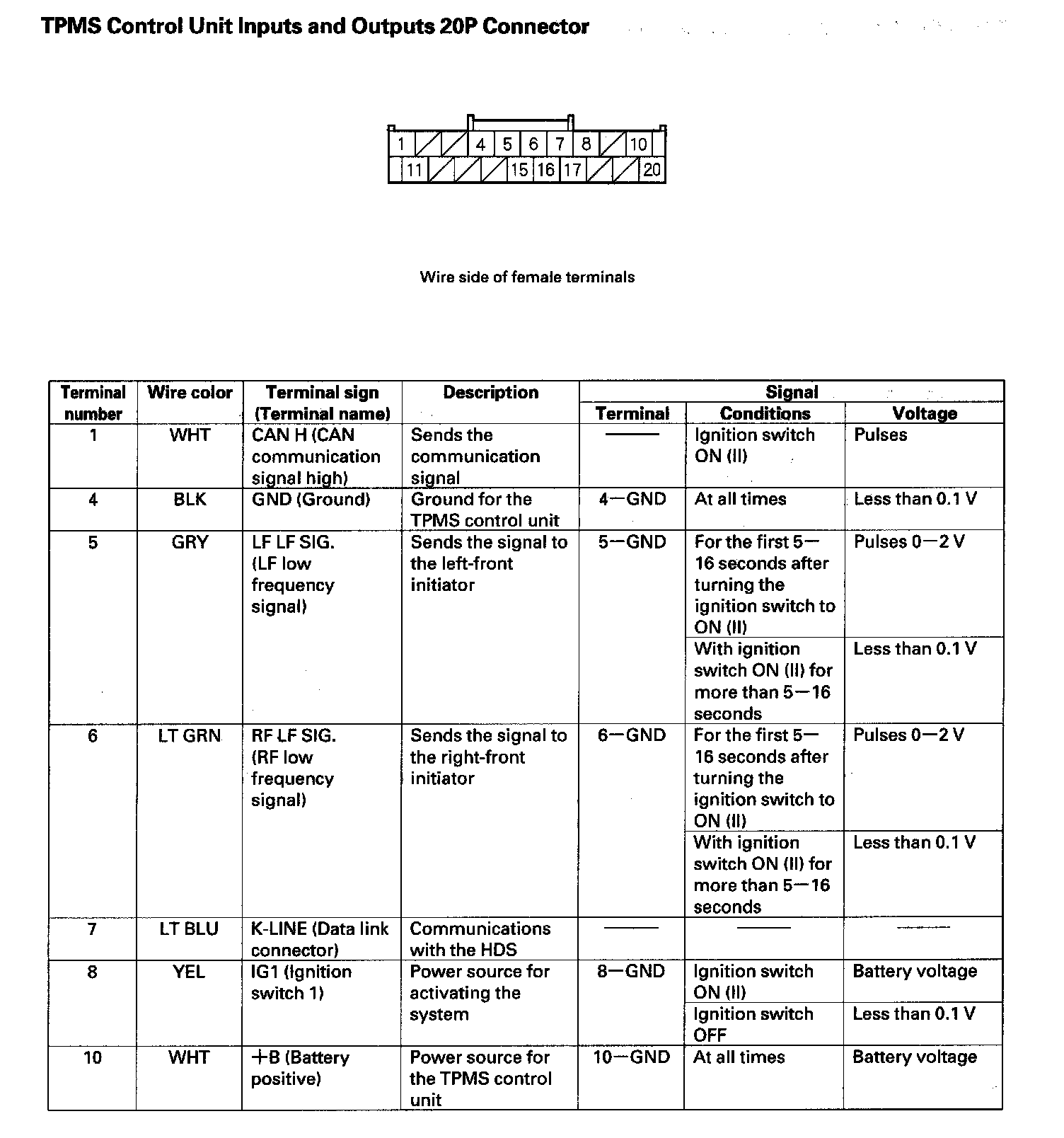

TPMS Control Unit Inputs and Outputs 20P Connector (Part 1):

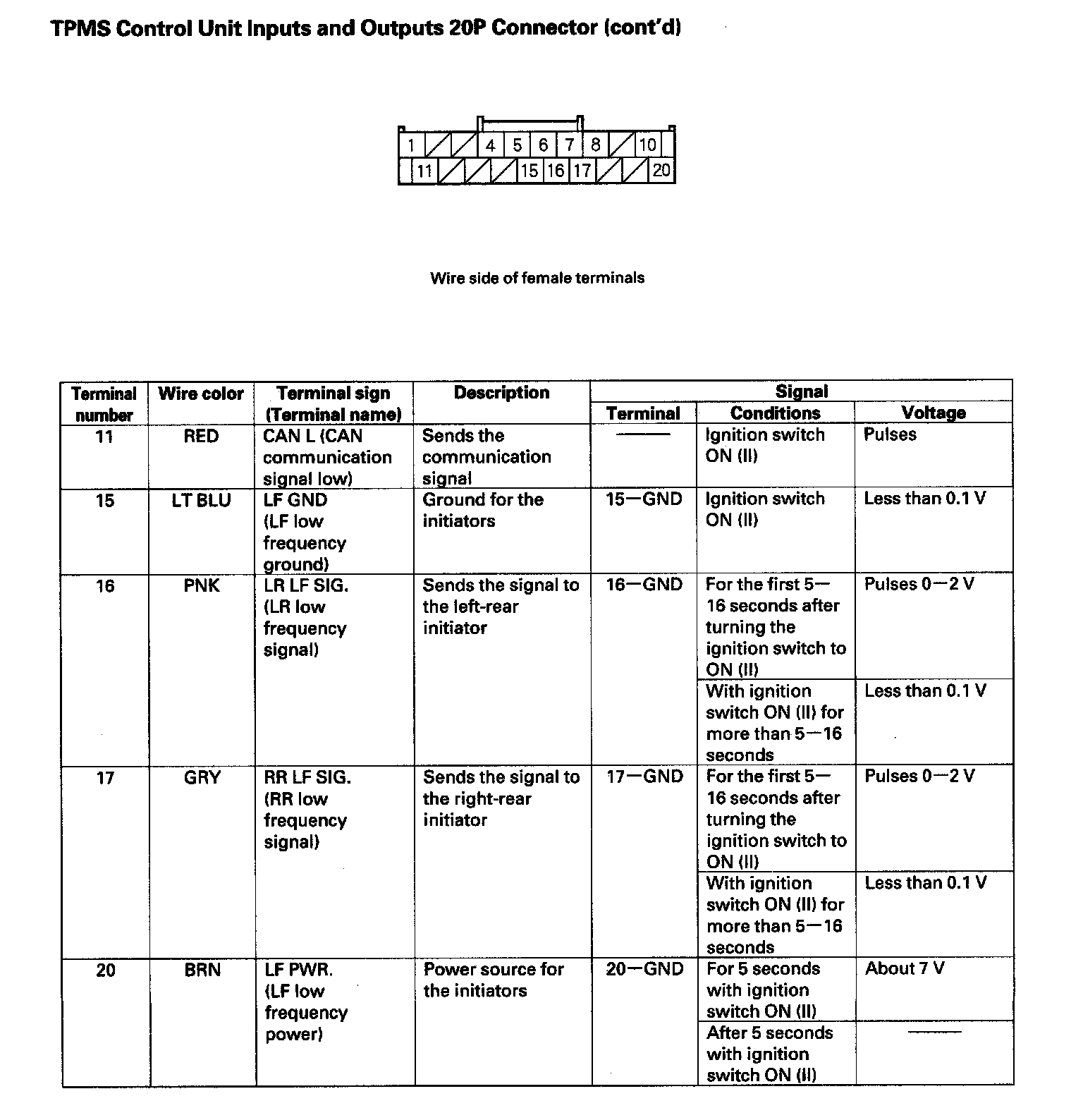

TPMS Control Unit Inputs and Outputs 20P Connector (Part 2):
