Rear Climate Control

Rear Blower Motor Replacement

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Remove the center console.

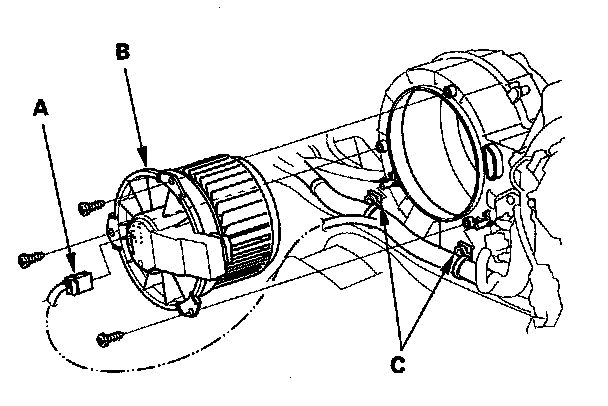

2. Disconnect the 2P connector (A) from the rear blower motor (B), then remove the wire harness clips (C). Remove the self-tapping screws and the rear blower motor from the rear HVAC unit.

3. Install the motor in the reverse order of removal.
