EGR Valve: Service and Repair

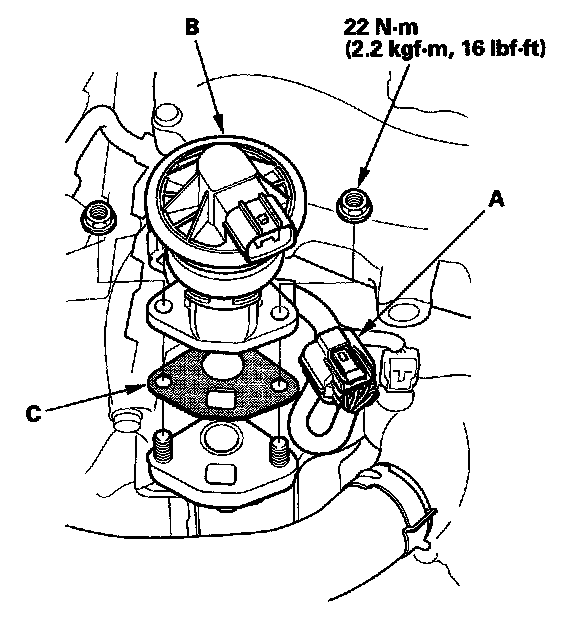

EGR Valve Replacement 1.
Remove the engine cover.
2.
Remove the main under-hood fuse box.
3.
Disconnect the
EGR valve connector (A).
4.
Remove the
EGR valve (B).
5.
Install the parts in the reverse order of removal with a new gasket (C).
