Headlight Washer Switch Test/Replacement

Headlight Washer Switch Test/Replacement

Canada models

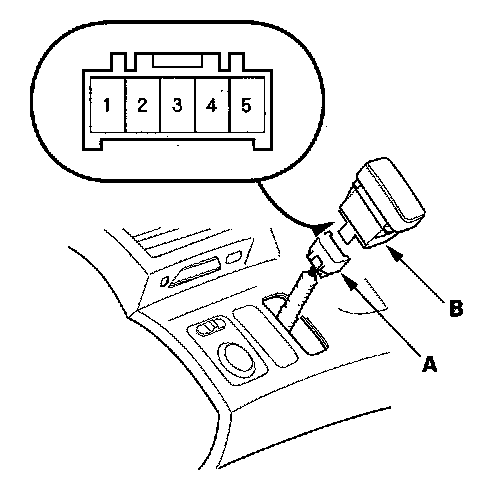

1. Carefully pry the switch out from the dashboard.
2. Disconnect the 5P connector (A) from the headlight washer switch (B).

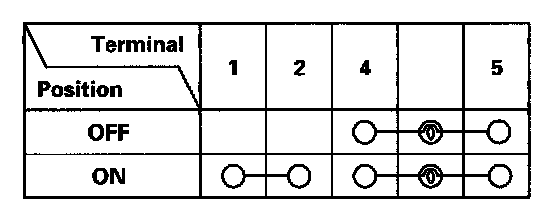

3. Check for continuity between the terminals in each switch position according to the table.

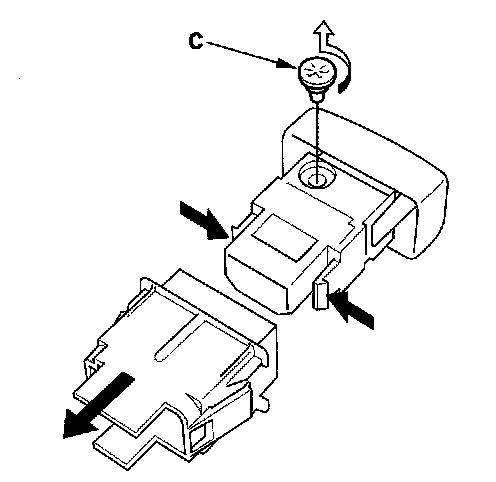

4. If the continuity is not as specified, replace the bulb (C) or the headlight washer switch.

5. Install the switch in the reverse order of removal.
