Wiper Switch: Service and Repair

Wiper/Washer Switch Replacement

NOTE: The wiper/washer switch is built into the combination switch control unit. For the wiper/washer test, refer to the combination switch control unit input test.

1. Remove the dashboard lower cover.
2. Remove the steering column covers.

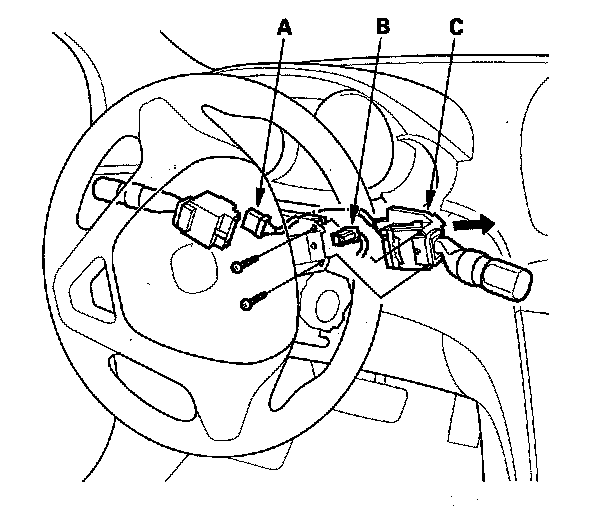

3. Disconnect the combination light switch 20P connector (A), and dashboard wire harness 8P connector (B) from the wiper/washer switch (C).






4. Remove the two screws, then slide out the wiper/washer switch.
