HFL Control Unit Removal/Installation

HFL Control Unit Removal/Installation

1. Remove the glove box.
2. Remove the passenger's under-dash fuse/relay box.

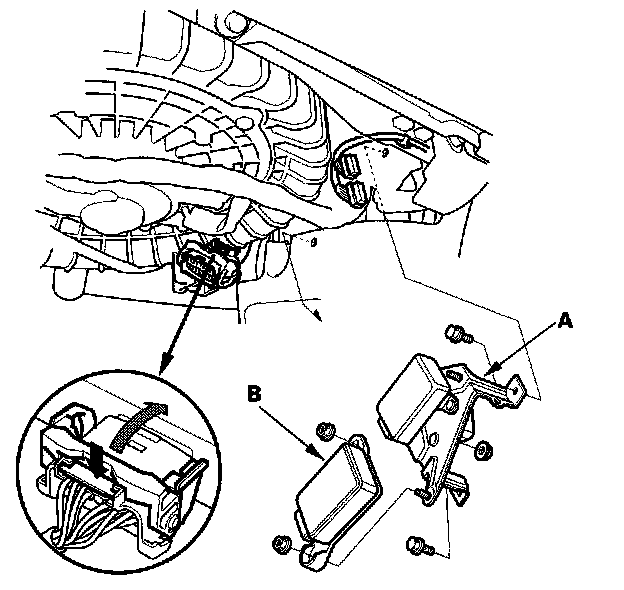

3. Remove the bolts from the bracket (A) that holds the HFL control unit (B), the throttle actuator control module, and the ACC unit.

4. Disconnect the connectors from the HFL control unit.
5. Remove the HFL control unit from the bracket.
6. Install the HFL control unit in the reverse order of removal.
