HFL Switch Test/Replacement
HFL Switch Test/Replacement 1.
Remove the driver's airbag.
2.

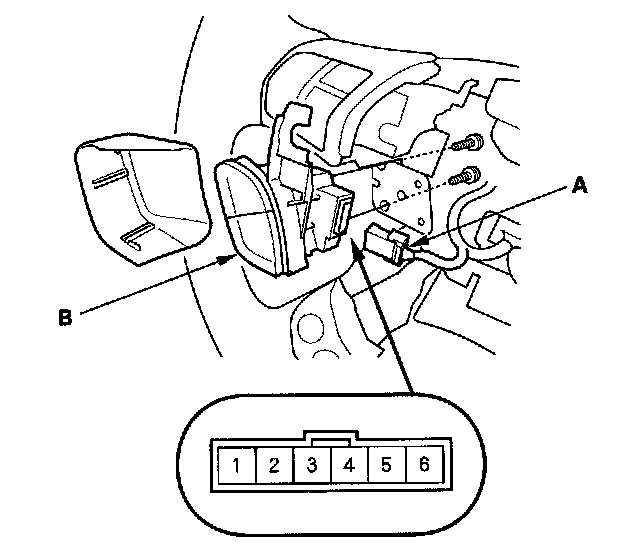

Disconnect the 6P connector (A).
3.
Remove the two screws and HFL switch (B).
4.

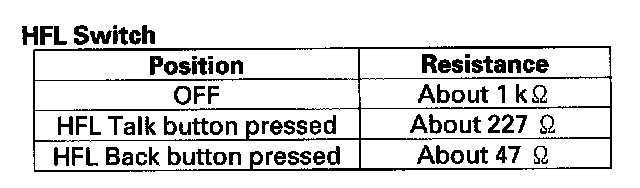

Measure the resistance between the No. 5 and No. 2 terminals in each switch position according to the table.
5.
If the resistance is not as specified, replace the switch.
