Switch Test/Replacement
Switch Test/Replacement 1.
Remove the driver's door panel.
2.

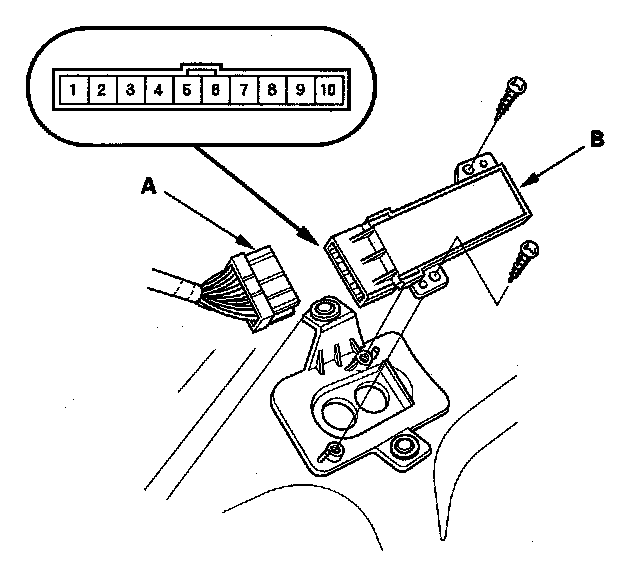

Disconnect the 10P connector (A) from the switch (B).
3.
Check for continuity between the No. 1 and No. 9 terminals.
-
With the switch pushed, there should be continuity.
-
With the switch released, there should be no continuity.
4.
If the continuity is not as specified, replace the switch.
