Interior LF Antenna Test

Interior LF Antenna Test

NOTE: Before testing, check for DTCs. If any DTCs are indicated, troubleshoot the indicated DTCs first.

1. Connect the HDS to the data link connector (DLC).
2. Turn the ignition switch ON (II) with the built-in key.
3. Select the KEYLESS ACCESS from the SYSTEM SELECT menu with the HDS.
4. Select the SELF CHECK and if any malfunction is found, troubleshoot it first.

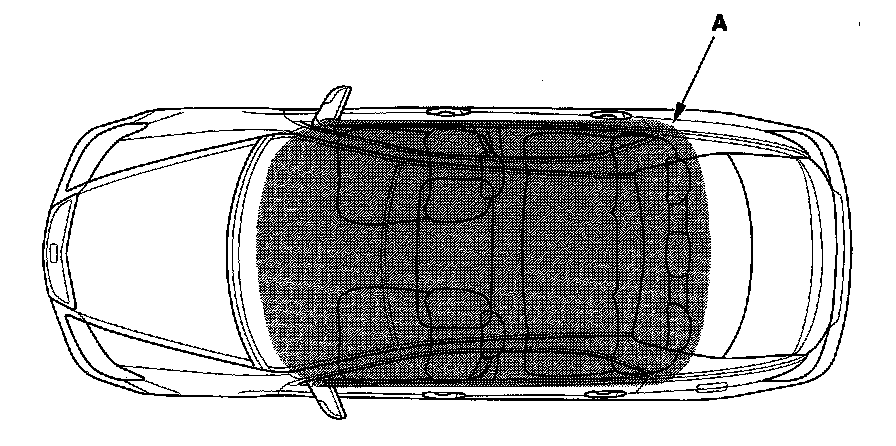

5. Select the FUNCTION TEST, and do the antenna driving test by checking the transmitting area (A) between the LF antenna and the remote (except on the dashboard, in the glove box, door pockets, console box, and other enclosed areas).

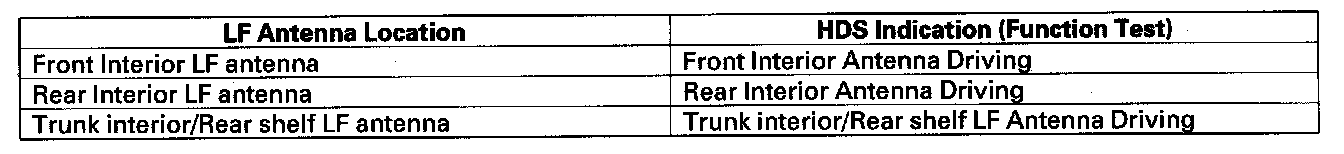

NOTE: Function Test cannot operate at the same time, check the LF antennas one at a time.
