Steering Angle Neutral Position Memorization
Steering Angle Neutral Position MemorizationWhenever following operations are done, the steering angle neutral position memorization must be done.
- The steering wheel replacement
- The combination switch replacement
- Front wheel alignment

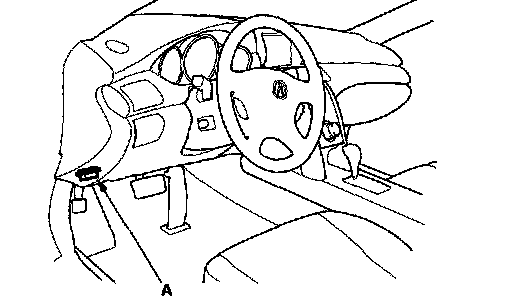

1. With the ignition switch OFF, connect the HDS to the 16P DLC (A) behind the driver's dashboard lower cover.
2. Turn the ignition switch ON (II).
3. From the mode menu, select miscellaneous test, then select neutral menu and follow the screen prompts.
NOTE: See the HDS help menu for specific instructions.
