View 1-25: 14

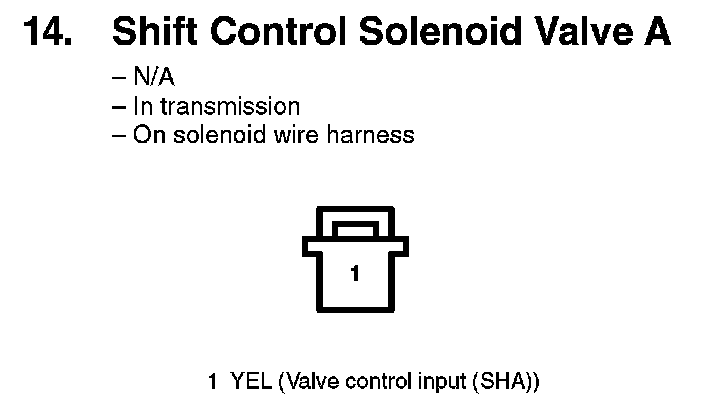

14. Shift Control Solenoid Valve A:

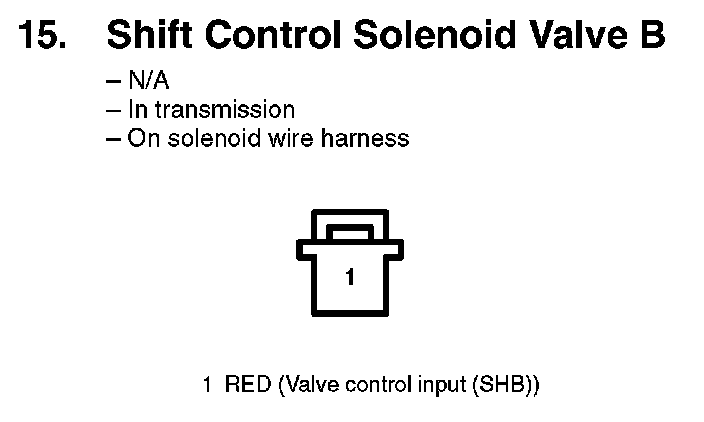

15. Shift Control Solenoid Valve B:



16. Shift Control Solenoid Valve C:



17. Shift Control Solenoid Valve D:



131. Shift Solenoid Valve:
