View 26-50: 40

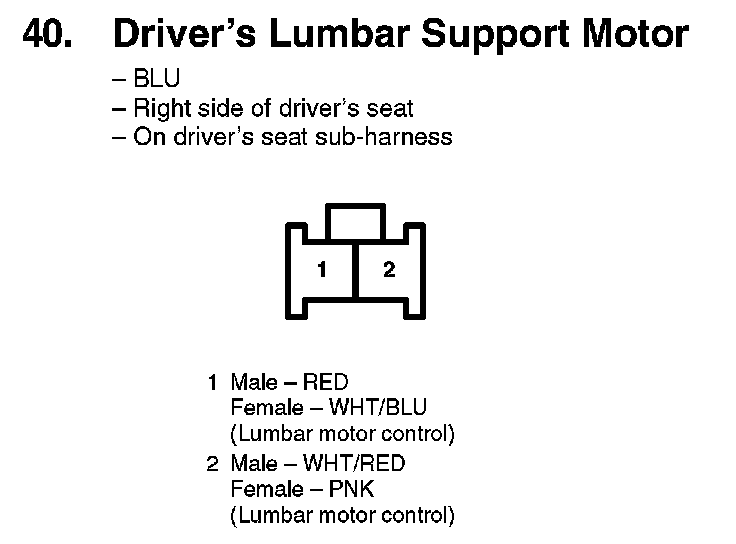

40. Driver's Lumbar Support Motor:

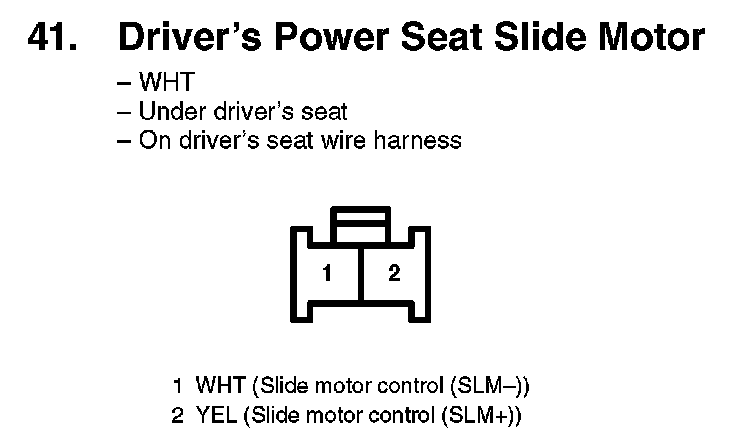

41. Driver's Power Seat Slide Motor:

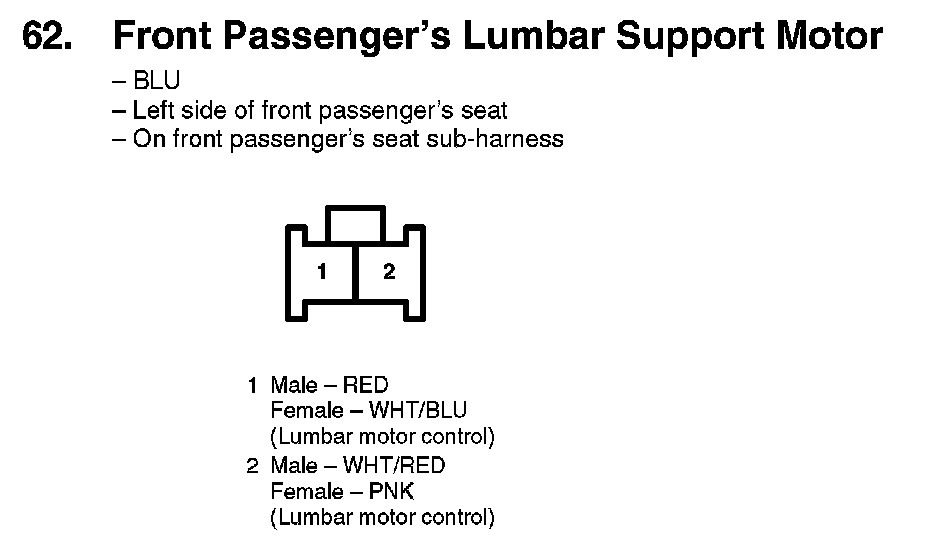

62. Front Passenger's Lumbar Support Motor:

View 26-50: 40

40. Driver's Lumbar Support Motor:

41. Driver's Power Seat Slide Motor:

62. Front Passenger's Lumbar Support Motor:

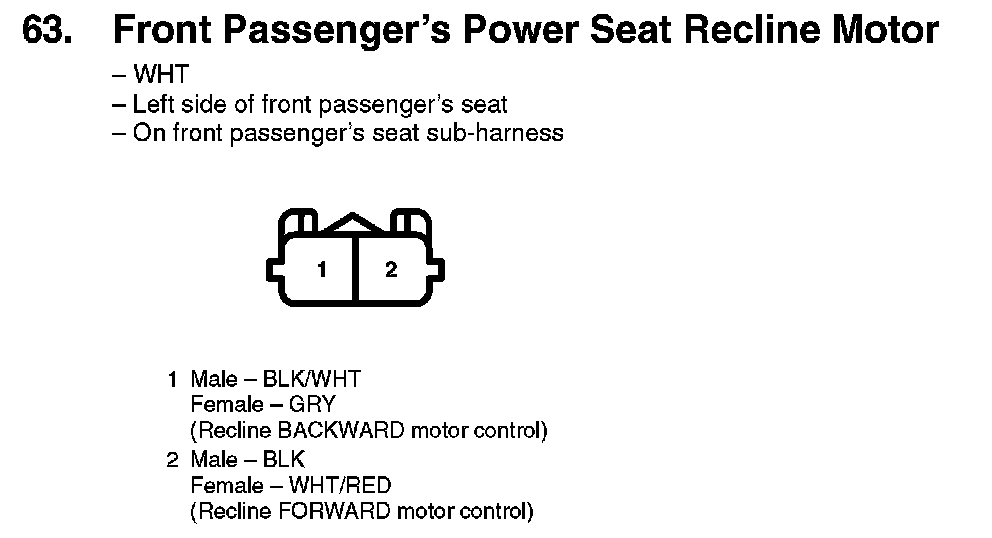

63. Front Passenger's Power Seat Recline Motor:

64. Front Passenger's Power Seat Slide Motor:

204. Driver's Power Seat Front Up-down Motor/Position Sensor:

205. Driver's Power Seat Rear Up-down Motor/Position Sensor:

206. Driver's Power Seat Recline Motor/Position Sensor:
