System Diagram

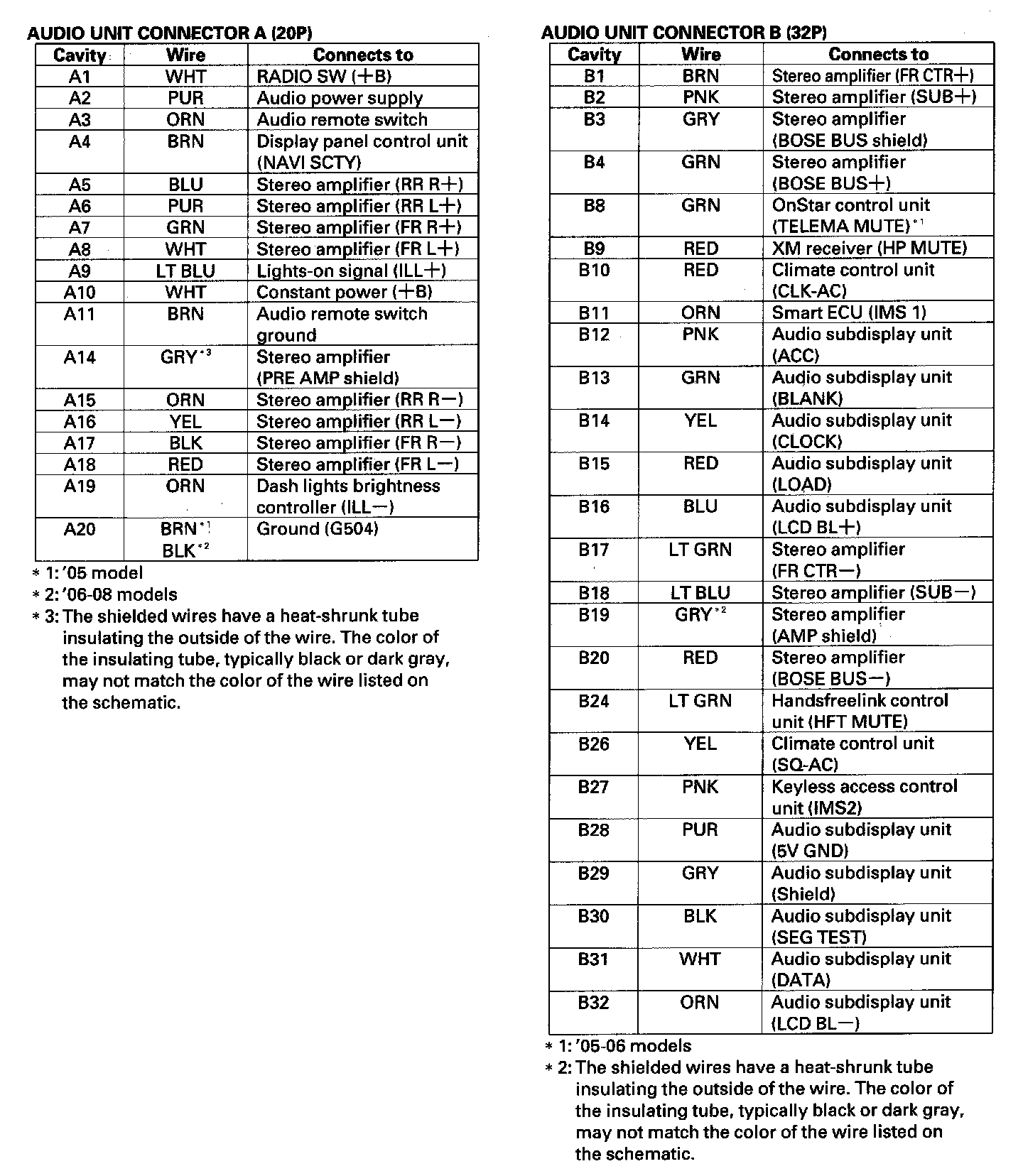

Audio Unit Connector For Inputs And Outputs Part 1:

Audio Unit Connector For Inputs And Outputs Part 2:

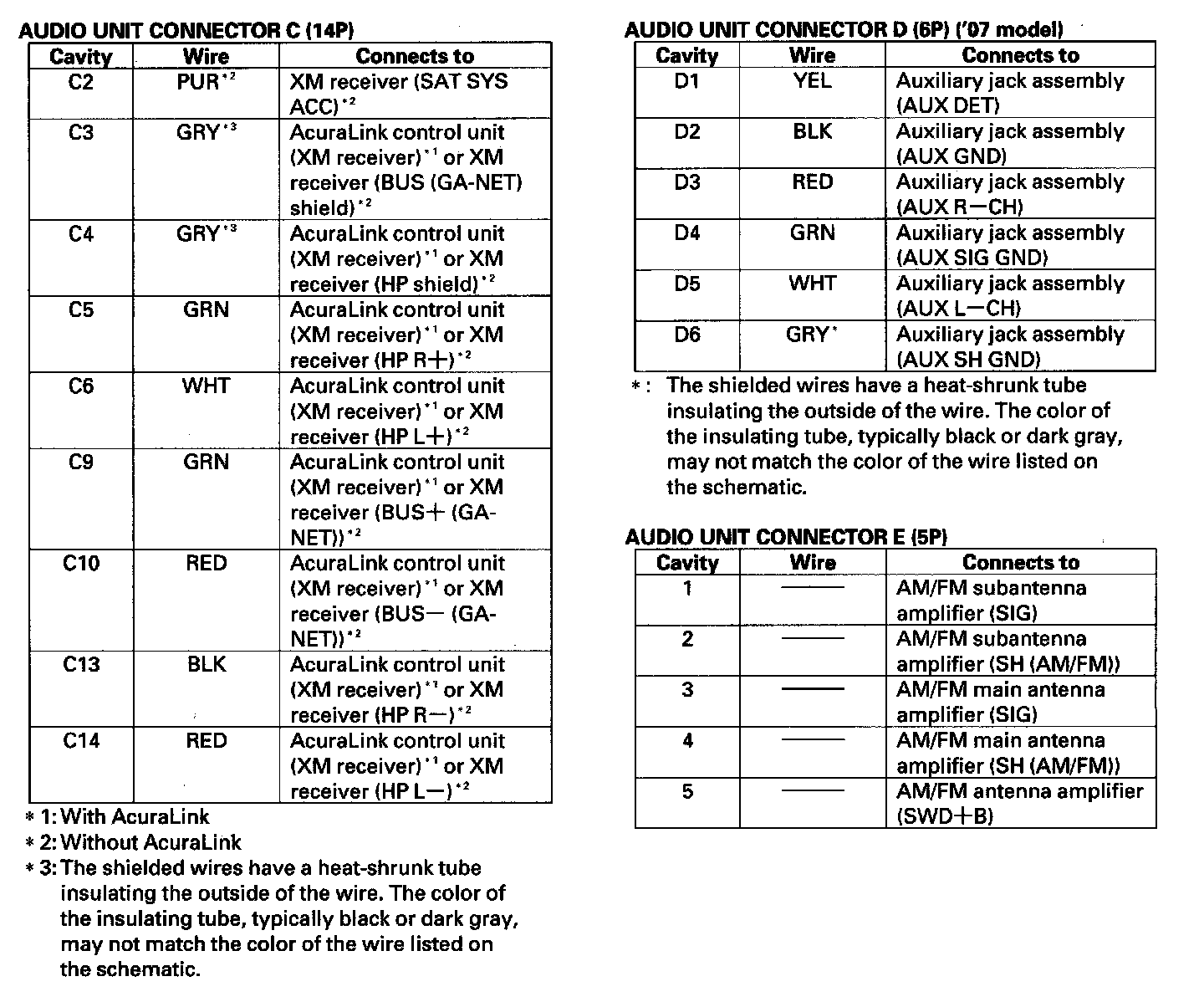

Audio Unit Connector For Inputs And Outputs Part 3:

Stereo Amplifier Connector For Inputs And Outputs Part 1:

Stereo Amplifier Connector For Inputs And Outputs Part 2:

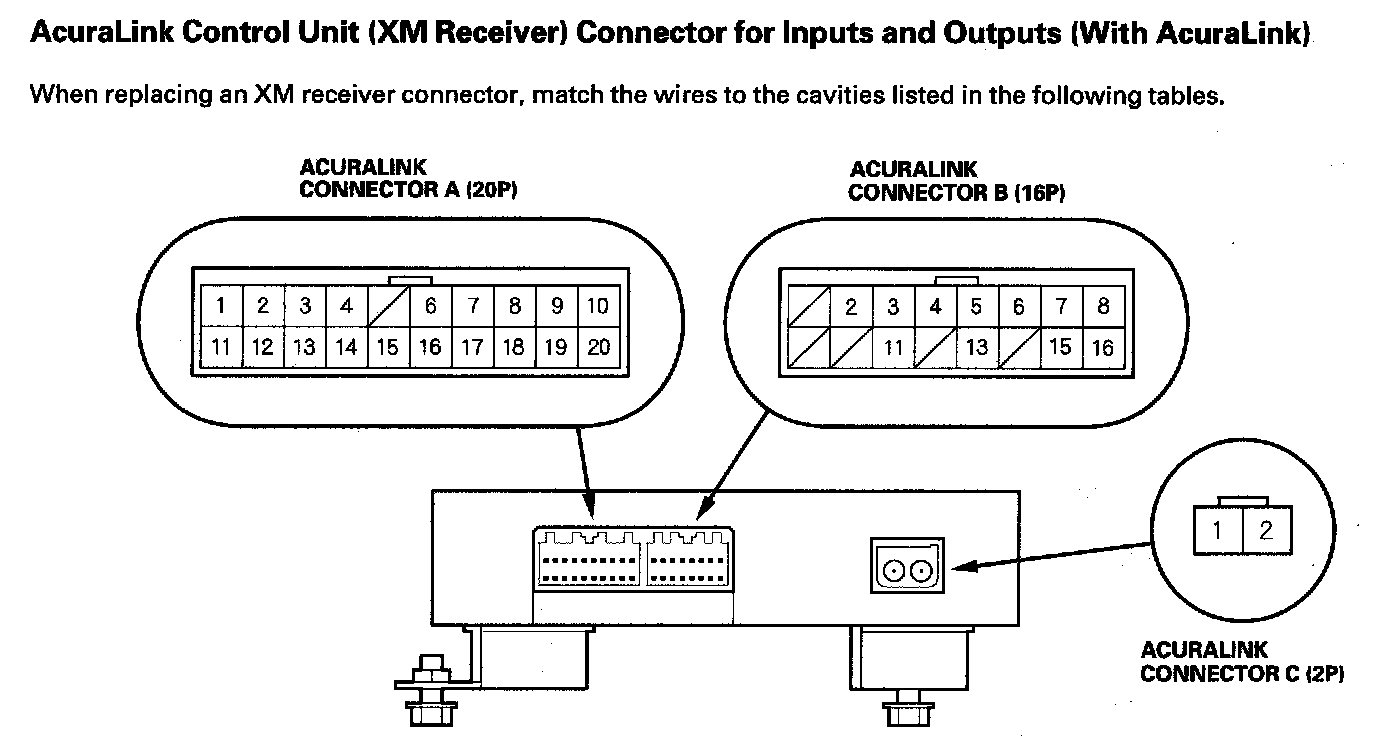

AcuraLink Control Unit (XM Receiver) Connector For Inputs And Outputs (With AcuraLink) Part 1:

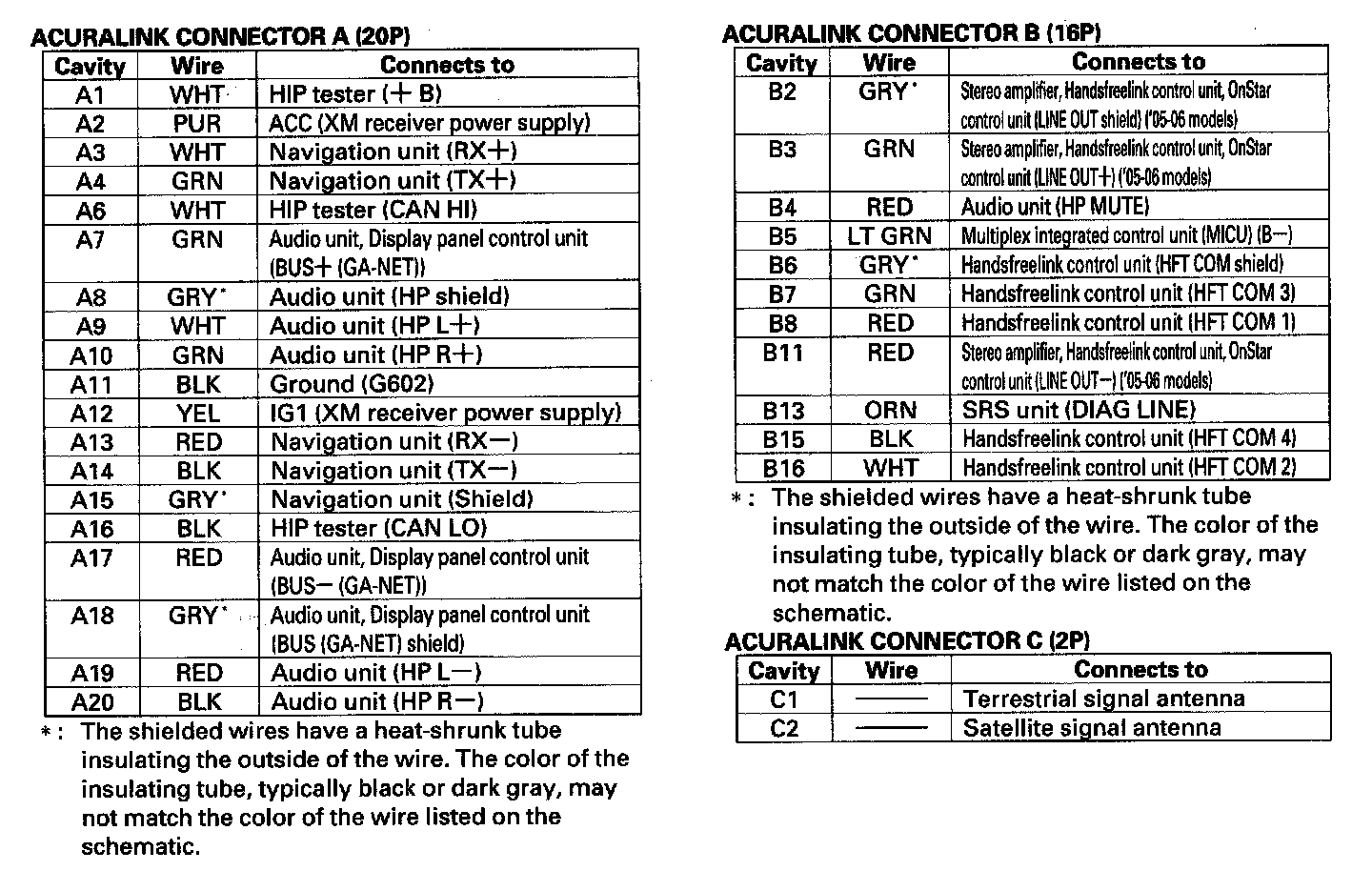

AcuraLink Control Unit (XM Receiver) Connector For Inputs And Outputs (With AcuraLink) Part 2:

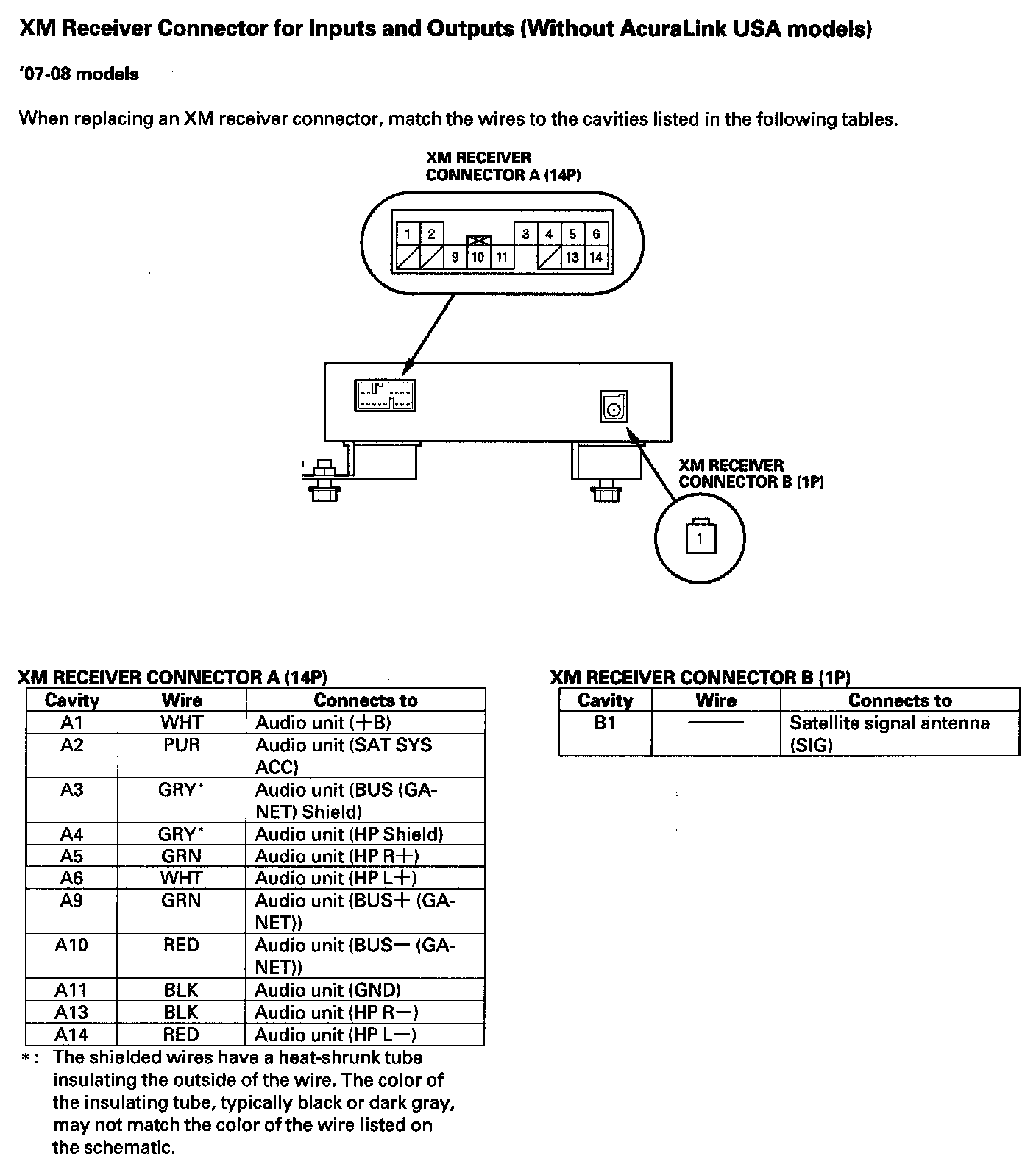

XM Receiver Connector For Inputs And Outputs (Without AcuraLink USA Models):

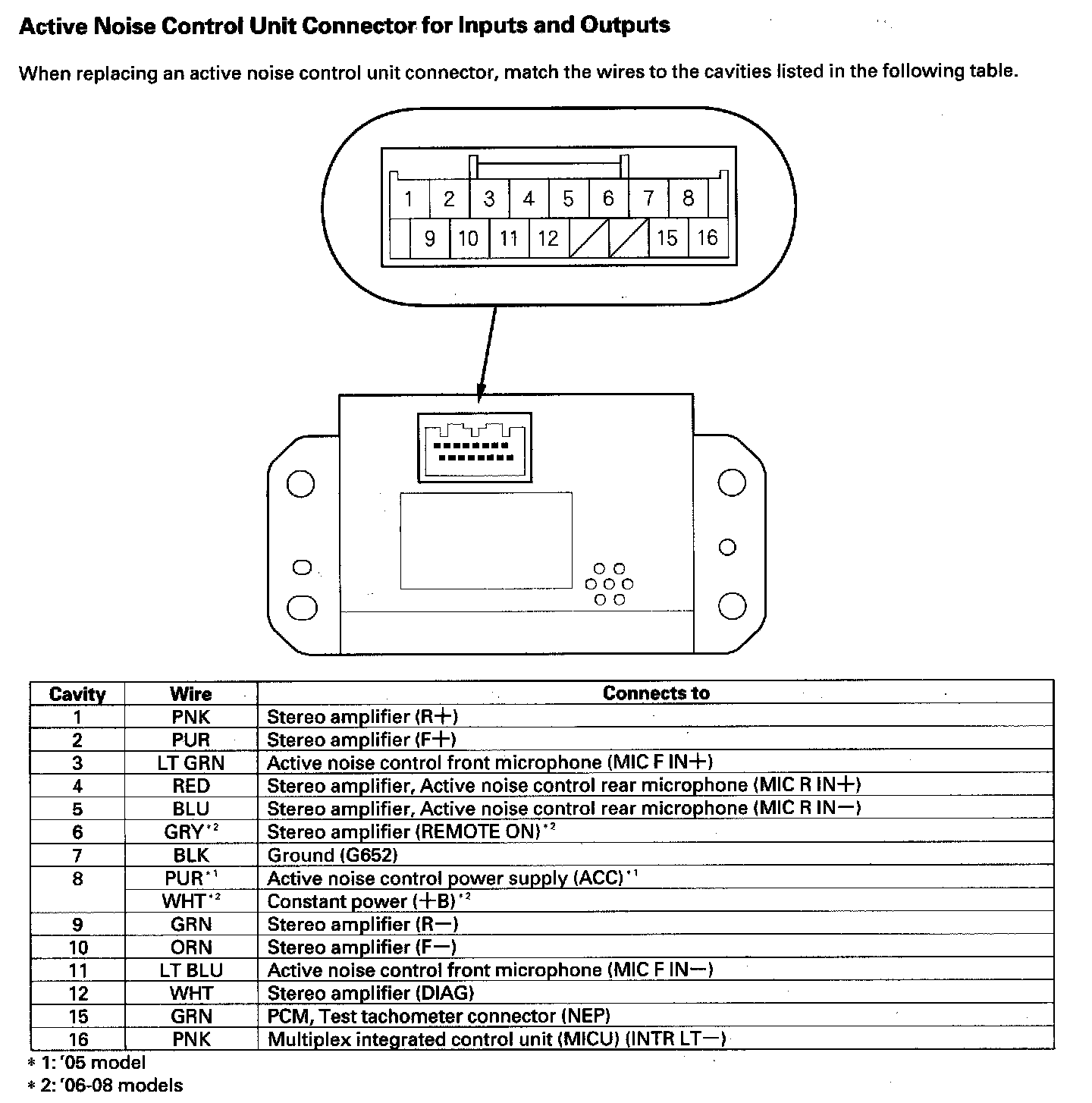

Active Noise Control Unit Connector For Inputs And Outputs:

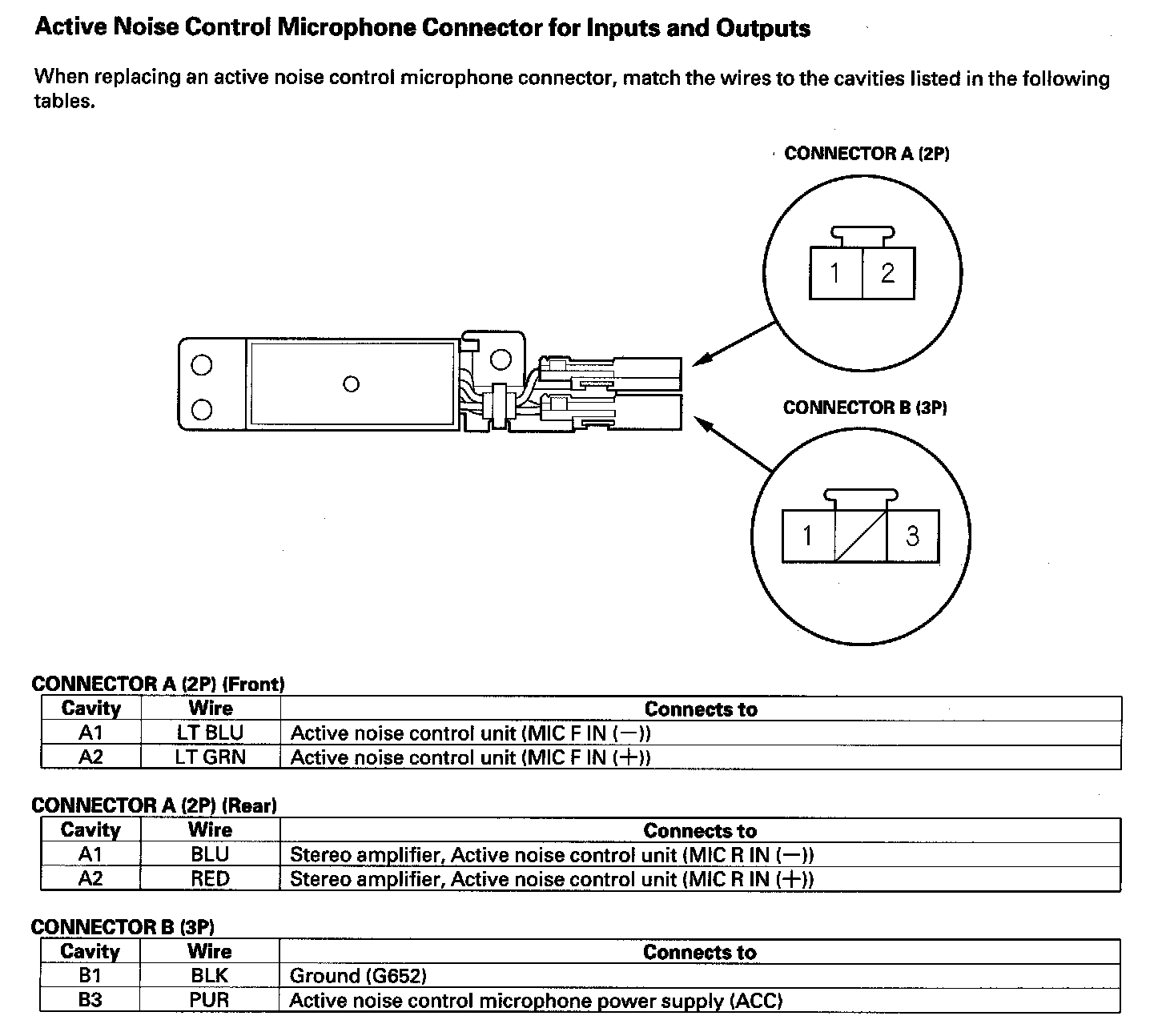

Active Noise Control Microphone Connector For Inputs And Outputs:

Audio-HVAC Subdisplay Unit Connector For Inputs And Outputs:

271. Audio-HVAC Sub Display-Clock:

394. Active Noise Control Front Microphone:

395. Active Noise Control Rear Microphone:

400. AcuraLink Reprogramming Connector (C617) (USA: Technology Package):

408. XM Receiver (USA: Base):

419. AcuraLink Control Unit (XM Receiver) (USA: Technology Package):

427. Audio Unit:
