HID Unit Replacement
HID Unit Replacement1. Make sure you have the anti-theft codes for the audio system and navigation system (if equipped). Make sure the ignition switch is OFF.
2. Turn the combination light switch OFF.
3. Disconnect the negative battery cable.
4. Remove the headlight assembly.
5. Remove the bulb socket from the HID bulb.

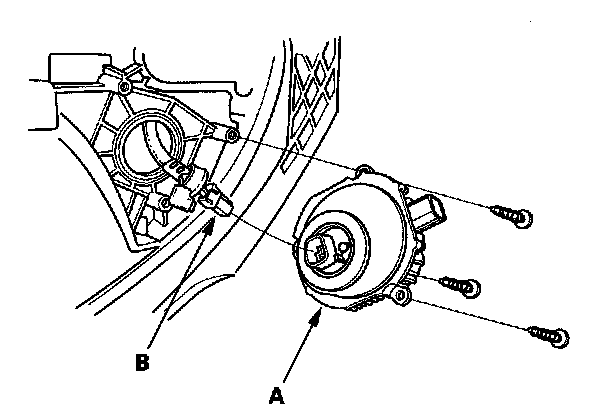

6. Remove the three mounting screws and the HID unit (A).
7. Disconnect the 4P connector (B) from the HID unit.
8. Inspect the gasket for damage. If damaged, replace it.
9. Install in the reverse order of removal.
10. Connect the negative cable to the battery.
11. Do the steering column position memorization.
12. Enter the anti-theft codes for audio system and navigation system (if equipped), and set the clock.
