Antenna Control Module: Service and Repair
XM Antenna Module Replacement 1.
Remove the high mount brake light.
2.

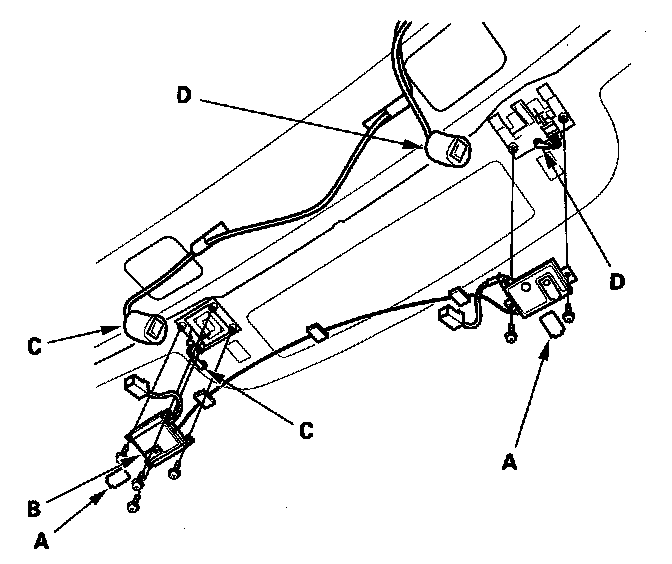

Remove the cover (A) from the satellite signal XM antenna module (B), then disconnect the satellite signal feeder connectors (C) and terrestrial signal feeder connectors (D).
3.
Remove the screws and the XM antenna module.
4.
Install the unit in the reverse order of removal.
