Removal and Replacement
Starter Removal and InstallationRemoval
1. Make sure you have the anti-theft codes for the audio system and navigation system. Make sure the ignition switch is OFF.
2. Remove the battery trim.
3. Disconnect the negative cable from the battery.

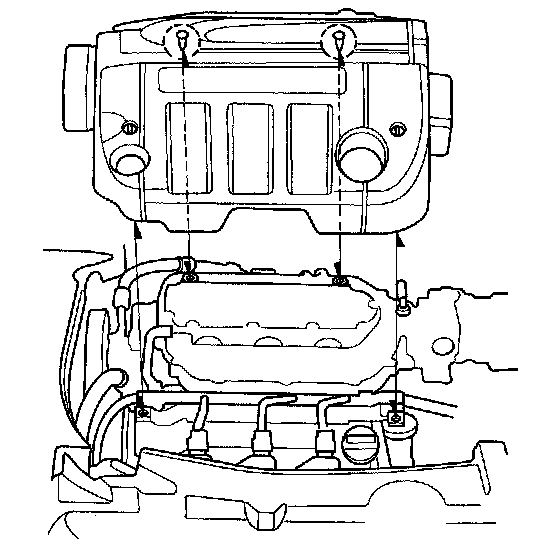

4. Remove the engine cover.

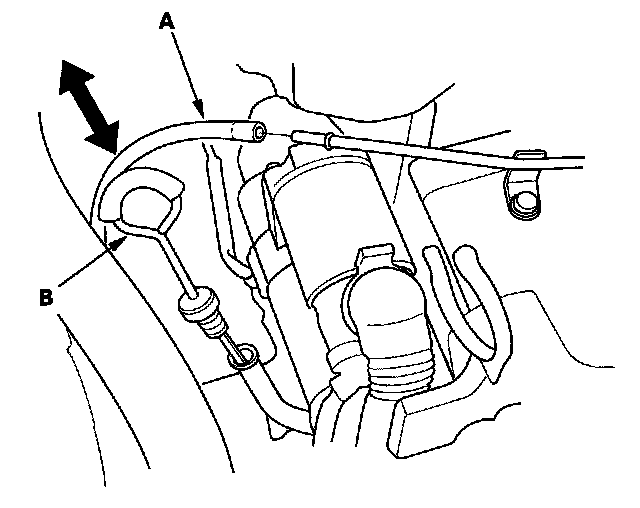

5. Remove the vacuum hose (A) and transmission dipstick (B).

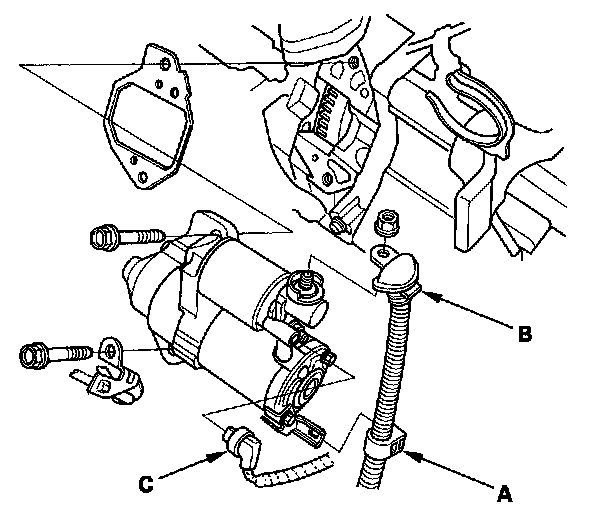

6. Remove the harness clamp (A).
7. Disconnect the starter cable (B) from the B terminal, then disconnect the BLK/WHT wire (C) from the S terminal.
8. Remove the two bolts holding the starter, then remove the starter.
Installation

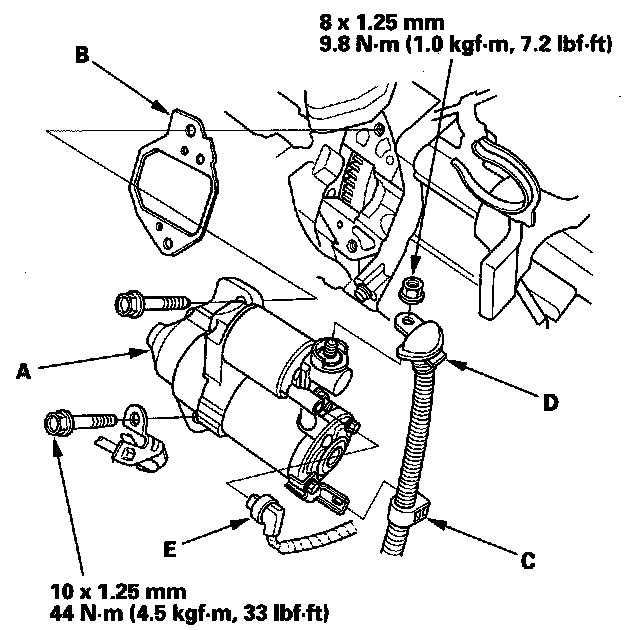

1. Install the starter (A) using a new gasket (B), then install the harness clamp (C), and connect the B terminal (D) and BLK/WHT wire (E). Make sure the crimped side of the B terminal faces away from the starter when you connect it.

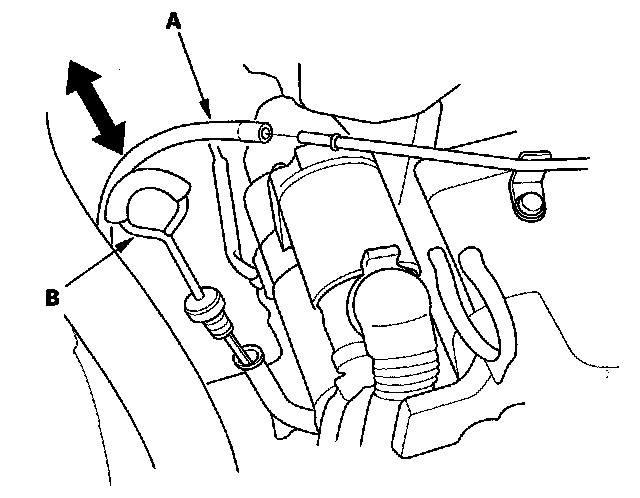

2. Install the vacuum hose (A) and transmission dipstick (B).

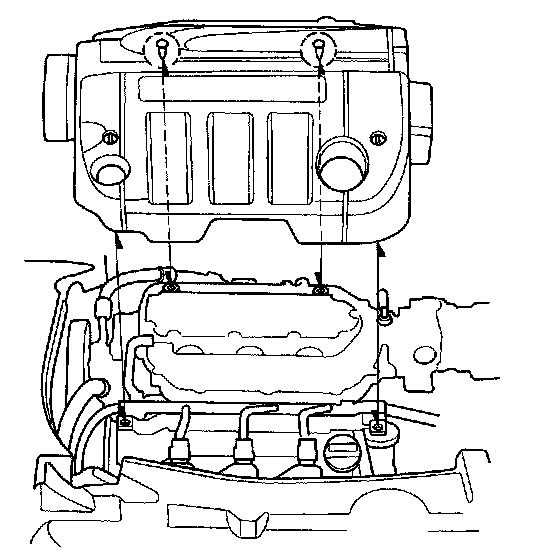

3. Install the engine cover.
4. Connect the negative cable to the battery.
5. Install the battery trim.
6. Start the engine to make sure the starter works properly.
7. Do the steering column position memorization procedure.
8. Enter the anti-theft codes for the audio system and the navigation system.
